Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Main Module | 5SHY3545L0009 |
| Order Number | 3BHB013085R0001 |
| Gate Driver Part No. | 3BHE009681R0101 |
| Driver Designation | GVC750BE101 |
| Product Type | Integrated Gate-Commutated Thyristor (IGCT) Module |
| Semiconductor Technology | IGCT |
| Repetitive Peak Blocking Voltage | 4,500 V |
| Average On-State Current | 3,545 A |
| Surge Current | Up to 70,000 A |
| Junction Temperature | -40 °C to +125 °C |
| Cooling Method | Air-cooled or Liquid-cooled (equipment dependent) |
Product Introduction
The ABB 5SHY3545L0009 is an OEM Integrated Gate-Commutated Thyristor (IGCT) power module designed for medium-voltage drives, static VAR compensators (STATCOM), excitation systems, and other high-power converter applications. The associated part numbers 3BHB013085R0001, 3BHE009681R0101, and GVC750BE101 identify the complete semiconductor assembly and matching gate driver interface.
IGCT technology combines the low conduction losses of conventional thyristors with the fast switching performance required for modern power converters. Because these assemblies operate in critical power electronics, many facilities maintain spare modules to minimize downtime after semiconductor failures.

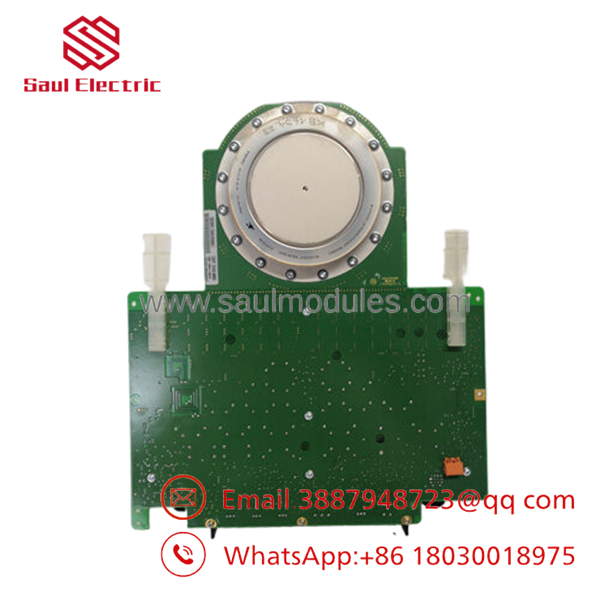

- 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

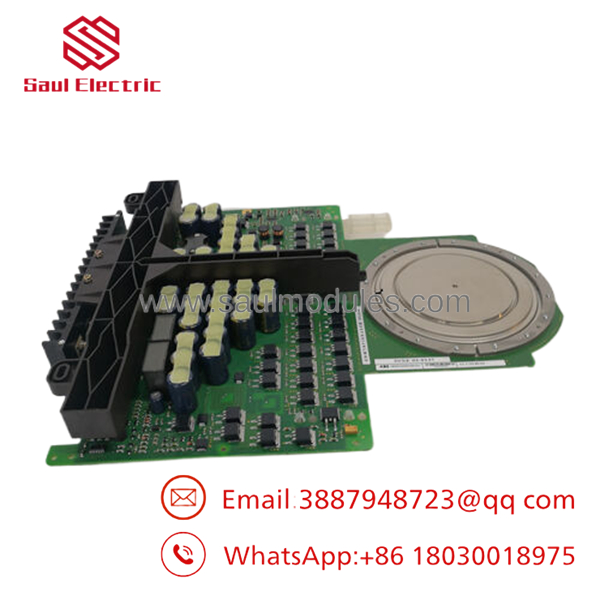

- 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Converter reports IGCT fault | Failed IGCT module | ✅ High | Read converter diagnostics and fault history | Verify semiconductor before replacement |
| Gate driver alarm | GVC750BE101 malfunction | ✅ High | Measure 24 V DC driver supply and gate pulse output | Test the gate driver before replacing the IGCT |
| DC bus short circuit | Internal semiconductor short | ✅ High | Perform insulation and diode tests with power removed | Replace the IGCT module if confirmed defective |
| Phase output missing | Gate pulse loss or failed IGCT | ✅ High | Compare gate signals on all phases using an oscilloscope | Inspect both the module and gate driver |
| High heatsink temperature | Cooling system failure | ⚠️ Medium | Check fan operation, coolant flow, and thermal compound | Restore cooling before installing a new module |
| Converter trips under load | Snubber or gate driver fault | ⚠️ Medium | Inspect snubber network and trigger timing | Eliminate external causes before replacing the IGCT |
Service Note
IGCT modules are among the most expensive components in a medium-voltage converter. In many field failures, the semiconductor itself is still functional.
Before replacement:
- Verify the 24 V DC gate driver supply.
- Inspect fiber-optic communication to the GVC750BE101.
- Measure snubber capacitors and discharge resistors.
- Check heatsink flatness and apply fresh thermal compound.
- Tighten power terminals using the specified torque values.
❗ Veteran Tip: The most common rookie mistake is replacing the IGCT without testing the gate driver. A defective driver can destroy a new module immediately after startup. Test both components as a matched pair.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 5SHY3545L0009 used for?
The 5SHY3545L0009 is an ABB IGCT power semiconductor module used in medium-voltage variable frequency drives, excitation systems, FACTS equipment, and other high-power industrial converters where high current and high blocking voltage are required.
Q2. What do 3BHB013085R0001, 3BHE009681R0101, and represent?
These ABB numbers identify related components within the IGCT assembly:
- 3BHB013085R0001 – Order/assembly number for the IGCT module
- 3BHE009681R0101 – Gate driver board part number
- – Gate driver designation used with the IGCT assembly
Purchasing departments frequently reference all four numbers together to ensure compatibility.
Q3. Can I replace only the IGCT without changing the gate driver?
Sometimes, but it depends on the failure.
If the converter experienced a major short circuit or gate driver fault, inspect and electrically test the before reusing it. Installing a new IGCT with a damaged gate driver can result in immediate failure.
Q4. Is this module hot-swappable?
No.
Always isolate incoming power, discharge the DC-link capacitors, and verify zero voltage before servicing. Medium-voltage converters can retain dangerous stored energy long after shutdown.
Q5. Why is thermal installation so critical?
IGCT modules dissipate substantial power during operation. Uneven heatsink surfaces, incorrect mounting torque, or insufficient thermal compound can increase junction temperature and significantly shorten service life.
Q6. Why is New Surplus inventory a preferred option?
New Surplus modules are genuine ABB components that have never been installed but originate from excess inventory rather than current production. They provide OEM quality while supporting long-term maintenance of legacy converter systems.
Q7. What should I verify before ordering?
Confirm every identification number on the existing assembly:
- IGCT Module: 5SHY3545L0009
- Order Number: 3BHB013085R0001
- Gate Driver Board: 3BHE009681R0101
- Driver Model:
Also verify the converter model, cooling configuration, and hardware revision to ensure the replacement matches your installed equipment.
