ABB 5SHY3545L0010 3BHB013088R0001 IGCT Power Module

Description

Product Introduction

The ABB 5SHY3545L0010 (3BHB013088R0001) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module engineered for ABB medium-voltage variable frequency drives and industrial power converters. Installed within the converter power stack, it performs high-speed switching of extremely large currents while maintaining low conduction losses for megawatt-class motor applications.

Unlike conventional low-voltage IGBT modules, this IGCT is intended for high-energy converter topologies where switching performance, thermal management, and reliability directly affect plant uptime. Verify the converter model, gate-drive assembly, cooling configuration, and approved ABB spare parts list before installation.

Key Technical Specifications

*Current capability depends on converter design, cooling conditions, and ABB application documentation. Always verify the exact ratings for the installed equipment.

Application Scenarios & The “Trench” Experience

Here’s something that surprises engineers who don’t regularly work on medium-voltage drives.

The converter trips with a power-stage alarm. One IGCT tests shorted, so it’s replaced immediately. The converter starts, reaches operating speed, and fails again within minutes.

The semiconductor wasn’t the original problem.

The cooling system had gradually lost efficiency because scale buildup reduced water flow through one cooling plate.

That’s an expensive lesson.

Typical Applications

Mining — Conveyor and hoist drives — Handles continuous megawatt-level motor control with frequent load changes.

Power Generation — Boiler feed pumps and ID fans — Performs high-energy switching in critical auxiliary drive systems.

Oil & Gas — Compressor trains — Supports continuous-duty medium-voltage motor control under demanding process conditions.

Metals Industry — Rolling mills — Withstands repetitive acceleration, regenerative braking, and high transient currents.

Marine & Heavy Industry — Propulsion and large pump systems — Provides dependable power switching for medium-voltage converters.

Field Case Study

During a scheduled outage at a mining operation, an ABB medium-voltage drive repeatedly reported converter faults on one phase. Thermal imaging revealed one power semiconductor operating significantly hotter than adjacent devices.

Instead of replacing only the 5SHY3545L0010, technicians flushed the cooling circuit, inspected the gate-driver unit, renewed the thermal interface material, verified clamping force, and checked busbar torque. After commissioning, the converter returned to continuous operation without additional semiconductor failures.

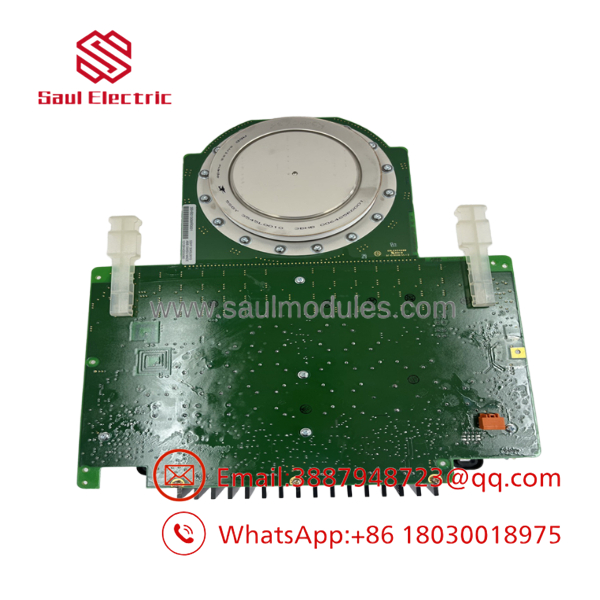

5SHY3545L0010 3BHB013088R0001

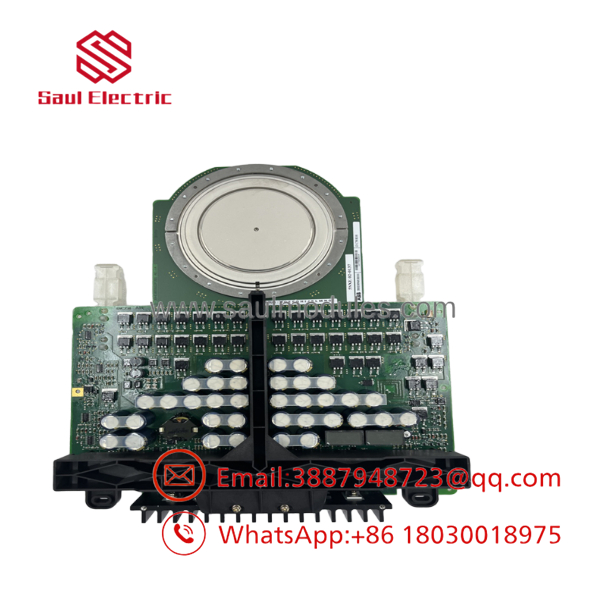

5SHY3545L0010 3BHB013088R0001

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB medium-voltage converter platforms whenever practical.

• Inbound Inspection
  • Verify ABB identification labels.
  • Inspect ceramic package and pressure-contact surfaces.
  • Check for shipping damage, cracks, and installation marks.
• Live Rig Testing
  • Verify compatibility with the intended gate-drive assembly.
  • Inspect optical trigger interface.
  • Confirm mechanical fit before shipment.
• Electrical Parameter Checks
  • Insulation resistance testing.
  • Contact surface inspection.
  • Terminal continuity verification.
  • Visual inspection for thermal discoloration.
• Identification Verification
  • Record ABB Product ID.
  • Verify hardware identification.
  • Cross-reference the requested converter model.
• Final QC & Packaging
  • Final inspection.
  • Anti-static protection.
  • Moisture-barrier packaging.
  • Shock-resistant export packaging.

The Veteran’s Tech Trap Guide

⚠️ Don’t assume the IGCT failed first.

In our field experience, restricted cooling water, failed gate-driver electronics, or excessive DC bus transients often damage the semiconductor. Find the root cause before installing a replacement.

⚠️ Replace the thermal interface material every time.

Old thermal compound creates uneven heat transfer. The converter may pass commissioning but develop hot spots under full production load.

❗ Follow ABB’s clamping procedure exactly.

Press-pack IGCTs depend on uniform mechanical pressure. Incorrect torque or tightening sequence changes thermal resistance and shortens device life.

⚠️ Inspect the gate-driver before applying DC bus voltage.

A damaged fiber-optic trigger or gate-drive board can destroy a new IGCT in milliseconds. Verify gate signals before energizing the converter.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 5SHY3545L0010 (3BHB013088R0001)?

It is a high-power Integrated Gate-Commutated Thyristor (IGCT) used as the primary switching device in ABB medium-voltage drives and industrial power converters.

Q2. Which ABB systems typically use this module?

It is widely associated with ABB ACS6000 medium-voltage drive systems and other ABB converter platforms using 5SHY-series IGCT technology. Always verify the complete converter serial number and spare parts documentation before ordering.

Q3. Can the module be replaced while the converter remains energized?

No.

The converter must be completely isolated, discharged, grounded, and verified safe. Medium-voltage DC buses can retain hazardous stored energy long after incoming power has been removed.

Q4. Does replacing the IGCT require firmware updates?

Generally, no. However, ABB recommends verifying converter diagnostics, gate-driver synchronization, cooling performance, insulation resistance, and commissioning results before returning the equipment to service.

Q5. Why is an IGCT more expensive than a conventional IGBT?

IGCT devices are designed for megawatt-class medium-voltage applications. Their voltage capability, current handling, press-pack construction, and thermal performance are substantially beyond those of standard low-voltage IGBT modules.

Q6. What warranty is typically available?

Most professional industrial surplus suppliers provide a 12-month warranty covering functional defects after installation. Warranty terms vary by supplier.

Q7. What should be verified before ordering?

Confirm all of the following:

• ABB Product ID: 3BHB013088R0001
• ABB Type Designation: 5SHY3545L0010
• Converter model and serial number
• Hardware revision
• Gate-driver compatibility
• Cooling assembly configuration
• Official ABB spare parts documentation

Finally, compare the installed semiconductor with the converter’s OEM spare parts list before installation. In medium-voltage power electronics, an incorrect IGCT can delay production far longer than the original repair.
