Description
Product Introduction & Engineering Value
High-power medium-voltage drives like the ABB ACS 6000 demand extreme switching speed paired with thyristor-grade conduction efficiency. The ABB 5SHY4045L0001 (3BHB018162R0001) combines a GTO structure with a low-inductance, hard-driven gate circuit, allowing full cathode bypass prior to blocking voltage rise. This eliminates standard snubber network requirements and drastically cuts dynamic losses by nearly 50% compared to legacy architectures.
In heavy industrial operations—where unplanned inverter downtime incurs massive hourly losses—the 5SHY4045L0001 provides rugged current handling and high electromagnetic immunity. Designed as a core component for Power Electronic Building Blocks (PEBB), this IGCT ensures precise energy control, low total harmonic distortion, and long-term thermal stability under harsh operational stress.
Technical Specifications
- Repetitive Peak Off-State Voltage (V_{DRM}): 4500 V
- Max Commutatable Controllable Current (I_{TGQM}): Approx. 4000 A
- Silicon Wafer Diameter: 91 mm press-pack design
- Gate Drive Interface: Integrated PCB gate driver board via coaxial gate connection
- Semiconductor Topology: Asymmetric Integrated Gate-Commutated Thyristor (Asymmetric IGCT)
- Switching Frequency Capabilities: Optimized for high-frequency pulse-width modulation (< 1 kHz)
- Operating Supply: Optical/fiber-logic control input with local AC/DC gate power supply rail
- Cooling Requirement: Double-sided water-cooled or heavy-duty heatsink press-pack clamping
- Module Weight: 3.0 kg (approx. 4.0 kg shipping package)
Field Application & The “Trench” Experience
During a planned overhaul at a marine container terminal, a 12 MW propulsion drive tripped repeatedly on DC-link overcurrent. Diagnostic traces logged a gate-driver voltage drop on a single phase-leg PEBB, leading to unsymmetrical conduction in the 3-level VSI topology. The culprit: thermal cycling had degraded the internal gate connection on a legacy IGCT module.
Replacing the suspect unit with a fresh 5SHY4045L0001 restored balance immediately. Torque ripple dropped back below 0.5%, and the vessel cleared harbor trials on schedule.
Critical Application Scenarios:
- Marine Azimuth Thruster Propulsion: Handles high torque demands and aggressive reversing loads in dual-fed medium-voltage propulsion inverters.
- Rolling Mill Main Drives: Delivers rapid dynamic torque response during heavy steel slab impact without triggering overcurrent trips.
- STATCOM Grid Stabilization Systems: Controls reactive power compensation on high-voltage utility grids with high switching reliability.
Transparency SOP: QA & Testing
- Visual & Package Integrity Inspection: We inspect the hermetic press-pack housing, ceramic body, gate connector pins, and housing plating for microscopic scratches or contamination.
- Static Off-State & Leakage Testing: High-voltage insulation testing at 4500 V verifies that leakage current stays well below OEM maximum thresholds.
- Dynamic Gate Drive Logic Test: Power is applied to the integrated gate board, confirming optical signal reception, gate voltage levels, and status feedback responses.
- Thermal & Clamping Load Verification: Press-pack stack mounting torque is validated using calibrated load cells to guarantee proper internal electrical contact and thermal transfer.

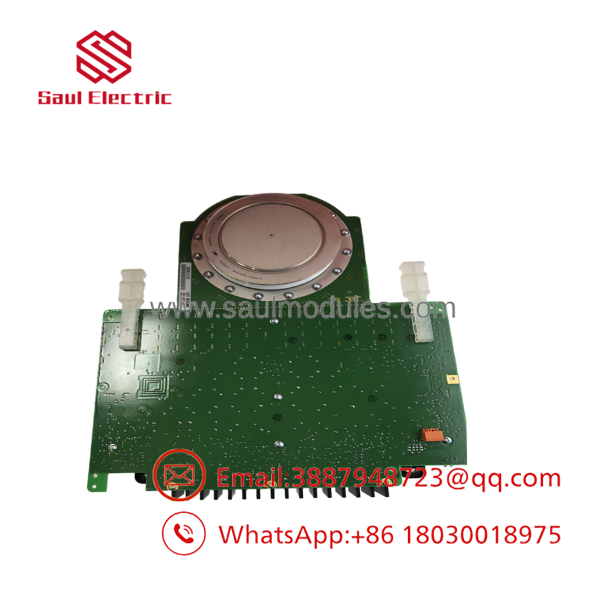

- 5SHY4045L0001 3BHB018162R0001

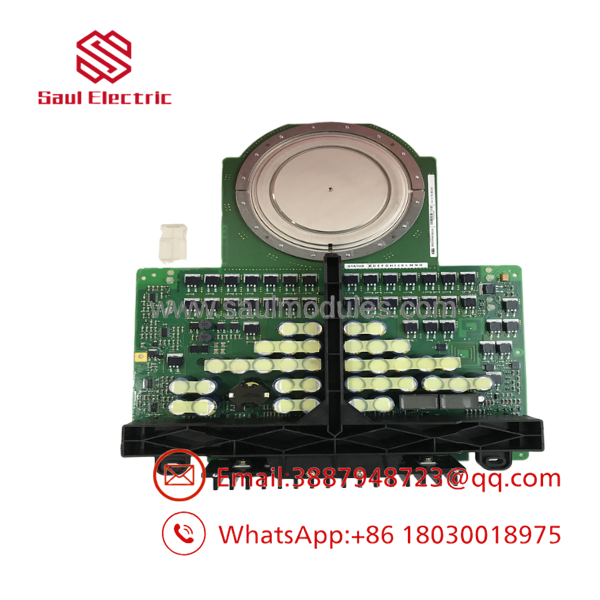

- 5SHY4045L0001 3BHB018162R0001
The Veteran’s Tech Trap Guide
- ⚠️ Mismatched Clamping Force: IGCT press-packs require precise, even force across the ceramic housing. Over-torquing crushes the internal silicon wafer; under-torquing causes uneven current density and localized hot spots that destroy the semiconductor instantly.
- PRO TIP: Always use a calibrated torque wrench and follow ABB’s clamping sequence specifications to the exact Kilonewton (kN) rating.
- ⚠️ Fiber-Optic Cleanliness: The gate unit receives switching commands via optical fibers. Dust, oil, or micro-scratches on the fiber tips cause command latency or dropouts, leading to misfires across the 3-level VSI phase leg.
- ⚠️ Discharge Time: Never attempt to touch or unclamp the 5SHY4045L0001 immediately after removing drive power. Medium-voltage DC-link capacitors hold dangerous energy for several minutes. Verify 0 V with a high-voltage probe before touching the PEBB stack.
Dynamic FAQ
Q: Is the 5SHY4045L0001 supplied as a complete assembly with the gate drive board included?
A: Yes, the 5SHY4045L0001 (3BHB018162R0001) is an integrated device featuring the silicon wafer press-pack combined directly with its matched, low-inductance gate drive circuit board.
Q: How do I confirm if my unit is “New Surplus” versus a pulled or refurbished module?
A: Our New Surplus units retain factory protective covers, zero clamping contact marks on the copper pole faces, clean optical ports, and original serial number tags matching ABB tracking logs.
Q: What warranty coverage comes with this module?
A: Every 5SHY4045L0001 provided comes with a full 12-month operational warranty covering manufacturing defects and operational failures under normal parameters.
Q: Can I drop a 5SHY4045L0001 directly into an older ACS 6000 phase module?
A: Generally yes, provided the drive series uses the same PEBB design. However, always check the sub-revision numbers and system firmware release notes to ensure full gate signal compatibility.
