Description
Product Introduction & Engineering Value
The ABB 3BHB021400R0002 (type designation 5SHY4045L0004) combines a wafer-level GCT device with an integrated low-inductance gate unit in a single hermetically sealed disc assembly. Engineered specifically for ABB’s ACS 6000 medium-voltage drive family, this IGCT module acts as the primary switching device in high-power Phase Modules (PEBBs).
Operating with minimal conduction losses, it enables hard-switching operations without requiring heavy snubber circuits. Utilizing low-loss switching technology allows drive system designers to achieve high power density in compact cabinet footprints. When replacing an aged module, matching the exact 5SHY4045L0004 revision prevents gate driver timing mismatches and ensures identical thermal dissipation across the stack assembly.
Technical Specifications
- ABB Order Code: 3BHB021400R0002
- Type Designation: 5SHY4045L0004
- Device Class: Asymmetric Integrated Gate-Commutated Thyristor (A-IGCT)
- Peak Repetitive Off-State Voltage (V_{DRM}): 4500 V
- Controllable Turn-Off Current (I_{TGQM}): Up to 4000 A
- Gate Unit Communication: Optical Fiber (Fiber-Optic Control Interface)
- Gate Unit Power Supply: Auxiliary DC Board Link (integrated on perimeter)
- Cooling Method: Double-sided press-pack liquid/water cooling interface
- Mechanical Structure: Press-pack wafer capsule with perimeter PCB gate driver
- Module Dimensions: ~130 mm x 100 mm x 320 mm
- Unit Weight: ~2.7 kg (5.9 lbs)

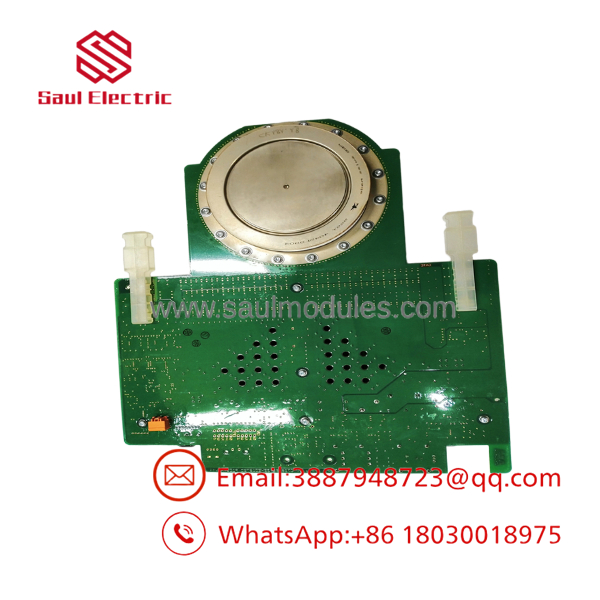

- 5SHY4045L0004 3BHB021400R0002

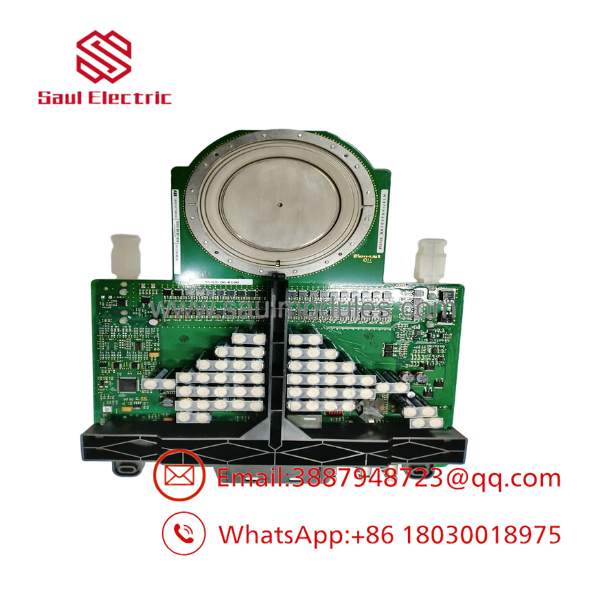

- 5SHY4045L0004 3BHB021400R0002
Field Application & The “Trench” Experience
The Field Story
A hot-strip steel rolling mill experienced recurrent overcurrent trips on dynamic reverse braking passes of its main motor drive. Diagnostics pinpointed localized thermal runaway in one leg of the inverter bridge. Upon opening the ACS 6000 Phase Module stack, technicians discovered that an aging 5SHY4045L0004 IGCT was exhibiting gate driver voltage drop during high-frequency pulse bursts. Replacing the failed semiconductor disc with a verified 3BHB021400R0002 unit restored proper gate charge delivery and allowed the mill to return to full production duty within 4 hours.
Niche Application Scenarios
- Metal Rolling Mill Main Drives: High-torque, reversing medium-voltage drive control in heavy steel and aluminum hot mills.
- Mine Hoist Inverters: Precision speed and position control for multi-megawatt winding drums operating in cyclic hoist profiles.
- Large Marine Propulsion Inverters: Direct-drive electric pod propulsion systems requiring low harmonic footprint and compact converter volume.
Transparency SOP: QA & Testing
Our quality engineering team Subjects every 3BHB021400R0002 / 5SHY4045L0004 module to a structured, four-phase verification SOP before warehouse stocking:
- Press-Pack Surface & Hermetic Seal Check: High-magnification visual inspection of the copper pole piece contact surfaces to confirm flat, pit-free interfaces for optimal thermal conduction.
- Gate Board Capacitance Analysis: Inspection and measurement of the integrated gate unit’s electrolytic capacitor array and switching MOSFETs to confirm gate discharge impedance meets factory parameters.
- Fiber-Optic Pulse Verification: Powering the gate board auxiliary rails and sending test optical pulse trains to verify switching response time and status feedback signaling.
- Static Blocking Voltage Test: Applying high voltage under leakage-current supervision to confirm off-state voltage hold capability.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: Precise Clamping Force Required! IGCT press-pack capsules rely on exact mechanical pressure to achieve proper electrical and thermal contact. Never tighten stack bolts by hand or feel; always use a calibrated torque wrench or hydraulic press fixture set strictly to ABB’s stack force specification (kN). Under-clamping causes localized hot spots; over-clamping cracks the internal silicon wafer.
- PRO TIP: Inspect Thermal Interface Compound. When reassembling the stack, clean the cooling plates completely with isopropyl alcohol. Apply a thin, uniform layer of high-conductivity thermal grease—or use factory thermal foils—without leaving air pockets or dust contamination.
- PRO TIP: Auxiliary Power Cable Strain Relief. Ensure the incoming power wiring and fiber optic links to the integrated gate ring board are secured without tension. Cable stress under high-vibration conditions can break solder joints on the ring board power header.
Dynamic FAQ
Q: What is the main difference between an IGBT module and this 5SHY4045L0004 IGCT module?
A: An IGCT (Integrated Gate-Commutated Thyristor) combines low on-state conduction losses of a thyristor with the controllable fast turn-off behavior of an IGBT. It uses an integrated gate circuit to drive the device into full gate commutation rapidly, enabling higher power handling in medium-voltage drives with lower overall semiconductor losses.
Q: Can I replace a single 5SHY4045L0004 in a multi-device stack or must I replace the full set?
A: You can replace an individual device, provided the replacement matches the exact part number (3BHB021400R0002) and parameter rating. However, always inspect companion free-wheeling diodes (FRDs) in the same phase leg for thermal stress when an IGCT fails.
Q: Does this module require external gate driver boards?
A: No. The 5SHY4045L0004 features an integrated gate unit board attached directly to the wafer housing ring. You only connect fiber optic signal lines and auxiliary DC power directly to the module.
Q: What condition are these units supplied in, and what is the standard warranty?
A: We offer New Surplus and fully reconditioned, tested replacement units. All modules include a 12-month operational warranty backed by our complete bench testing protocol.
