Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 70EA05A-E |
| Alternate Part Number | HESG447419R0001 |
| Product Type | Analog Input Module |
| System Platform | ABB Procontrol P13 DCS |
| Input Channels | 8 Isolated Analog Inputs |
| Supported Signals | Voltage, Current, RTD, Thermocouple |
| A/D Resolution | 16-bit |
| Channel Isolation | 500 V Channel-to-Channel |
| Operating Temperature | -25 °C to +70 °C |
| Mounting | Procontrol P13 Rack |
| Approximate Weight | 0.5 kg |
Product Introduction
The ABB 70EA05A-E (HESG447419R0001) is an OEM analog input module designed for the ABB Procontrol P13 Distributed Control System (DCS). It converts analog process signals from transmitters, RTDs, thermocouples, and other field instruments into high-resolution digital data for process monitoring and control.
Featuring eight isolated input channels and 16-bit analog conversion, the module delivers accurate signal acquisition in demanding industrial environments such as power generation, chemical processing, and water treatment. Since the Procontrol P13 platform is a legacy system, New Surplus inventory remains a preferred solution for long-term maintenance and spare parts planning.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All analog channels unavailable | Module power or internal fault | ✅ High | Verify rack power and module status LEDs | Restore power or replace module if necessary |
| One channel reads zero continuously | Open transmitter loop | ❌ Low | Measure the signal directly at the input terminals | Inspect field wiring before replacing the module |
| Analog values fluctuate | Electrical noise or grounding issue | ⚠️ Medium | Check shield grounding and cable routing | Correct grounding and retest |
| Module not recognized by DCS | Rack communication issue | ✅ High | Inspect backplane connector and module seating | Reseat the module and verify rack communication |
| RTD or thermocouple readings incorrect | Wrong input configuration | ⚠️ Medium | Verify channel configuration against sensor type | Correct configuration before replacing hardware |
| Channel diagnostics indicate failure | Internal A/D circuit fault | ✅ High | Inject a calibrated reference signal into the affected channel | Replace the module if the fault is repeatable |
Service Note
Most reported analog input faults are caused by field devices rather than the module itself.
Before replacing the 70EA05A-E:
- Measure the transmitter output using a calibrated multimeter.
- Verify the rack power supply.
- Check backplane connector condition.
- Compare values with a portable process calibrator.
- Record the existing channel configuration.
A five-minute signal verification often prevents replacing a perfectly functional input card.

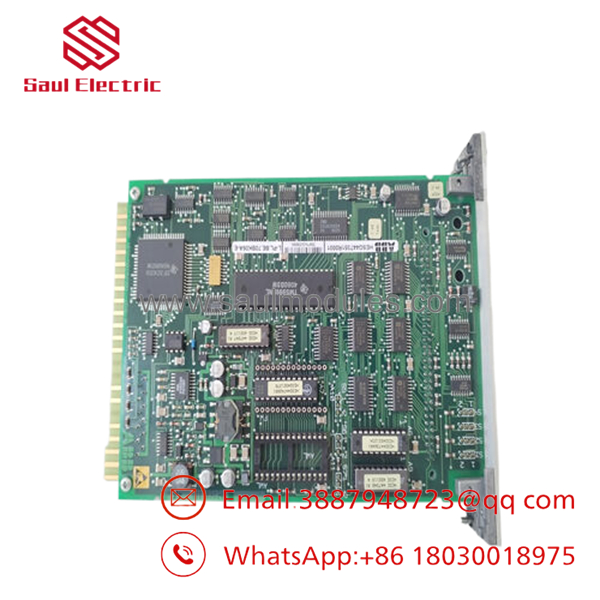

- 70EA05A-E

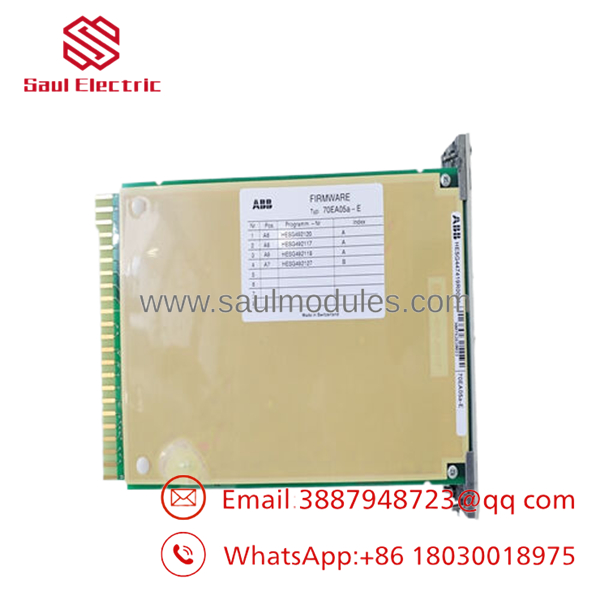

- 70EA05A-E
Frequently Asked Questions (FAQ)
Q1. What is the ABB 70EA05A-E used for?
The 70EA05A-E is an analog input module for the ABB Procontrol P13 DCS. It acquires voltage, current, RTD, and thermocouple signals from field instruments and transfers them to the control processor for monitoring and process control.
Q2. Which signal types are supported?
The module supports multiple industrial analog inputs, including:
- 0–10 V
- ±10 V
- 4–20 mA
- 0–20 mA
- RTD (Pt100)
- Thermocouple inputs
Its flexible configuration allows one module to support a variety of instrumentation.
Q3. Can I replace the module without modifying the DCS configuration?
In most cases, yes.
If the replacement module has the same part number and hardware revision, configuration changes are generally unnecessary. However, always verify channel settings and perform an input calibration check after installation.
Q4. Is the 70EA05A-E still manufactured?
No.
The Procontrol P13 platform is considered a legacy ABB control system. Most available modules are supplied as New Surplus or professionally refurbished inventory.
Q5. Does the module provide channel isolation?
Yes.
Each analog channel is electrically isolated, helping reduce noise, improve measurement accuracy, and protect the DCS from ground-loop interference in industrial environments.
Q6. Why do many facilities purchase New Surplus modules?
New Surplus modules are genuine ABB products that have never been installed but originate from excess inventory rather than current production. They provide OEM reliability while extending the service life of legacy Procontrol P13 systems.
Q7. What should I verify before ordering?
Confirm the following:
- Model: 70EA05A-E
- Part Number: HESG447419R0001
- Control Platform: ABB Procontrol P13
- Hardware revision
- Required input signal types
- Rack compatibility and existing configuration
Matching both the model number and part number helps ensure a direct replacement with minimal commissioning time.
