Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ABB |
| Part Number | HESG447220R4 |
| Model Designation | 70EB02C-ES |
| System Family | PROCONTROL P13 / PROCONTROL PS |
| Input Channels | 16 Independent Binary Inputs |
| Telegram Processing | One data telegram per module |
| Addressing Constraint | Direct mapping (Must utilize even-numbered rack addresses) |
| Rack Space Requirement | 2 divisions (slots) |
| Communication Interfaces | 1x SS Standard (Station Bus), 1x SEA Standard (PROCONTROL-PS Bus) |
| Operating Logic Voltage | 24 V DC internal generation |
| Diagnostics Capability | Local status LEDs and remote diagnostic bus telegrams |
| Net Weight | 0.55 kg |
| Country of Origin | Switzerland / Sweden |
Product Introduction
The ABB 70EB02C-ES, bearing factory part number HESG447220R4, is a high-density binary input module designed specifically for the PROCONTROL P13 and PROCONTROL PS power plant automation and protection systems. This card isolates, conditions, and processes 16 discrete field inputs—such as limit switch operations, breaker statuses, and safety interlocks—converting them into a unified data telegram transmitted directly over the high-speed system bus.
Engineers select the 70EB02C-ES for critical utility infrastructure and heavy processing facilities because of its exceptional electrical noise immunity and deterministic signal response. Equipped with dual SS and SEA standard interfaces, it communicates seamlessly with the processing station bus, allowing the host control system to execute emergency interlocks and sub-millisecond trip sequences without latency.
Installation & Configuration Guide
1
Pre-Installation Preparation
Estimated time: 15 mins
1.Pre-Installation Preparation:Estimated time: 15 mins.
Notify and isolate. Coordinate directly with the power block operators to confirm the protection station loop can be brought into maintenance mode. Ensure that any voting logic or physical trip coils connected to this input path are safely bypassed or forced in software to prevent nuisance plant trips.
Isolate auxiliary control loop power. Equip your workspace with a grounded ESD wrist strap, an extraction tool or card puller, a Fluke 115 multimeter, and a smartphone. Connect the plant engineering workstation to the PROCONTROL bus via the PDDS (Program Documentation and Diagnostics System) tool to pull down a comprehensive diagnostic report of the active hardware station node before removing components.
2
Extracting the Failed Component
Estimated time: 5 mins
2.Extracting the Failed Component:Estimated time: 5 mins.
Attach your ESD wrist strap to an unpainted grounded spot on the rack frame. Identify the faulty module by its diagnostic fault LED. Take a smartphone photo of the front face arrangement for slot position reference.
If the board uses individual external connector blocks, unlatch and pull them smoothly down or out; do not pull on the wires directly. Release the top and bottom latching handles on the card front face. Use your card-puller tool to slide the 0.55 kg board straight forward along the rack guides, ensuring you don’t mar or torque adjacent protection boards. Place the board onto an static-dissipative ESD surface.
3
Installing the Replacement Module
Estimated time: 10 mins
3.Installing the Replacement Module:Estimated time: 10 mins.
Unpack the new 70EB02C-ES HESG447220R4 board inside an ESD-protected clean zone.
Addressing Rules (Critical): The PROCONTROL P station bus assigns network addresses based on physical rack location. The 70EB02C-ES requires 2 slots (divisions) of rack width and must only be installed into an even-numbered slot address. The architecture automatically captures the next adjacent higher (odd) address without any external wiring or switch modifications.
Carefully align the board edges with the top and bottom rack rails. Push the card straight back until the rear edge sockets sit flush into the backplane connectors. Lock the front face extraction handles back into their secured positions. Re-engage any external field wiring plugs.
Self-Checklist:
- [ ] The slot position is verified as an even-numbered rack address.
- [ ] The card is seated completely flush into the backplane frame.
- [ ] Front latching clips are closed completely to ground the front shield plate.
4
Power-On Diagnostic & Loop Binding
Estimated time: 15 mins
4.Power-On Diagnostic & Loop Binding:Estimated time: 15 mins.
Restore control bus power to the sub-rack assembly. Observe the front panel LEDs during the initialization phase. The local fault lamps should stay dark while the green system status lights illuminate.
Open the PDDS console to download the specific user parameter lists into the onboard EEPROM storage. Verify the board successfully builds a data telegram and communicates across the SS and SEA standard bus interfaces. Execute physical input tests on individual field contacts to verify that the binary statuses match the bit registers on the host HMI panel.

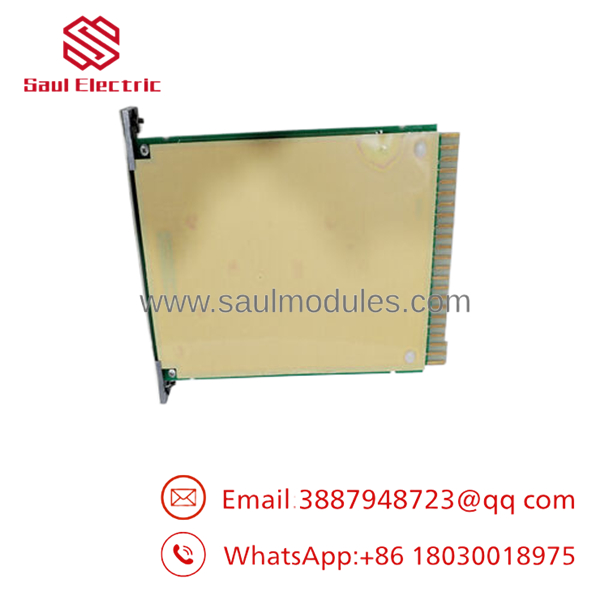

- 70EB02C-ES

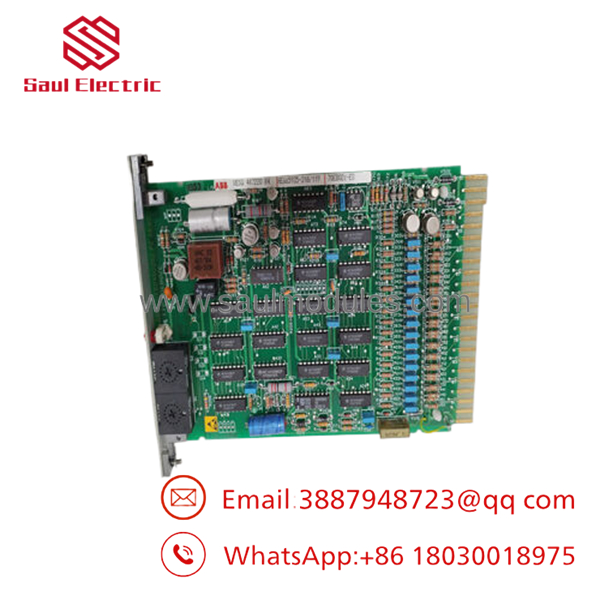

- 70EB02C-ES
Frequently Asked Questions (FAQ)
Q: Can the 70EB02C-ES be installed in any open slot within the PROCONTROL rack? A: No, it cannot. The internal addressing logic of the PROCONTROL station bus binds the device address directly to its physical slot position. This module is hard-coded to require 2 divisions of card width and must be installed specifically into an even-numbered slot address (e.g., Slot 2, 4, 6). If you place it in an odd-numbered slot, the bus controller will fail to map the telemetry, resulting in an addressing conflict or an unresolvable rack error flag.
Q: Will I need a separate programming tool to reload configuration logic onto this new board? A: Yes, the 70EB02C-ES saves its specific user logic and signal list matrices into a localized onboard EEPROM. After you mechanically slide the board into the rack, you must utilize the PROCONTROL PDDS (Program Documentation and Diagnostics System) terminal to load the specific configuration profiles down over the station bus. The card cannot map the physical binary loops accurately until this parameter profile is active.
Q: What is the exact function of the dual SS and SEA bus connections on the module? A: The 70EB02C-ES serves as a communication bridge between multiple sub-networks. The SS standard interface hooks the module directly to the localized Station Bus, allowing standard monitoring data to circulate among local processing cards. The SEA interface links the module directly to the PROCONTROL-PS bus system, allowing high-priority safety interlocks and protection telegrams to move instantly across the entire plant network.
Q: Can this binary input card be hot-swapped under live power while the system is running? A: While the mechanical design allows for insertion into a powered backplane, it is highly discouraged during active operation. Pulling or inserting a protection module can cause signal noise on the shared RS-485 station bus lines, which may disturb telemetry on adjacent cards. More importantly, pulling the input card instantly forces its 16 binary channels to zero, which can trigger emergency interlocks or a plant trip if the channels aren’t bypassed first in the system software.
Q: Why does the 70EB02C-ES carry a high price compared to modern standard 16-point PLC cards? A: This module belongs to the highly specialized, legacy ABB PROCONTROL P power plant platform. These units are built to military-grade reliability and deterministic standards to handle nuclear, gas, and steam turbine protection structures. They are no longer produced in mass-market quantities. Our inventory consists of New Original Surplus (New Surplus) units that provide an immediate solution for utilities looking to preserve their existing hardware architecture and avoid million-dollar migration costs. Every card is covered by our 1-year warranty.
