Description
Product Introduction & Engineering Value
I’ve seen paint booths grind to a halt because a sluggish air regulator caused severe paint sag and orange peel on finishing lines. The ABB ACU-01B 3HNA024871-00103 module fixes that by supplying fast, repeatable pneumatic response straight to the robot’s bell atomizer.
Replaces older 3HNA013719-001 units smoothly across IRB-series finishing cells. It maintains tight fan-pattern shaping and atomizing pressure, stopping film thickness variations before they trigger quality rejections.
Technical Specifications
- Manufacturer: ABB Robotics
- Module Identifier: ACU-01B / 3HNA024871-00103
- Primary Application: Electro-pneumatic flow and shaping-air control for robotic paint spray guns
- Control Output Signal: Multi-channel analog and digital outputs for fast valve positioning
- Field Communication: Ethernet and CAN bus network protocol integration
- Operating Temperature: -10^\circC to +55^\circC (14^\circF to 131^\circF)
- Operating Pressure Range: 0.5 bar to 7.0 bar pneumatic supply input
- Physical Dimensions: 210 mm \times 140 mm \times 160 mm (8.27 in \times 5.51 in \times 6.30 in)
- Net Weight: 3.66 kg (8.07 lbs)
- Enclosure Rating: IP54-rated sealed housing for paint booth environment survivability
Field Application & The “Trench” Experience
The Trench Story: During a high-volume bumper clearcoat run, Robot 3 on an automotive paint line began throwing inconsistent bell-speed fault codes, resulting in severe paint runs. The maintenance team traced the issue to a failing proportional solenoid on the original ACU-01 module, which was dropping control air pressure during rapid wrist flips. Swapping in a pre-tested 3HNA024871-00103 unit cleared the air pressure hysteresis immediately. The booth returned to full production without needing recalibration of the robot’s paint recipes.
Target Industrial Applications:
- Automotive Body & Bumper Coating: Precision control of atomizing air, turbine bell speed, and pattern shaping air on finishing lines.
- Tier-1 Automotive Plastic Parts: Maintaining uniform film thickness on complex exterior mirror covers and grille assemblies.
- Aerospace Exterior Coating Cells: Regulating electrostatic bell applicator airflow during automated fuselage panel painting.

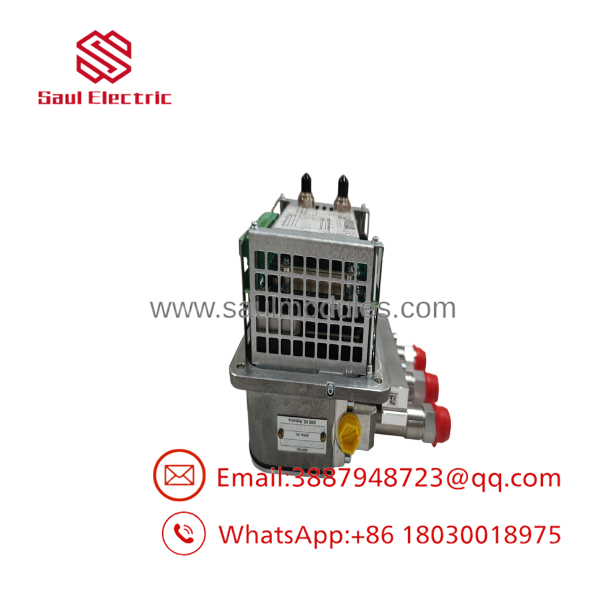

- ACU-01B 3HNA024871-00103

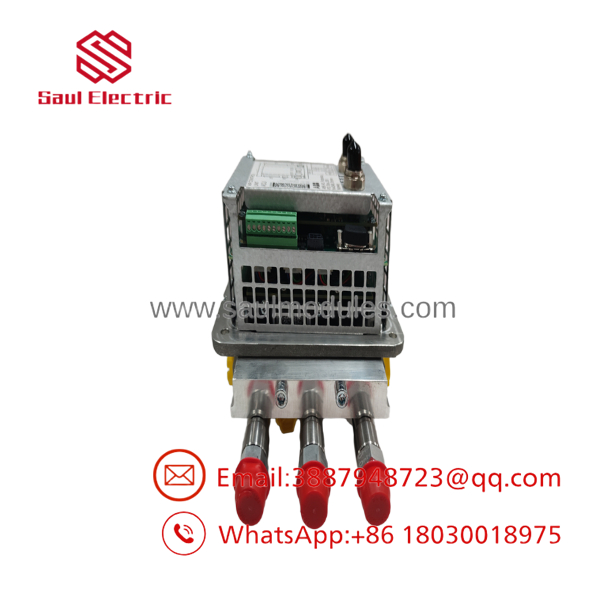

- ACU-01B 3HNA024871-00103
Transparency SOP: QA & Testing
Every ACU-01B assembly undergoes rigorous multi-stage qualification before leaving our bench. We begin by pressurized leak-testing the pneumatic manifold at 8.0 bar to verify internal seals and solenoid seat integrity. The unit is then mounted on an ABB paint controller emulator, where we run continuous step-response sweeps across digital and analog control loops to confirm sub-millisecond electro-pneumatic response times. Finally, communication ports (CAN/Ethernet) are polled under high network traffic to ensure zero packet drops or framing errors occur during dynamic robot motion.
The Veteran’s Tech Trap Guide
- ⚠️ Air Line Contamination Risk: Oil or moisture in your main compressed air supply will destroy the fine internal solenoid seats inside the 3HNA024871-00103. Always confirm upstream coalescing filters and desiccant dryers are servicing the booth before plumbing up a fresh ACU module.
- PRO TIP: When replacing an older ACU-01 (3HNA013719-001) with this ACU-01B variant, check your CAN bus jumper settings and node addressing. The requires proper termination resistor placement on the network harness to avoid fieldbus communication faults.
- ⚠️ Exhaust Vent Blockage: Never plug or paint over the module’s breather and exhaust relief ports. Overspray buildup on the exhaust vents creates backpressure inside the internal regulator cavity, causing drift in turbine bell speed control.
Dynamic FAQ
Q: Does the 3HNA024871-00103 replace older ABB ACU-01 part numbers like 3HNA013719-001?
A: Yes. The (3HNA024871-00103) is the direct backward-compatible replacement for 3HNA013719-001 and 3HNA024871-001 modules used across ABB paint robotics platforms.
Q: What is the main function of the module in an ABB paint robot system?
A: It functions as the electro-pneumatic air control unit, regulating shaping air, atomizing air, turbine bell speed, and paint valve triggers during spray operations.
Q: How do I resolve air pressure control lag after mounting a replacement ?
A: Check that the supply air pressure is stable between 5.0 and 7.0 bar and verify that signal cable shield grounds are properly connected to prevent electrical noise on the analog control lines.
Q: What network protocols does the support for communication with the main robot controller?
A: The supports CAN bus and Ethernet fieldbus communication protocols to interface with ABB IRC5P and S4P+ paint robot control architectures.
Q: What warranty and testing coverage comes with these replacement units?
A: All new surplus and fully refurbished modules pass complete pneumatic pressure testing and carry a 1-year functional replacement warranty.
