Product Introduction & Engineering Value
Signal drift on critical process loops usually traces back to degraded Analog-to-Digital conversion components inside aging DCS input cards. The ABB AI620 (3BHT300005R1) resolves data acquisition jitter by delivering isolated 12-bit conversion across 16 independent analog channels.
Engineered to drop directly into ABB S600 I/O subracks connected to Advant Controller 110 and 160 systems, this module feeds millisecond-accurate sensor values back to main process CPUs. It eliminates ground-loop interference across long transmitter runs, ensuring stable flow, level, and pressure regulation in legacy plant setups.
Technical Specifications
- Module Type: High-Density S600 Analog Input Card
- ABB Type Code: AI620 / 3BHT300005R1
- Channel Density: 16 independent analog input channels
- A/D Resolution: 12-Bit Analog-to-Digital Conversion
- Input Signal Range: -10 V DC to +10 V DC / 0 to 20 mA (hardware/jumper configurable)
- Channel-to-Bus Isolation: 50 V to 500 V galvanically isolated channels
- System Backplane Compatibility: Fits standard ABB Advant Controller 160 & 110 rack assemblies
- Power Supply Requirement: Standard 24 V DC backplane supply
- Operating Temperature Range: -25°C to +85°C (-13°F to +185°F)
- Physical Dimensions: 252 mm \times 273 mm \times 40 mm (9.9 in \times 10.7 in \times 1.6 in)
- Unit Net Weight: Approximately 1.28 kg (2.8 lbs)
Field Application & The “Trench” Experience
The Trench Story: During a continuous chemical batch cycle, a boiler feedwater skid connected to an Advant Controller 160 rack began showing irregular level fluctuations on the operator graphics. Diagnostics revealed that Channel 4 on the original AI620 card was suffering from severe A/D conversion drift due to thermal stress on onboard passive filters. An instrument technician pulled the faulty card, checked the terminal block pin alignment, and inserted a bench-tested 3BHT300005R1 module. The level signal stabilized instantly without requiring recalibration of the primary field transmitter, preventing an accidental low-level boiler trip.
Target Industrial Applications:
- Refinery Tank Farm Telemetry: Aggregating 4–20 mA level and pressure transmitter signals across S600 I/O clusters.
- Paper Mill Stock Preparation: Monitoring analog valve feedback and line consistency sensors in Advant DCS architectures.
- Turbine Auxiliary Systems: Tracking oil temperature and bearing vibration signals on legacy power generation skids.

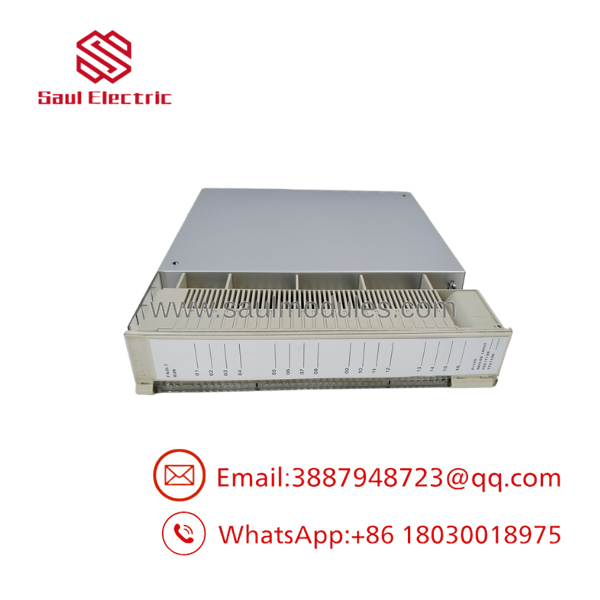

- AI620

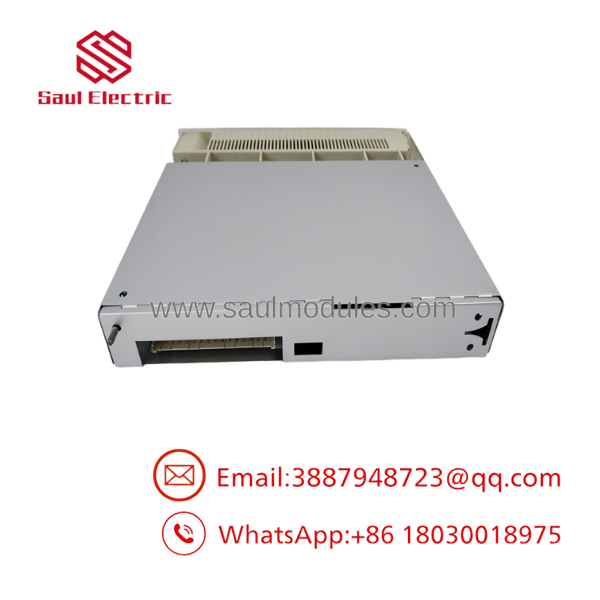

- AI620
Transparency SOP: QA & Testing
- Microscopic Solder Joint Inspection: Complete visual scan of multilayer PCB traces, SMT resistors, and A/D converter chips to check for cold joints or heat distress.
- Channel-by-Channel Calibration Sweep: Precision signal generation across all 16 channels to verify linearity from 0 V to +10 V and 0 to 20 mA.
- Backplane Logic Simulation: Mounting the card in an AC160 / S600 test chassis to confirm error-free backplane bus polling.
- Hi-Pot Isolation Audit: Checking dielectric isolation barriers between signal channels and logic grounds to prevent field transients from reaching the CPU.
The Veteran’s Tech Trap Guide
- ⚠️ Mismatched Voltage vs. Current Wiring: The AI620 handles both voltage (-10V to +10V) and current (0–20 mA / 4–20 mA) loops. Connecting a powered 4–20 mA current loop to a channel configured for voltage input without proper conditioning resistors will overload the input stage and damage channel trace passives.
- PRO TIP: When hot-swapping S600 I/O cards, ensure the top and bottom retaining screws are completely disengaged before pulling. Jerking the card at an angle can bend the backplane pin assembly inside the AC160 subrack.
- ⚠️ Shield Grounding Rules: Always ground field transmitter cable shields at the dedicated S600 grounding bar, not directly to the terminal screw housing. Poor shield grounding introduces 60 Hz hum on 12-bit analog conversions, manifesting as false process noise on SCADA screens.
Dynamic FAQ
Q: Is the 3BHT300005R1 part number a direct replacement for the module?
A: Yes, “” is the functional model code, and “3BHT300005R1” (or Y3BHT300005R1) is the exact ABB hardware ordering number. They refer to the same physical 16-channel analog input module.
Q: Can the card be used in both Advant Controller 110 and Advant Controller 160 systems?
A: Yes, the is built for the I/O platform, which interfaces directly with both AC110 and AC160 controller series.
Q: Does replacing an module require downloading new logic or software re-configuration?
A: No, the is an I/O interface board. As long as the replacement module’s channel hardware settings match the original card, the system CPU will recognize the module automatically upon rack power-up.
Q: What condition are these surplus/refurbished modules provided in?
A: Every unit is fully cleaned, bench-tested across all 16 analog channels, sealed in static-shielding ESD packaging, and includes a standard 1-year functional replacement warranty.
