ABB AI801 S800L Analog Input Module 8 Channel

Description

Product Introduction

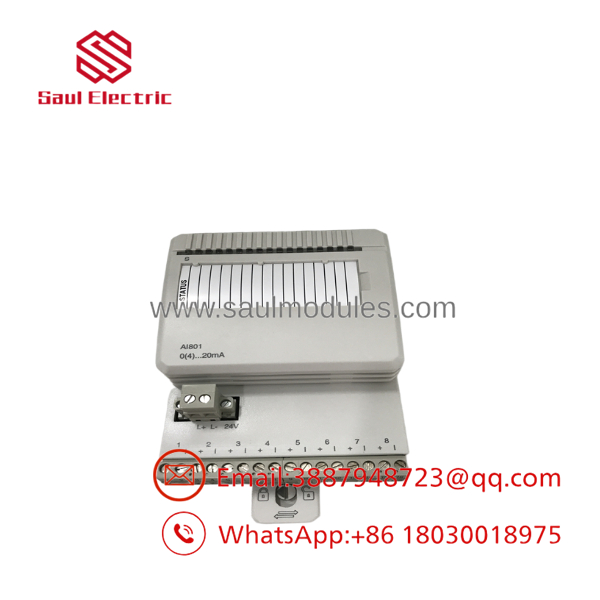

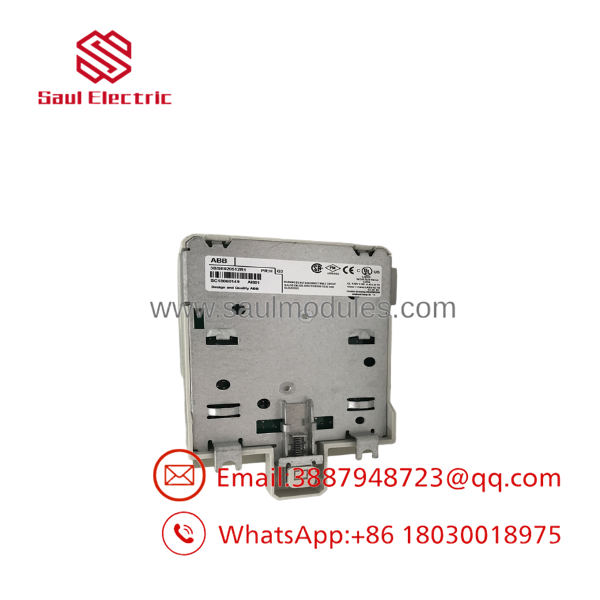

The ABB AI801 (3BSE020512R1) is an 8-channel analog input module from the ABB S800L I/O family. It is designed for process automation applications requiring acquisition of standard current signals from field transmitters such as pressure, flow, level, and temperature instruments. The module connects to ABB control platforms through the S800 I/O architecture.

The AI801 focuses on reliable 4–20 mA signal measurement rather than multi-function analog processing. It provides 12-bit conversion, grouped channel isolation, and protection against field wiring faults. When replacing an installed module, verify the S800L hardware configuration and controller I/O database before installation. The AI801 is not a universal replacement for every ABB analog input card.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A transmitter loop suddenly disappears from the DCS.

The operator sees a frozen pressure value. The field instrument checks out. The 24 VDC supply is stable. The loop current measures correctly at the marshalling cabinet.

The fault is inside the I/O cabinet.

This is where the ABB AI801 often gets investigated. Analog input modules sit quietly for years, then one failed channel can remove critical process information from the control system.

Typical Applications

Power Generation — Boiler instrumentation monitoring — The AI801 collects 4–20 mA signals from pressure, temperature, and flow transmitters used by ABB control systems.

Chemical Processing — Reactor and process monitoring — Provides analog measurement acquisition for continuous process variables.

Oil & Gas — Pipeline and compressor stations — Converts field transmitter signals into controller-readable values.

Water Treatment — Pump station automation — Handles level, pressure, and flow measurements.

Pulp & Paper — Production process control — Supports continuous analog monitoring across production equipment.

Field Case Study

A wastewater facility running an ABB System 800xA installation reported several unstable level measurements. Operators suspected instrument calibration problems because the transmitters appeared to drift.

Technicians tested the field loops with a current simulator and confirmed the instruments were correct. The problem followed the I/O channels. After replacing the 3BSE020512R1, verifying channel scaling, and checking the controller configuration, all measurements returned to normal operation.

The downtime was limited because the spare module was available before a full I/O cabinet replacement was considered.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible ABB S800 I/O racks whenever practical.

• Inbound Inspection
  • Verify ABB label, article number, and module markings.
  • Inspect terminal connectors and housing condition.
  • Check for corrosion, contamination, or storage damage.
• Live Rig Testing
  • Install the module into an ABB S800L test rack.
  • Verify module initialization.
  • Apply simulated 4–20 mA signals.
  • Confirm channel readings and diagnostics.
• Electrical Parameter Checks
  • Verify analog conversion response.
  • Test input channel stability.
  • Check isolation behavior.
  • Confirm protection circuitry operation.
• Firmware / Hardware Verification
  • Record module revision.
  • Verify compatibility information.
  • Confirm identification data.
• Final QC & Anti-static Packaging
  • Functional inspection completed.
  • Anti-static protection applied.
  • Moisture protection packaging.
  • Export-safe shipping preparation.

The Veteran’s Tech Trap Guide

⚠️ Do not replace the transmitter before testing the input channel.

A failed AI channel can look exactly like a bad field instrument. Put a calibrated 4–20 mA source directly into the module before replacing expensive transmitters.

⚠️ Watch the grounding arrangement.

The uses grouped channel isolation, not individual channel isolation. Poor shield grounding can create unstable readings or noise problems.

❗ Check the I/O configuration database.

A physically identical module does not guarantee correct operation. Confirm channel assignments, scaling, and controller configuration before startup.

⚠️ Do not confuse with AI810 or AI815.

ABB has several S800 analog input modules with similar names. The signal type, channel configuration, and hardware family must match the existing engineering design.

Frequently Asked Questions (FAQ)

Q1. What is the ABB ?

The ABB is an 8-channel analog input module for the ABB S800L I/O system. It accepts 0–20 mA and 4–20 mA DC current signals and converts them into digital values for process control systems.

Q2. What is the ABB part number for ?

The standard ABB article number is:

— 3BSE020512R1

Q3. Does support HART communication?

No.

The input can withstand HART communication signals on the loop, but it is not a HART-enabled analog input module.

Q4. Can be hot-swapped?

Do not assume it is safe.

Some ABB S800 installations support online module replacement depending on system configuration, but maintenance procedures must follow the specific controller and I/O station design.

Q5. What happens if one channel fails?

Depending on the failure mode, one channel may show an incorrect value, diagnostic alarm, or loss of measurement. The other channels normally continue operating because the module processes multiple independent inputs.

Q6. Why is surplus stock cheaper than direct OEM purchase?

Many legacy automation modules enter the surplus market from plant modernization projects, unused maintenance inventory, or system upgrades. Tested surplus hardware can be a practical option for maintaining existing ABB installations.

Q7. What should be verified before ordering ?

Confirm:

• ABB Model:
• Article Number: 3BSE020512R1
• compatibility
• Input signal type (0–20 mA / 4–20 mA)
• Channel requirement
• Existing module revision
• Controller I/O configuration

Verify exact terminal assignments and installation requirements with ABB documentation before commissioning. A matching part number is only the first step; correct I/O configuration determines whether the replacement works properly.
