Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AO02 |
| Product Type | Analog Output Module |
| Series | ABB Ability™ Symphony® Plus SD Series |
| Output Channels | 16 independently configurable channels |
| Output Signal | 4–20 mA or 1–5 VDC |
| HART Support | HART v5.4 |
| D/A Resolution | 12-bit (one D/A converter per channel) |
| Accuracy | ±0.1% Full Scale |
| Module Power | 24 VDC ±10%, 100 mA typical |
| Field I/O Power | 24 VDC ±10%, 20 mA per channel |
| Channel Isolation | 1 × 16 group isolation, 1500 V |
| Operating Temperature | -40 °C to +70 °C |
Product Introduction

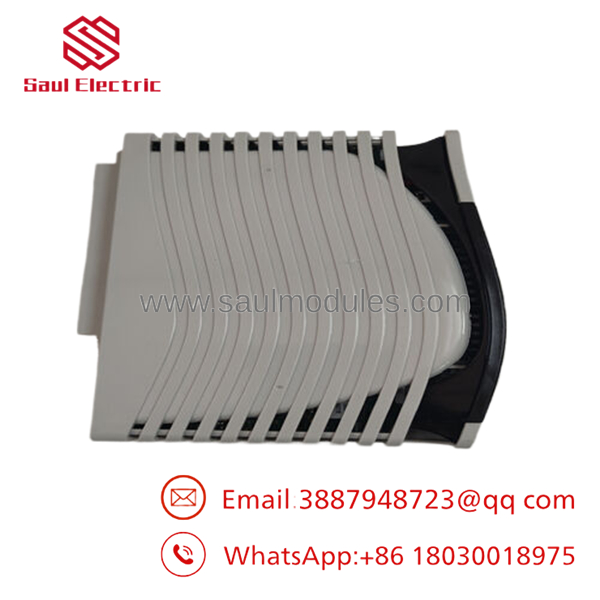

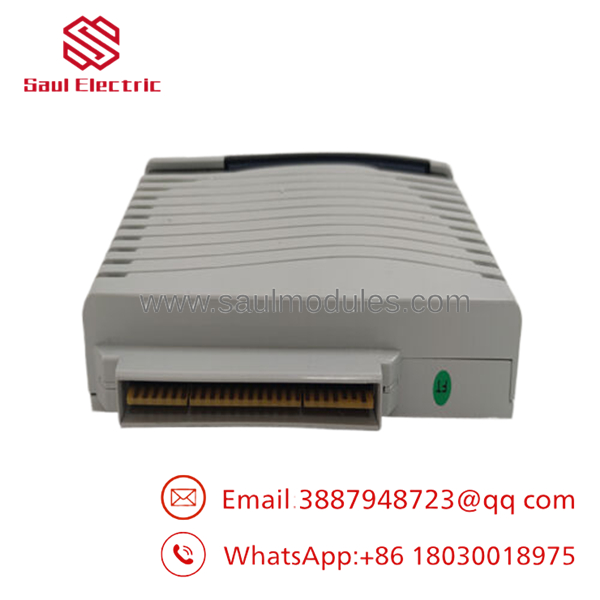

The ABB AO02 is a 16-channel analog output module designed for the ABB Ability™ Symphony® Plus SD Series distributed control system (DCS). It delivers high-level analog control signals to field devices such as control valves, variable-speed drives, actuators, and positioners.
Each channel can be independently configured for either 4–20 mA or 1–5 VDC output and supports HART v5.4 communication. The module continuously reads back each output signal for verification, reducing commissioning time and improving output accuracy in power generation, oil & gas, chemical, and water treatment applications.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All outputs remain at zero | Missing 24 VDC module or field power | ❌ Low | Measure logic and field supply voltages | Verify power supplies before replacing module |
| One output channel not responding | Field wiring or actuator fault | ❌ Low | Inject output command and measure current with a loop calibrator | Check wiring and field device first |
| Several outputs fail simultaneously | AO02 hardware or base connector issue | ✅ High | Reseat module and inspect base connector | Replace module if diagnostics confirm failure |
| HART device not communicating | Configuration mismatch | ⚠️ Medium | Verify HART configuration and field device compatibility | Review controller configuration |
| Output fixed at maximum or minimum | Shorted loop or open circuit | ❌ Low | Measure output current directly at terminals | Repair field wiring before replacing module |
| Fault LED illuminated | Internal electronics failure | ✅ High | Read Symphony Plus diagnostic messages | Replace module if hardware fault is confirmed |
| Output unstable | Ground loop or electrical noise | ❌ Low | Verify shield grounding and cabinet bonding | Correct installation before replacing hardware |
Service Note
Most AO02 service calls are caused by wiring errors, failed valve positioners, or missing loop power—not the output module itself. Before ordering a replacement, measure the actual output current with a calibrated process meter, review controller diagnostics, and verify that the field device responds correctly to a simulated signal.
- AO02
- AO02
Frequently Asked Questions (FAQ)
1. How many analog outputs does the provide?
The provides 16 independently configurable analog output channels, each supporting 4–20 mA or 1–5 VDC operation.
2. Does the support HART communication?
Yes. The module supports HART v5.4, allowing communication with compatible smart field devices while simultaneously transmitting the analog control signal.
3. Can I hot-swap the module?
No. Always de-energize the I/O cabinet before removing or installing the module. Removing it under power can interrupt process outputs and may damage connected equipment.
4. Does each channel verify its output signal?
Yes. The reads back each output signal to confirm that the commanded analog value matches the signal delivered to the field, reducing calibration requirements and improving diagnostics.
5. Is the compatible with every Symphony controller?
The is designed for the ABB Ability™ Symphony® Plus SD Series and uses Function Code 221 for module configuration and 223 for channel configuration. Verify controller firmware, I/O base (such as HBS01-EPD or VBS01-EPD), and application compatibility before purchasing.
6. Why should I record the existing configuration before replacement?
A common maintenance mistake is replacing the hardware without backing up channel scaling, default output values, or HART parameters. Take screenshots or export the controller configuration before removing the module. That simple step can save hours of recommissioning.
7. What quality checks should a supplier perform before shipment?
A reputable supplier should perform:
- OEM label and serial number verification
- Anti-counterfeit inspection
- Visual inspection for damaged terminals or PCB defects
- Functional testing on a Symphony® Plus SD Series test rack
- Verification of all 16 analog outputs using calibrated current and voltage instrumentation
- HART communication verification where applicable
- ESD-safe packaging with QC documentation and test photos available upon request
