ABB AO801 S800 I/O Analog Output Module

Description

Product Introduction

The ABB AO801 is an 8-channel analog output module designed for the ABB S800 I/O distributed input/output platform. It converts digital control commands from the controller into accurate analog current signals used to regulate field devices such as control valves, variable frequency drives, dampers, and process actuators.

Unlike digital output modules, the AO801 delivers continuous process signals required for closed-loop control. In AC 800M architectures, it is commonly selected where stable 4-20 mA outputs, predictable response, and long-term compatibility with S800 I/O installations are required. Verify exact hardware revision and controller firmware compatibility before commissioning.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Anyone who has worked a turnaround has seen it happen. A single failed analog output channel suddenly drives a valve fully closed or leaves it frozen at its last position. The PLC is healthy. Communications are healthy. Production isn’t. Finding one defective AO module during a shutdown window can save hours of troubleshooting.

Typical Applications

• Power Generation – Boiler feedwater valve positioning where precise 4-20 mA control is required.
• Oil & Gas – Flow control valves on pipeline pumping stations requiring continuous analog output.
• Chemical Processing – Reactor dosing systems requiring accurate analog actuator positioning.
• Water Treatment – Variable speed pump control through analog reference signals.
• Pulp & Paper – Steam pressure and process valve regulation integrated into AC 800M systems.

Field Replacement Example

A paper mill experienced unstable steam pressure because one AO channel intermittently dropped below 4 mA. Operators initially suspected the control valve positioner. After loop testing, technicians isolated the fault to an aging AO801 module. Replacing the module restored stable output immediately, avoiding several hours of lost production. In situations like this, having verified surplus inventory available is often less expensive than waiting several weeks for factory lead time.

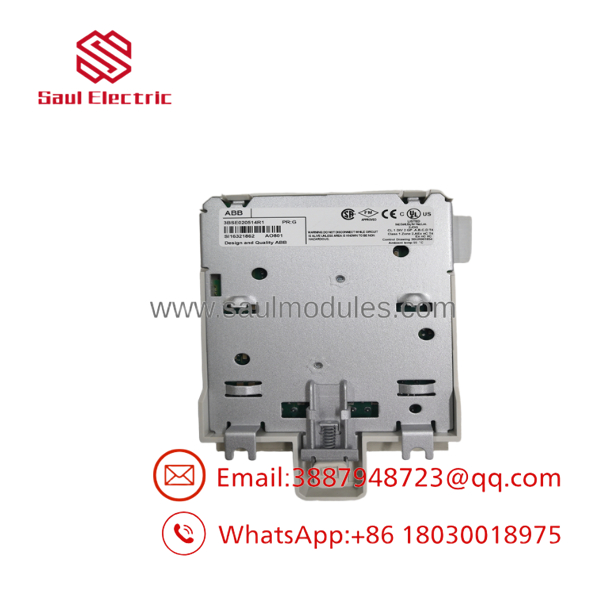

AO801

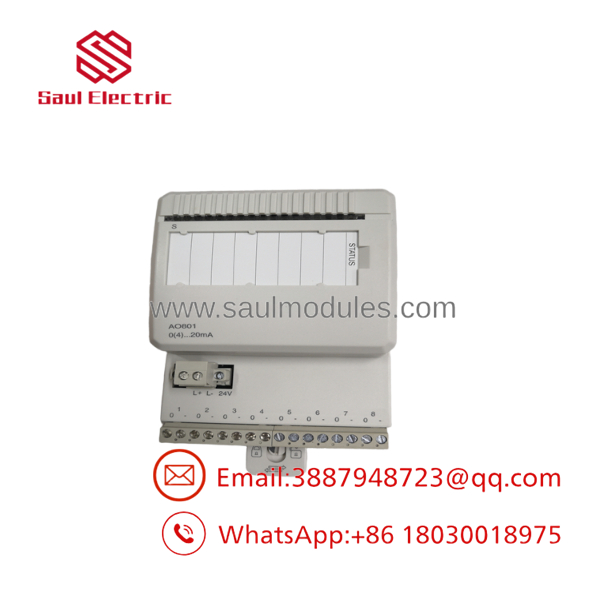

AO801

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB S800 I/O racks whenever practical.

• Inbound Inspection
  • Verify ABB labeling and part number.
  • Inspect housing for physical damage.
  • Confirm OEM labels and packaging integrity.
  • Screen for counterfeit indicators.
• Live Rig Testing
  • Install module in an ABB I/O test rack.
  • Verify module recognition.
  • Confirm communication with the controller.
  • Execute analog output diagnostics.
• Electrical Parameter Checks
  • Verify output current accuracy.
  • Confirm channel isolation.
  • Check output stability across all channels.
• Firmware Verification
  • Record hardware revision.
  • Document firmware revision where applicable.
  • Verify compatibility with supported controller revisions.
• Final QC & Packaging
  • Final visual inspection.
  • Anti-static protection.
  • Shock-resistant industrial packaging.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Take a picture before removing the old module.
Document every field cable location. Eight identical analog channels are surprisingly easy to reconnect incorrectly during an outage.

⚠️ Verify your scaling.
A control strategy expecting 4–20 mA will not tolerate incorrect engineering-unit scaling after module replacement. Confirm output calibration before returning equipment to automatic operation.

❗ Check controller compatibility.
Some AC 800M firmware revisions introduce updated diagnostics. Verify supported hardware combinations before installation.

⚠️ Never assume the field device is faulty.
Before replacing a valve positioner or VFD input card, inject a calibrated 4–20 mA signal directly into the loop. This separates field-device problems from module failures in minutes.

Frequently Asked Questions (FAQ)

Q1. Does the ABB support hot swapping?

Answer: It depends on the specific I/O configuration and controller architecture. Many systems support online replacement under defined conditions, but always follow ABB maintenance procedures before removing the module.

Q2. Can the be used with AC 800M controllers?

Answer: Yes. The is commonly deployed with ABB AC 800M controllers through the I/O platform. Verify firmware compatibility using the ABB hardware compatibility documentation.

Q3. Is firmware flashing required after installation?

Answer: Normally no. The controller recognizes the module automatically. Hardware and firmware revisions should still be verified before commissioning.

Q4. Is this an original ABB module?

Answer: Yes. New surplus units are genuine ABB-manufactured products sourced through global industrial surplus channels. They are not aftermarket reproductions.

Q5. Why is the price lower than purchasing directly from ABB?

Answer: Most surplus inventory originates from canceled projects, plant expansions, or excess maintenance stock. The hardware is genuine but sold outside the original OEM distribution channel.

Q6. What warranty is provided?

Answer: A 12-month warranty is typically provided against manufacturing defects and functional failure under normal industrial operating conditions.

Q7. What should be checked before replacing an ?

Answer: Verify the controller firmware version, module configuration, output signal range, field wiring, loop calibration, and channel mapping. Also compare the replacement module’s hardware revision with the installed unit and verify exact pinouts with the OEM datasheet before installation.
