ABB BDFC-01C ACS880 Drive Fan Control Board

Description

Product Introduction & Engineering Value

Cooling failures rarely begin with the fan itself. In many drive cabinets, the actual problem is the control circuitry responsible for fan operation. The ABB BDFC-01C manages fan activation, monitoring, and protection, helping maintain proper thermal conditions inside compatible ABB industrial drives.

Installed as an internal accessory within selected ACS880 drive configurations, the board supports stable cooling during continuous operation. Proper fan management reduces the likelihood of thermal derating, unexpected overtemperature alarms, and premature power semiconductor aging.

Technical Specifications

Engineering Note: Exact compatibility depends on the ACS880 frame size and hardware configuration. Verify the drive type code and spare parts list before ordering.

Field Application & The “Trench” Experience

A steel processing plant experienced recurring Drive Overtemperature alarms on a large rolling mill. Initial maintenance focused on replacing cooling fans, but the alarms continued. Further diagnostics revealed that the fans were functional, yet the control board was no longer issuing the correct start command under load.

After replacing the BDFC-01C, technicians confirmed proper fan sequencing and temperature feedback. The drive completed a full production shift without thermal alarms, avoiding an unplanned shutdown of the rolling line.

Typical applications include:

• High-power conveyor drive systems in mining operations
• Paper machine main drive cooling management
• Steel rolling mill motor drives
• Large centrifugal pump variable-speed drives
• Continuous process manufacturing using ACS880 converters

Transparency SOP: QA & Testing

Before shipment, every BDFC-01C undergoes a documented quality verification process.

1. Confirm ABB part number and PCB revision.
2. Inspect solder joints, connectors, and PCB traces for physical damage.
3. Verify connector integrity and mounting points.
4. Perform functional testing on a compatible ABB drive test platform where available.
5. Check fan output circuits and diagnostic signals.
6. Package the board in ESD-safe materials with impact protection.

For refurbished inventory, additional operational testing is completed before release.

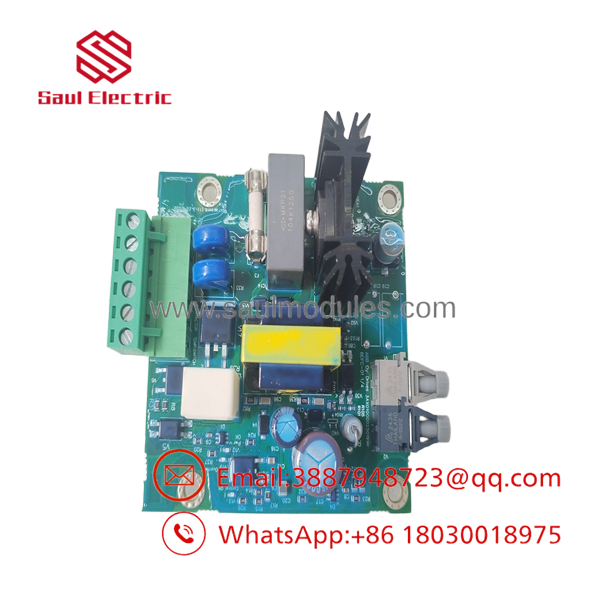

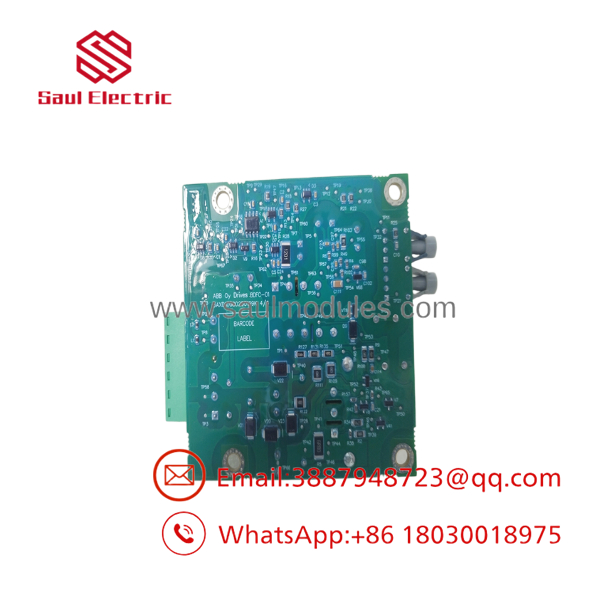

BDFC-01C

BDFC-01C

The Veteran’s Tech Trap Guide

⚠️ Replacing the board won’t fix a worn-out fan.

Always measure fan current and verify fan operation before assuming the control board has failed. Mechanical bearing wear is often the real cause of overheating.

⚠️ Match the hardware revision.

ACS880 drives have multiple hardware generations. Installing an incorrect PCB revision can result in startup faults or unsupported diagnostics. Verify both the drive type code and the board revision before installation.

PRO TIP:

If the drive reports intermittent fan faults, inspect the wiring harness and connector pins first. Vibration inside high-power drive cabinets can gradually loosen connector contacts without producing visible damage.

⚠️ Observe ESD precautions.

This board contains sensitive electronic components. Handle it only in an ESD-protected environment to avoid latent failures that may not appear during initial commissioning.

Dynamic FAQ

Q1. Which ABB drives use the ?

The is primarily associated with selected ABB ACS880 industrial drive configurations. Compatibility should always be verified using the drive type designation and ABB spare parts documentation.

Q2. What is the primary function of this board?

It manages cooling fan operation, monitors fan status, and supports thermal protection within the drive, helping maintain safe operating temperatures.

Q3. Can the be replaced without changing drive parameters?

Yes. In most cases, replacing the fan control board does not require parameter changes because it functions as an internal hardware component. However, the replacement board must match the correct hardware revision.

Q4. Are New Surplus units genuine ABB products?

Yes. New Surplus units are unused original ABB inventory stored under controlled warehouse conditions. Each unit undergoes identification verification and visual inspection before shipment.

Q5. How can I confirm this is the correct replacement part?

Provide the complete drive type code, serial number, and part number (3AXD50000010454). This information allows compatibility to be verified before shipment.

Q6. Is warranty available?

Yes. Warranty coverage is available for both New Surplus and professionally refurbished boards. The warranty period depends on the supplied condition and is confirmed with the quotation.
