Description
Product Introduction
The ABB BRC300 is a core processor and communication module engineered for the Advant OCS (Open Control System) architecture utilizing Master software. Operating as a bridge and controller, it handles heavy process control calculations while routing data traffic across the local control network. It acts as the central intelligence node for large-scale industrial continuous process plants.
In legacy pulp and paper, chemical, and power generation facilities, the BRC300 maintains system stability without forcing a wholesale DCS migration. Because ABB has phased out support for the legacy Advant series, securing a verified BRC300 module is critical for preventing extended downtime when a node failure brings down a process section.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | ABB |
| Product Series | Advant OCS (Master Software Platform) |
| Model / Part Number | BRC300 |
| Function Type | Bridge and Communication Controller (Master Processor) |
| Memory Backup | Lithium battery backup for RAM data retention |
| Communication Interfaces | MasterBus 300 (MB300) / S100 I/O Bus connection support |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Enclosure Requirements | IP20 (Requires rack mounting inside a sealed industrial cabinet) |
| Weight | Approx. 1.5 lbs (0.68 kg) |
| Lifecycle Status | Obsolete / Discontinued by ABB |
Application Scenarios & The “Trench” Experience
It is a Sunday afternoon during a continuous chemical run, and the main control node suddenly drops off the MasterBus 300 network. The operator station freezes, alarming cascades across the CRT, and half the distillation column loops go manual. You pull open the cabinet, and the diagnostic LED on the BRC300 is flashing a fatal memory error code. You don’t have time to rewrite control logic or migrate to System 800xA today; you need a drop-in BRC300 that boots up clean, pulls configuration from the node backup, and gets the loop back under automatic control before production management notices.
- Pulp & Paper Mills – Continuous digester and recovery boiler loops – Required for maintaining deterministic scan times on high-node-count S100 bus systems.
- Petrochemical Refining – Fractionation unit control nodes – Manages critical redundant communication handshakes across the MB300 network.
- Power Generation Utilities – Water treatment and auxiliary balance of plant – Handles complex PID control algorithms and local interlock execution.
- Legacy DCS Migration Staging – Staged facility upgrades – Used as a hot-spare bridge controller to buy years of operating life before a scheduled system overhaul.

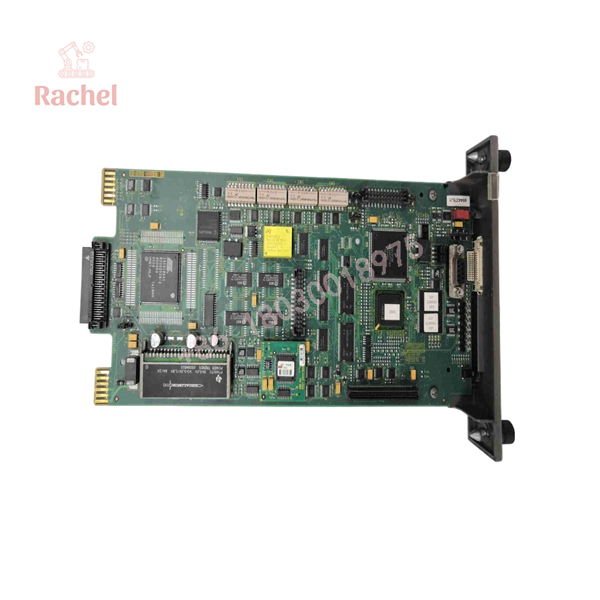

BRC300

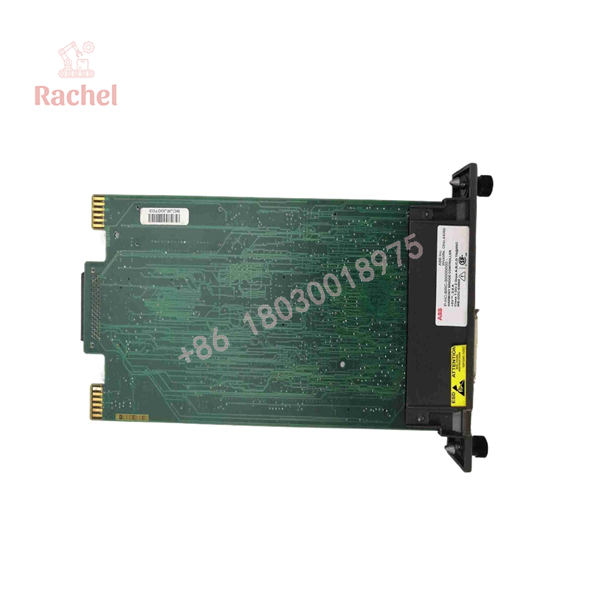

BRC300
Transparency SOP: Quality Assurance & Testing
Industrial DCS processors cannot be shipped “as-is” from a salvage yard. Every BRC300 goes through our bench protocol:
- Visual & Board-Level Audit: Inspection of electrolytic capacitors, onboard voltage regulators, and the internal lithium battery voltage level.
- Static Resistance Testing: Checking power plane isolation to verify no internal short circuits across the main processor bus pins.
- Live Advant Rack Test: Seated into a live ABB test chassis powered by an operational power supply module.
- MB300 & S100 Bus Handshake: Verifying communication port responsiveness and memory read/write cycles under a simulated network load.
- Anti-Static & Climate-Safe Packing: Sealed in a heavy-duty metallized shielding bag with desiccant and packed in structural foam.
The Veteran’s Tech Trap Guide
- ⚠️ Lithium Battery State: If the BRC300 has been sitting on a shelf for years, check the onboard lithium battery voltage before deployment. A dead battery will dump volatile RAM configuration data upon power interruption.
- ❗ Firmware Revision Mismatch: Always verify the firmware revision loaded on the EPROM chips matches your rack’s system generation. Dropping an incompatible firmware build onto an active node will throw severe configuration checksum faults.
- ⚠️ Hot-Insertion Hazard: Never pull or plug a BRC300 into an energized Advant rack unless the system architecture explicitly designates it for live-maintenance slots (which standard CPU nodes are not). You risk spiking the backplane bus and taking down neighboring nodes.
- ❗ S100 Bus Terminator Check: When replacing the processor, ensure the local S100 I/O bus terminators are seated correctly on the rack ends; a loose terminator will trigger intermittent frame errors across the whole node.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the ABB BRC300 backward compatible with older MasterPiece 200/290 systems?
A: The BRC300 is designed specifically for the Advant OCS architecture. While it shares mechanical form factors with older hardware, consult your system configuration architecture before swapping across different series generations.
Q: Does the module come with configuration memory intact?
A: No. Replacement BRC300 modules are shipped cleared or with default testing firmware. You must reload the node-specific configuration file from your engineering station project backup after installation.
Q: What should I do if the unit displays a red error LED upon boot?
A: Power down immediately, pull the card, and check the backplane edge connectors for dust or oxidation. If the error persists, verify that your EPROM chips are fully seated in their sockets.
Q: Are these units brand new or refurbished?
A: Because ABB has discontinued this line, most units are classified as New Surplus or fully tested Refurbished stock. Every unit is bench-tested prior to release.
Q: What kind of warranty is included?
A: All BRC300 controllers are backed by a comprehensive 12-month replacement warranty.
