Description
Application Scenarios & The “Trench” Experience
A paper mill in Maine ran into an unexpected shutdown on a Friday night when their main cross-direction basis weight scanner threw persistent frame sync errors. The culprit was a degraded signal line driver on a decades-old CI532V09 submodule inside the scanner interface box. The plant was burning through $22,000 an hour in unscheduled downtime. The shift engineer swapped out the faulty submodule, verified bus seating, and got the scanner head recalibrated in under 30 minutes—saving the weekend production target.
- Pulp & Paper – Paper Machine Basis Weight & Moisture Profiling – Processes raw scanner head signals to adjust slice lip positioners.
- Plastics & Film Extrusion – Caliper Thickness Control – Captures high-frequency gauge sensor data to drive auto-profile die bolts.
- Metals Rolling – Cold Mill Foil Thickness Monitoring – Drives real-time roll gap adjustments based on high-speed X-ray thickness measurements.
Transparency SOP: Quality Assurance & Testing
We test every CI532V09 submodule on actual testing rigs before putting it into anti-static inventory:
- Inbound Component Inspection: We inspect PCB traces under magnification, verify gold-finger edge connector contacts for wear or pitting, and validate original ABB manufacturing labels.
- Backplane Carrier Power Test: The submodule is seated into a powered host carrier board to verify power rail initialization (+5V, +15V, -15V) and monitor idle thermal characteristics.
- Signal Transmission Validation: Using signal generators, we feed simulated high-frequency sensor pulses into the input channels to verify ADC conversion accuracy and packet timing across the local submodule bus.
- Environmental Thermal Soak: The unit undergoes a low-temperature bake and burn-in cycle to catch latent semiconductor drift or cold solder joints before field deployment.
- ESD Packaging: Cleaned with electrical residue solvent, wrapped in thick static-shielding bags, and sealed with fresh desiccant packs.

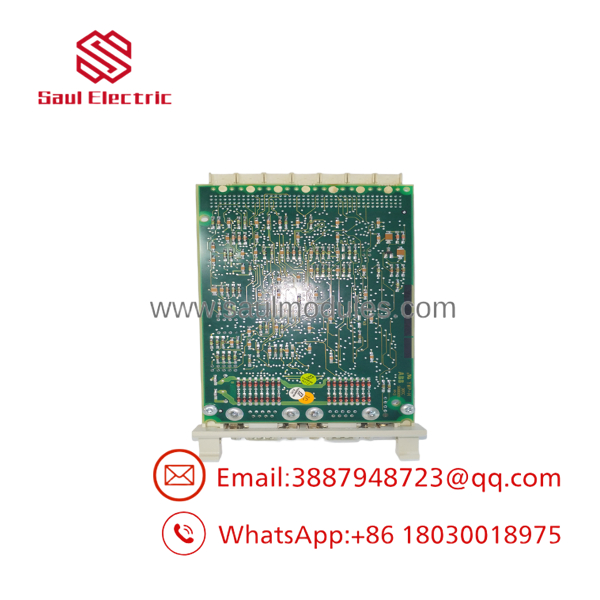

- CI532V09

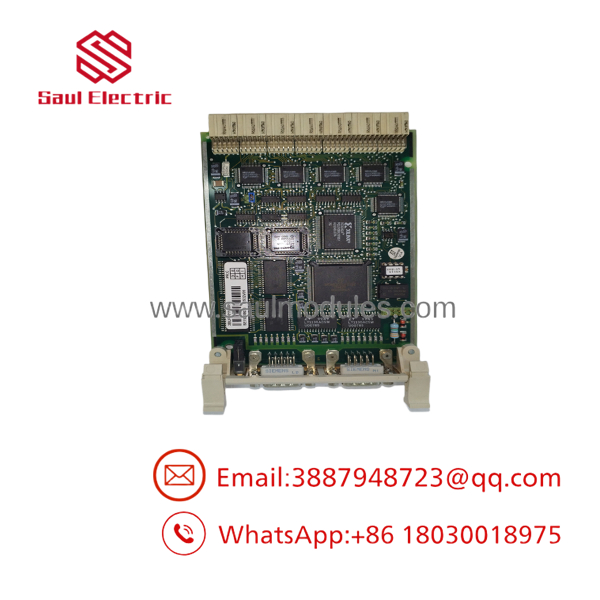

- CI532V09
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Fragile Edge Connectors: The multi-pin edge connectors on these submodules are delicate. Never force a CI532V09 into its carrier card slot at an angle. If you feel uneven resistance, back it out, inspect for bent pins inside the carrier socket, and re-align perpendicular to the backplane.
❗ Calibration Offset After Replacement: Because this card handles precision analog telemetry, swapping a CI532V09 almost always alters your sensor zero and span points slightly. Don’t just pop in the new board and hit “RUN”—run a full sensor standardization/recalibration routine before restarting production, or your product thickness will run out of spec.
⚠️ ESD Destructive Risk: These submodules feature unshielded surface-mount components directly on the board edge. Always wear an grounded ESD wrist strap when handling them. Touch the grounded metal chassis before pulling the board from its anti-static bag—one static discharge can punch a hole in the input logic.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the submodule hot-swappable?
A: No. You must power down the carrier board sub-rack or scanner interface panel before pulling or inserting the . Removing the card live can create voltage transients that fry adjacent logic chips on the motherboard.
Q: Does the require independent firmware loading?
A: No standalone firmware flashing is required on the submodule itself. When the main CPU boots up, it detects the on the local bus and pushes down operational parameters automatically from the system hardware database.
Q: What is the difference between and earlier hardware revisions like CI532V03?
A: The primary difference lies in protocol support, board component density, and revision compatibility. While the CI532V03 was widely used for general serial interfaces (such as Siemens 3964R), the is tailored specifically as a submodule interface within AccuRay/Advant sensor processing chains. Always verify your OEM schematic before substituting revisions.
Q: Are these units brand new from ABB?
A: ABB has discontinued this specific line, so factory-new production units do not exist on the market. Our stock consists of certified “New Surplus” (never installed original spares) and fully reconditioned, bench-tested surplus units sourced from decommissioned plant modernizations.
Q: What warranty do you provide on this item?
A: We provide a full 12-month advance replacement warranty on all submodules. If the unit fails or exhibits signal drift within 365 days of purchase, we ship a replacement unit immediately.
