ABB CI854AK01 Interface Kit AC 800M Controller Component

Description

Product Introduction

The ABB CI854AK01 (3BSE030221R1) is a communication interface kit engineered to equip ABB AC 800M controllers with redundant or dual-channel PROFIBUS DP-V1 master capabilities. The complete kit includes the CI854A communication module and the mating TP854 baseplate, which mounts directly onto the controller CEX-Bus expansion rail.

Engineers specify the CI854AK01 when interfacing AC 800M processors (like the PM864A or PM866) with complex field networks, including variable speed drives, motor control centers (MCCs), and remote I/O clusters. Featuring two independent RS-485 fieldbus ports, it supports line redundancy and master redundancy protocols up to 12 Mbps—ensuring uninterrupted control traffic even if a field cable is severed.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A petrochem plant in Louisiana had a main extruder drive drop offline during a midnight production run when a physical short on an unshielded field line knocked out the primary PROFIBUS loop. Because the AC 800M rack was built with a CI854AK01 utilizing line redundancy, the controller automatically switched data traffic to the secondary channel without throwing the drive into a fault trip. The plant avoided an estimated $45,000 resin solidify-in-barrel cleanup. The instrument tech replaced the damaged field cable segment during the next scheduled maintenance window without ever stopping the line.

• Refining & Petrochemical – Intelligent Motor Control Centers (MCC) – Manages real-time status and control commands across hundreds of low-voltage motor starters over PROFIBUS.
• Metals & Mining – Heavy VFD System Integration – Coordinates multi-axis drive speed setpoints and torque feedback loops with sub-millisecond precision.
• Pharmaceutical Manufacturing – High-Density Process Skid Control – Bridges batch controllers to distributed valve manifolds and field instrumentation skids.

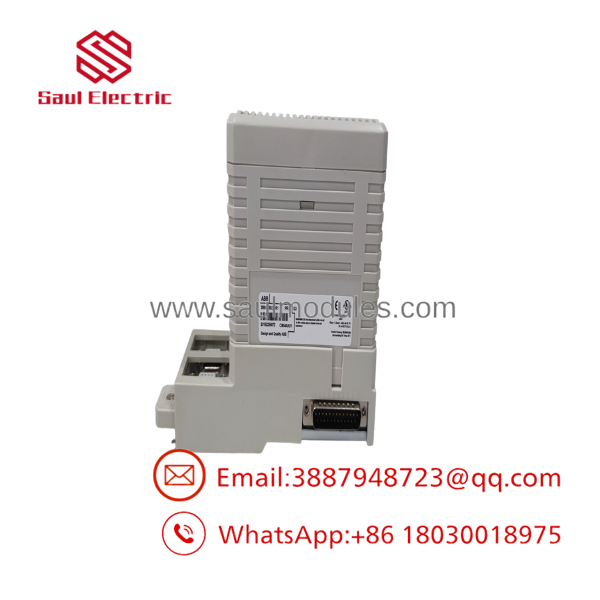

CI854AK01

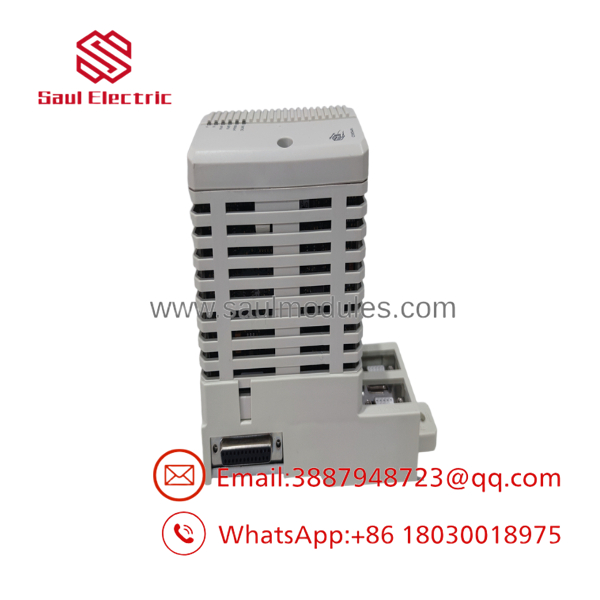

CI854AK01

Transparency SOP: Quality Assurance & Testing

We test every kit on an actual AC 800M test rig before approving it for ESD packaging:

1. Inbound Hardware & Pin Inspection: We check multi-pin CEX-Bus connectors on both the CI854A module and TP854 baseplate for bent pins, verify locking spring latches, and inspect original ABB serial labels.
2. CEX-Bus Power & Boot Check: Mount the assembly onto a live AC 800M controller bus rail to verify 24V DC logic step-down, bus synchronization, and front-panel LED initialization.
3. 12 Mbps Dual-Port Data Loop: Connect both RS-485 ports to active PROFIBUS DP slave simulators. Stream cyclic I/O at 12 Mbps to verify zero packet dropouts or signal attenuation on either port.
4. Channel Failover Verification: Simulate a line break on Port 1 during active data transfer to confirm instant, transparent failover to Port 2 under Control Builder M runtime monitoring.
5. ESD Cleaning & Protective Seal: Clean connector contacts with isopropyl electrical solvent, enclose in thick anti-static shielding, and pack with fresh moisture desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Differences Between CI854K01 and : Pay close attention to the “A” in the part number! The older CI854K01 (non-A) and the newer have different hardware revisions and underlying component ASICs. While the CI854A module is backward-compatible in most hardware trees, you cannot pair a non-A module and an ‘A’ module together in a redundant CI854 setup. Both modules in a redundant pair must match revision letters.

❗ Proper Line Termination (TB850 / External Resistors): PROFIBUS RS-485 physical lines running at high baud rates (especially 12 Mbps) are notoriously sensitive to signal reflections. Ensure that active DB9 PROFIBUS connectors at both ends of the segment have their termination switches turned ON, or use official TB850 terminators. Leaving open line ends causes ghost network dropouts that are a absolute pain to trace with an oscilloscope.

⚠️ Do Not Seat Module Without Baseplate Latch Engagement: Slide the TP854 baseplate onto the CEX-Bus rail first, lock its DIN clip, and then seat the CI854A module vertically onto the base. Pressing the module in sideways or forcing it when the baseplate isn’t anchored will bend the backplane header pins inside the CEX bus bridge.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the “K01” suffix signify on the part number?

A: The “K01” suffix designates a complete kit containing both the functional communication module (CI854A) and its required mounting CEX-Bus baseplate (TP854). If you order just the “”, you are buying the module alone without the mounting baseplate.

Q: Can I hot-swap the module from its baseplate while the controller is running?

A: Yes, the AC 800M CEX-Bus architecture supports hot-swapping of the module. However, if the module is operating in a non-redundant configuration, removing it will immediately halt all PROFIBUS communication on those ports. In redundant pairs, pulling the faulted unit passes master control to the secondary card seamlessly.

Q: Does the support PROFIBUS PA (Process Automation) directly?

A: Not directly on its physical ports. The outputs standard RS-485 PROFIBUS DP. To connect PROFIBUS PA field devices (e.g., transmitters or positioners), you must install a DP/PA segment coupler or linking device (such as an ABB LD 800DN or third-party coupler) downstream.

Q: Is a special software license required in Control Builder M to use this module?

A: No special software feature key is needed, but you must insert the module hardware definition into your controller configuration tree in Control Builder M so the CPU maps the I/O memory addresses and fieldbus diagnostic blocks correctly.

Q: What warranty coverage do you offer on this kit?

A: We provide a full 12-month advance replacement warranty on all kits (new surplus or factory reconditioned). If either the module or baseplate fails or drops communications within 365 days, we ship a replacement right away.
