ABB CMA132 3DDE300412 Control Module

Description

Product Introduction

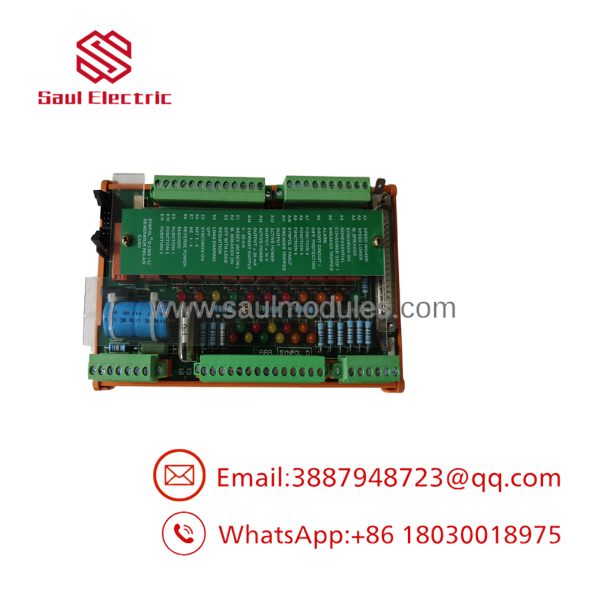

The ABB CMA132 (3DDE300412) is a specialized microprocessor control board developed by ABB for high-demand industrial automation drives and power electronic systems. Belonging to the 3DDE hardware family, the CMA132 board acts as an internal processing unit, managing high-speed control calculations, gate firing signals, and communication protocols within high-power drives and system cabinets.

Designed for heavy-duty industrial environments, the CMA132 integrates directly into system backplanes or controller racks. It executes real-time control algorithms and feeds diagnostic feedback up to supervisory DCS hosts (such as System 800xA or Advant OCS), making it a critical component for maintaining continuous operation in large-scale drive systems.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A steel rolling mill in Ohio experienced an unexpected shutdown on a primary stand drive when an internal system fault flagged a CPU execution error on the main control rack. The drive controller lost synchronization, bringing the mill line to a complete standstill. Diagnostics traced the issue to thermal degradation on the internal CMA132 processor board. After swapping in a verified CMA132 unit and restoring the drive parameter set, the rack initialized cleanly, restoring line speed control and preventing extensive mill downtime.

• Steel & Metals Industry – Rolling Mill Main Drives – Manages high-speed motor control loops and torque distribution.
• Mining & Materials Handling – Mine Hoist & Conveyor Systems – Coordinates real-time drive execution and fault monitoring across heavy-duty AC/DC drives.
• Marine & Offshore – Vessel Main Propulsion & Thrusters – Executes vital control routines inside high-power variable frequency drive cabinets.

3DDE300412

3DDE300412

Transparency SOP: Quality Assurance & Testing

Every (3DDE300412) module undergoes strict testing protocols prior to anti-static packaging:

1. Visual & Component Inspection: We inspect multi-pin backplane edge connectors, surface-mount ICs, and onboard capacitors under magnification to ensure zero corrosion, thermal stress marks, or physical damage.
2. Power Rail Verification: Power is applied via a test rack setup to verify internal voltage regulator stability (+5V, ±12V/15V) and monitor initial logic boot states.
3. Backplane & Bus Functional Test: The module is inserted into a functional test chassis to confirm backplane communication, clock signals, and local bus synchronization.
4. Cleaning & ESD Packaging: PCB surfaces and connector fingers are cleaned with electrical solvent, enclosed in thick static-shielding bags, and sealed with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Protect Edge Connector Gold Fingers: The backplane edge connector on the uses precision gold-plated contacts. Before inserting a replacement board into the rack, inspect the mating socket for dust or bent pins. Inserting a board with force into a damaged backplane socket can scratch off contact plating or bend pins, leading to hard bus errors.

❗ Firmware & Parameter Backup: Depending on the specific system configuration, the may work in tandem with onboard EPROM/EEPROM modules or flash memory containing drive application firmware. Always verify whether software parameters need to be transferred or reloaded from the host controller upon installing a replacement board.

⚠️ ESD Handling Precautions: Like all 3DDE series control boards, the is highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the card, and never touch open traces or IC leads directly with bare hands.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the ABB (3DDE300412) still actively manufactured by ABB?

A: No. The and related 3DDE control boards are in legacy/discontinued status. Availability relies primarily on new surplus inventory and factory-refurbished stock.

Q: Does replacing a require special setup tools?

A: Hardware replacement is straightforward (rack slide-in), but depending on the system drive architecture, you may need to cycle system power or re-download parameters via your ABB drive software/DCS tools.

Q: Can I hot-swap the card while the system rack is powered?

A: No. Always power down the host cabinet or drive rack completely before removing or inserting the to prevent electrical arcs or corrupted memory.

Q: What condition are these modules shipped in?

A: We provide both certified New Surplus (unused original plant spares) and Fully Refurbished / Bench-Tested units. Every unit passes physical and functional inspection before dispatch.

Q: What warranty is included with this purchase?

A: All (3DDE300412) modules come with a full 12-month advance replacement warranty. If a defect or failure occurs within 365 days, we provide a replacement unit immediately.
