ABB CPM810A Common Processor Module (Advant / 800xA)

Description

Product Introduction

The ABB CPM810A is a Common Processor Module engineered for high-availability process control within ABB System 800xA, Advant OCS, and integrated control architectures. Positioned as the central logic unit inside controller racks, the CPM810A executes real-time control algorithms, manages data exchange across fieldbus backplanes, and passes diagnostic telemetry to supervisory DCS operator stations.

Built for heavy industrial environments, the module combines high processing throughput with robust noise immunity. It handles multi-tasking logic programs, high-speed PID loops, and network synchronization, making it a crucial component for maintaining continuous automation stability in power, chemical, and manufacturing plants.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A continuous chemical processing plant in Texas experienced a CPU fault trip on a main process control drop during an electrical brownout event. The central DCS lost feedback from downstream valve banks and temperature transmitters, halting production. Maintenance technicians identified memory corruption on the existing CPU board. After swapping in a spare CPM810A module, restoring the controller application image, and powering up the rack, the backplane initialized cleanly, re-establishing controller sync and allowing the plant to restart without extended cold shutdown costs.

• Chemical & Petrochemical Refining: Manages safety interlocks, continuous distillation loops, and distributed I/O data flow.
• Power Generation & Utilities: Controls boiler balance-of-plant automation, turbine trips, and auxiliary generator sequencing.
• Pulp, Paper & Metals: Handles high-speed logic sequencing and real-time drive coordination across processing lines.

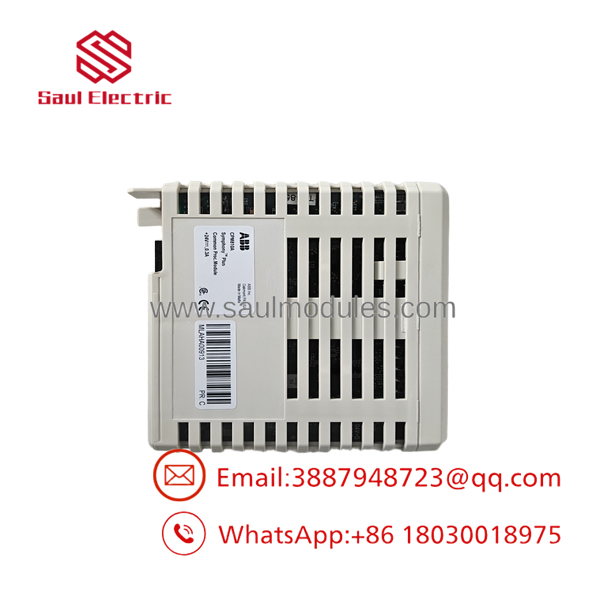

CPM810A

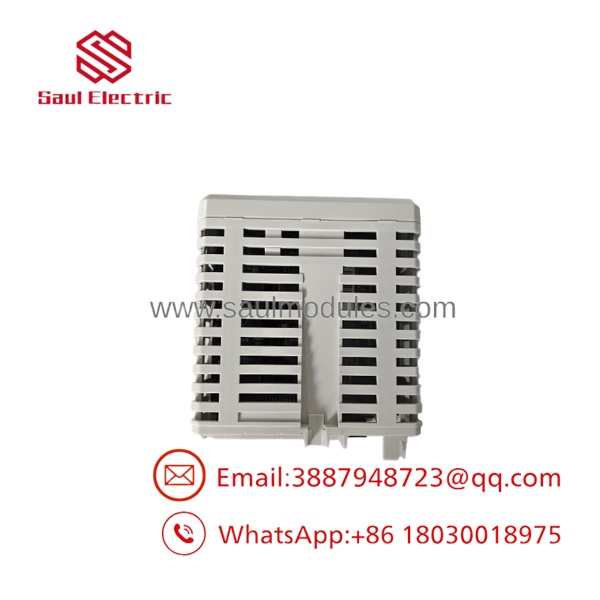

CPM810A

Transparency SOP: Quality Assurance & Testing

Every module undergoes systematic testing prior to static-shield packaging:

1. Visual & Connector Pin Inspection: Gold backplane edge contacts, housing latches, and circuit components are inspected under magnification for thermal degradation or pin misalignment.
2. Power-On Diagnostic & Logic Boot: 24V DC is applied via a test rack to confirm onboard DC-DC power regulation and verify normal LED startup sequences.
3. Backplane & Memory Stress Test: Inserted into an active test chassis to run cyclic CPU load tests, verifying RAM/Flash execution integrity and backplane bus synchronization.
4. Network Port Functional Test: Serial and Ethernet communication channels are tested to ensure zero packet dropouts during continuous data transmission.
5. ESD Protection & Cleaning: PCB surfaces are cleaned with static-safe solvent, enclosed in thick anti-static shielding bags, and sealed with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Backplane Contact Protection: The edge contacts on the use precision plating. Ensure the mating backplane rack slot is clean and free of metal filings or dust before insertion. Never force the module in at an angle, as bent connector pins can short internal logic power rails.

❗ Application Firmware / Parameter Backup: Replacing a requires re-downloading the runtime application software and system parameters from Control Builder / DCS tools unless an onboard non-volatile memory card is transferred. Always confirm you have a current software backup before removing the old processor card.

⚠️ ESD Handling Mandate: High-density processor boards are extremely sensitive to electrostatic discharge. Always wear a properly grounded ESD wrist strap during installation and handle the card strictly by its front panel or board edges.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the ABB ?

A: The functions as the primary CPU module in compatible ABB system racks, executing control programs, managing I/O data processing, and handling communications.

Q: Is the still in active production by ABB?

A: No. The CPM810 series is in legacy/discontinued status. Replacement units are supplied primarily via certified New Surplus and fully reconditioned stock.

Q: Can I hot-swap the processor card?

A: Removing the active in a single-processor setup will immediately halt control processing for that rack drop. Ensure process loops are in a safe or manual state before pulling the module.

Q: What warranty is offered with this module?

A: All modules—whether New Surplus or Bench-Tested Refurbished—come with a full 12-month advance replacement warranty.
