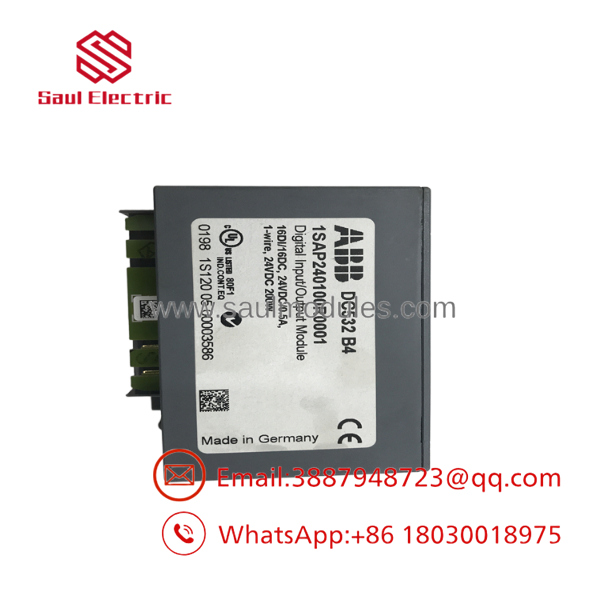

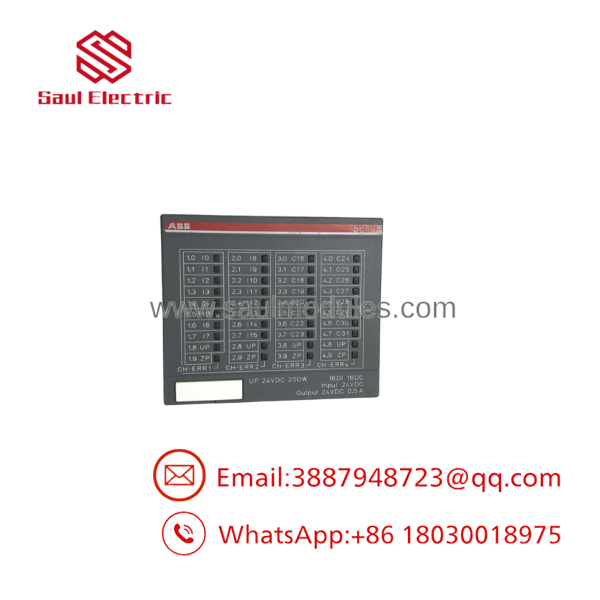

ABB DC532 S500 Digital I/O Module

Description

Product Introduction

The ABB DC532 (1SAP240100R0001) is a compact, high-density digital I/O expansion module designed for the ABB AC500 PLC ecosystem. Mounting onto standard TU5xx Terminal Units via the S500 I/O bus, the DC532 offers 32 total digital signal channels within a standard 67.5 mm footprint.

Featuring 16 dedicated 24V DC digital inputs and 16 flexible channels that can act as either 24V DC digital inputs or 0.5A transistor outputs, the DC532 optimizes control panel space and reduces hardware costs. It also incorporates two onboard hardware counters capable of handling input pulse frequencies up to 50 kHz, making it suitable for high-speed counting and position-sensing tasks without extra counter cards.

Key Technical Specifications

Application Scenarios & Industrial Context

A packaging automation line requires solenoid valve control, optical sensor feedback, and real-time belt encoder tracking. Instead of purchasing separate digital input, digital output, and high-speed counter modules, a single ABB DC532 module handles all functions directly on the AC500 backplane.

• High-Speed Machine Control: Uses onboard 50 kHz hardware counters for high-speed pulse inputs from incremental encoders or flow sensors.
• Space-Constrained Panels: Combines 32 digital points in one module to conserve space in cabinet builds.
• OEM Custom Machinery: The 16 configurable channels allow machine builders to adjust output/input counts via software without altering panel wiring hardware.

Quality Assurance & Inspection Steps

Every DC532 module undergoes testing before deployment or shipment:

1. Terminal Unit Pin Inspection: Verification of gold-plated backplane connector pins for bends or oxidation.
2. Backplane Bus & Logic Boot Test: Module is mounted onto a test AC500 CPU bus to verify active detection, firmware response, and error LED indicators.
3. I/O Channel Screening: High-voltage testing across all 16 fixed inputs and 16 configurable channels to ensure zero cross-talk, correct current draw (5 mA nominal), and clean transistor switching under 0.5A loads.
4. Hardware Counter Check: High-frequency pulse simulation up to 50 kHz to verify onboard counter logic precision.
5. ESD Packaging: Sealed in anti-static protective bags with moisture desiccant prior to boxing.

Technical Field Guide & Common Pitfalls

Power Supply Terminal Separations: Ensure external 24V DC process power is connected directly to the Terminal Unit (TU5xx) power supply pins. The logic side bus power supplied by the AC500 CPU cannot drive the 0.5A transistor outputs.

• Configurable Channel Software Setup: Channels 16 through 31 are configurable. If a channel is configured as an output in Automation Builder (PS501) but receives an external signal, back-feeding can trigger channel short-circuit diagnostics. Always verify I/O configuration mappings before powering up field devices.
• Terminal Base Selection: The module requires a compatible S500 Terminal Base (such as TU515 or TU516 for 1-wire/2-wire connections). The electronics module itself does not contain screw terminals.
• Derating in Vertical Mounting: Operating temperature is rated at 0°C to +60°C in standard horizontal mounting. If the DIN rail is mounted vertically, derate ambient operational temperature or lower total simultaneously active output currents.

Frequently Asked Questions (FAQ)

Q: What is the difference between DC522, DC523, and ?

A: The DC522 features 16 configurable DI/DO channels, the DC523 features 24 configurable DI/DO channels, and the provides 16 fixed digital inputs PLUS 16 configurable DI/DO channels (32 channels total) along with 2 integrated fast hardware counters.

Q: Do I need a separate high-speed counter card for encoder tracking?

A: No. The includes 2 integrated hardware counters supporting frequencies up to 50 kHz, allowing direct connection to incremental encoders or fast pulse sensors.

Q: Can I hot-swap the module?

A: Modules should be unlatched and swapped only when process power is safely isolated, or when installed on specific hot-swap capable S500 terminal bases compatible with hot-plugging rules.

Q: Does the include the terminal base block?

A: No. 1SAP240100R0001 is the electronic module insert. The TU5xx series Terminal Unit (base block) must be ordered separately according to your required wiring method (1-wire, 2-wire, or spring terminals).
