ABB DSDP140B 57160001-ACX Counter Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB DSDP140B (57160001-ACX) is a dedicated counter board used within ABB Advant Master Process Control Systems to process high-speed pulse and counting signals required by industrial automation and process control applications. It supports reliable event counting for continuous-process industries operating legacy ABB control platforms.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Since Advant Master is a mature legacy platform, maintaining 1–2 spare boards as buffer stock and implementing a last-time-buy strategy reduce lead time variability, lower Total Cost of Ownership (TCO), and eliminate the reliability risks commonly associated with refurbished electronics. A single unexpected failure can create procurement delays measured in weeks rather than days.

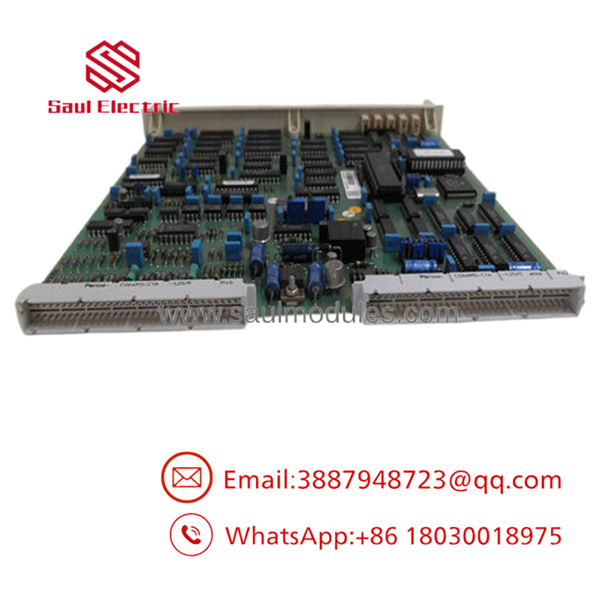

DSDP140B 57160001-ACX

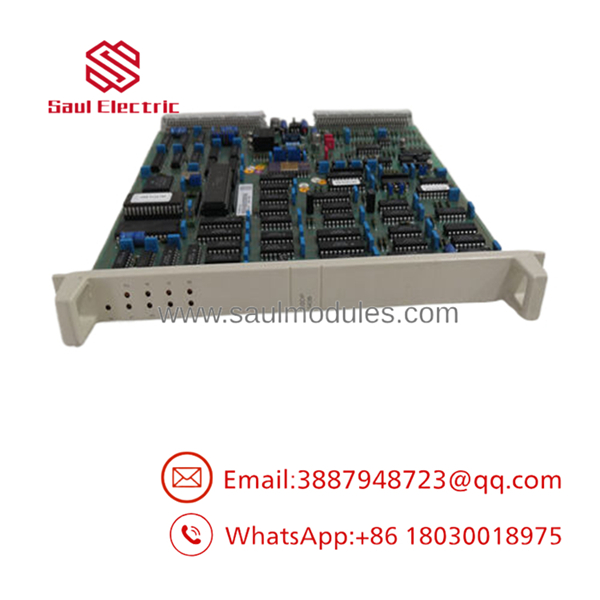

DSDP140B 57160001-ACX

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Apply Lock-Out/Tag-Out (LOTO).
2. Shut down the Advant Master controller cabinet.
3. Wear a grounded ESD wrist strap.
4. Photograph:
   • Board location
   • Cable routing
   • Connector positions
   • Rack configuration
5. Record controller configuration and hardware identification.

Stage 2: Removal

1. Disconnect all ribbon cables and field interfaces carefully.
2. Release board retainers.
3. Remove the board evenly without applying side force.
4. Inspect the backplane connector for contamination or bent contacts.

Stage 3: Installation (Clone & Seat)

1. Verify the replacement part number is 57160001-ACX.
2. Install the board into the identical slot.
3. Fully engage the connector and retaining hardware.
4. Restore all cable connections according to recorded documentation.
5. Confirm proper grounding before energizing the cabinet.

Stage 4: Power-On & Testing

1. Restore cabinet power.
2. Verify normal controller startup.
3. Confirm the board is recognized by the Advant Master controller.
4. Perform counter signal verification using known pulse inputs.
5. Confirm application diagnostics report normal operation before returning the process to service.

Firmware/Software Versions & Upgrade Notes

• The DSDP140B operates primarily as dedicated hardware within the Advant Master platform and contains no user-serviceable firmware.
• Verify controller software compatibility before replacing hardware.
• Do not upgrade the Advant Master controller software during emergency board replacement unless the complete control system has been validated.
• Preserve engineering databases, hardware configuration files, and controller backups before maintenance.
• Record slot assignments and hardware configuration to simplify commissioning after replacement.
• If multiple controller boards are replaced simultaneously, verify system synchronization before returning the plant to production.

Frequently Asked Questions (FAQ)

Q1. Is this board genuinely new?

Yes. This is a New Original / New Surplus ABB counter board. It is not used, repaired, or refurbished. Each unit undergoes serial number verification, electrical inspection, functional verification, and ESD-safe packaging before shipment.

Q2. Why is New Surplus priced below OEM factory supply but above refurbished boards?

New Surplus inventory is sourced from genuine OEM supply channels and preserves original component integrity. Although it generally costs more than refurbished hardware, it avoids hidden capacitor aging, unknown repair history, and premature failures that can result in costly process downtime.

Q3. Is the DSDP140B obsolete?

Yes. The belongs to the ABB Advant Master platform, which is now considered a legacy control system. Global inventory continues to decline, making proactive inventory planning essential. Facilities relying on this platform should maintain 1–2 spare boards, review lifecycle status regularly, and execute a planned last-time-buy before supply becomes constrained.

Q4. Can the be hot-swapped?

No. Hot-swapping is generally not recommended. Always follow ABB maintenance procedures and de-energize the controller rack before removing or installing the counter board to prevent controller faults or hardware damage.

Q5. Will replacing the board require application changes?

Normally, no. If the replacement board has the identical part number and the controller configuration remains unchanged, the existing application program should continue operating without modification. Always verify hardware recognition and perform functional testing before returning the system to service.

Q6. What quality verification is completed before shipment?

Every New Surplus follows a documented SOP that includes:

• OEM serial number verification
• Inbound traceability inspection
• Visual inspection
• Electrical continuity verification
• Functional counter-board testing
• Ground continuity inspection
• QC inspector approval
• ESD-safe packaging
• Heavy-duty export shipping preparation

Q7. What inventory strategy provides the lowest Total Cost of Ownership (TCO)?

For facilities operating ABB Advant Master systems, classify the as an A-Class critical spare. Maintain 1–2 on-site boards as buffer stock, consolidate purchases through qualified vendors, monitor lifecycle announcements, and implement cross-site inventory sharing where practical. A planned last-time-buy before end-of-life inventory is exhausted minimizes lead time variability, reduces stock-out risk, and delivers a lower Total Cost of Ownership (TCO).
