Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 4-channel high-speed pulse encoder/frequency input |
| Pulse Frequency | Up to 100 kHz per channel |
| Input Signals | TTL / 24 V DC pulse inputs (isolated) |
| Channels | 4 independent counters with position/speed measurement |
| Supply Voltage | 24 V DC typical (from I/O bus) |
| Operating Temperature | 0 to +55 °C (standard industrial range) |
| Storage Temperature | -25 to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | S100 I/O rack / baseplate |
| Compatibility | Advant Controller 400 series, S100 I/O, select AC 800M configurations |
| Diagnostics | LED status indicators, watchdog functions |
4. Product Introduction
The ABB DSDP170K02 3BSE019925R1 is a 4-channel pulse encoder input module designed for the S100 I/O system in Advant Controller 400 and compatible AC 800M setups. It handles high-speed pulse counting, frequency measurement, and position feedback from encoders in motion control, conveyor systems, and process applications.
In field deployments, this module delivers reliable counting for speed and positioning loops where standard digital inputs fall short. It supports direct integration into existing S100 racks and provides the counters needed for accurate velocity and length calculations without external hardware.

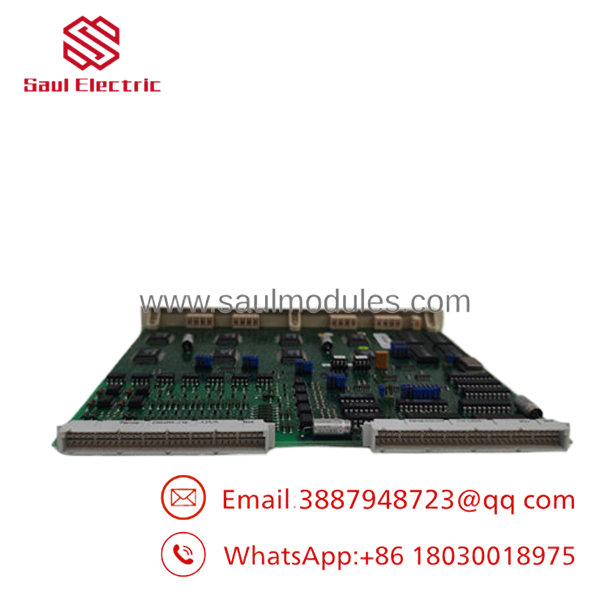

- DSDP170K02 3BSE019925R1

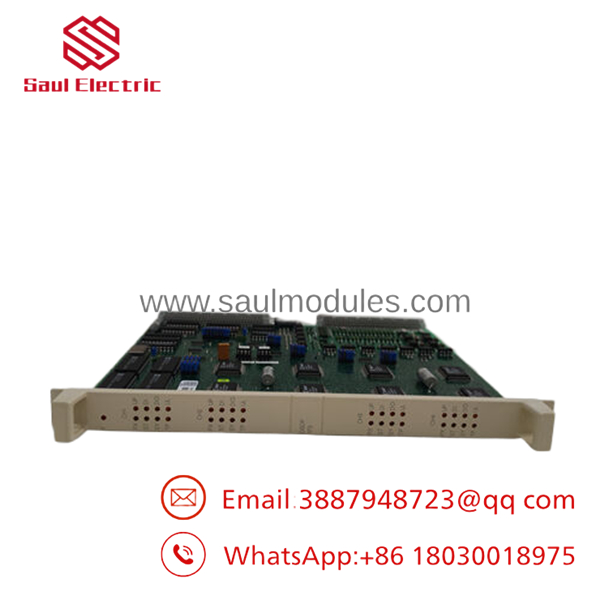

- DSDP170K02 3BSE019925R1
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Notify operations, verify safe state, lock out/tag out power, and wait 5 minutes for discharge. Tools Required: ESD wrist strap, PH1 screwdriver, multimeter, wire labels, smartphone for photos. Data Backup: Export controller logic, document current configuration, photograph DIP switches (if present), terminal wiring, and LED status on the old module.
Stage 2: Removing the Old Module (5 minutes)
- Remove the front cover or bezel.
- Label and disconnect field wiring carefully—do not force connectors.
- Release rack locking tabs and pull the module straight out to avoid bending backplane pins.
- Inspect the backplane for dust or damage. ⚠️ Note: Keep the old module until the new one runs without issues.
Stage 3: Installing the New Module (10 minutes)
- Use ESD protection. Verify the new module matches DSDP170K02 3BSE019925R1 exactly.
- Configuration Clone: Match any DIP switches or jumpers from your photos. Pay close attention to channel modes and termination if applicable.
- Align and insert firmly into the rack until it seats with a click.
- Reconnect wiring with proper torque. Self-Checklist: [ ] Configurations match, [ ] Wiring secure, [ ] Module locked in place.
Stage 4: Power-On & Testing (10-15 minutes) Pre-Power Check: Use a multimeter to verify no shorts on the 24 V rail. Power-On Steps:
- Energize the rack only.
- Check LEDs—normal operation shows green status.
- Connect to programming tool, confirm firmware and module recognition.
- Download configuration if needed and perform dry-run I/O tests. ⚠️ Troubleshooting Note: Solid red ERR LED often points to firmware mismatch or configuration error. No communication usually traces to bus addressing or power issues. Total swap time for experienced technicians is typically under 45 minutes.
6. Frequently Asked Questions (FAQ)
Can this module be hot-swapped under power? No. Always power down the rack first. Hot-swapping risks backplane damage or module failure in S100 systems. Plan for scheduled downtime.
Is this model obsolete, and is it genuinely new? DSDP170K02 is a legacy S100 module with limited new production. Units offered as New Original come from factory surplus stock with full traceability. We provide serial numbers and test reports. Verify compatibility with your specific controller firmware before ordering.
What is the direct replacement if this is out of stock? Check current ABB S800 I/O equivalents or migration to newer platforms. For racks, exact spares like this one are the safest path to avoid rewiring and logic changes. Contact us with your system details for recommendations.
Will I lose my programming logic when I pull the old CPU or I/O module? No—the logic resides in the controller CPU, not this I/O module. The DSDP170K02 handles only input counting. Backup your application and configuration as standard practice.
Why is your price lower than current OEM list price? These are new surplus units from authorized channels with full testing. OEM new production for older modules carries higher costs and longer lead times. All units undergo inbound verification, functional testing on real racks, and 24-hour burn-in.
How do I confirm firmware compatibility? Document the firmware on your existing module and controller before ordering. Some Advant 400 and AC 800M versions have specific requirements. We can provide test videos and photos on request.
What warranty do you provide? 1-year warranty on New Original units against defects. Coverage includes functional replacement after our standard testing confirms the issue.
