ABB DSDX451 Remote I/O Expansion Unit

Description

Key Technical Specifications

• Product Type: Remote in/out expansion unit.
• System Family: ABB Advant S400 I/O.
• Inputs: 20 digital inputs.
• Input Voltage: 24 V DC.
• Outputs: 12 digital relay outputs.
• Communication: Only for Advant Master / S400 remote I/O architecture.
• Application: Remote expansion of PLC or DCS I/O points.
• Use Case: Retrofit, system upgrade, and distributed I/O.
• Condition: New surplus or refurbished tested, depending on inventory.
• Availability: Limited stock, legacy spare part.

Product Introduction

The ABB DSDX451 is a remote I/O expansion unit for the ABB Advant S400 system. It provides 20 digital input points and 12 digital relay outputs, making it useful where a site needs more field points without redesigning the whole control system.

This is a legacy ABB remote I/O part, so buyers usually care more about fit and continuity than new features. The key check is whether the installed Advant Master or S400 architecture matches the DSDX451 remote I/O arrangement before you place it in service.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the control configuration, record I/O addressing, and photograph all wiring, jumpers, and network or remote I/O cabling.
4. Verify the replacement part is the exact DSDX451 version before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the access cover or enclosure panel.
2. Label and disconnect the field wiring carefully; do not force connectors.
3. Release the mounting hardware and pull the unit straight out.
4. Inspect connectors, mounting points, and wiring for dust, corrosion, bent pins, or heat damage.
5. ⚠️ Note: Keep the old unit until the replacement is fully commissioned.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model and system family match the removed unit.
2. Configuration clone is critical: copy the exact wiring layout, addressing, and any site-specific configuration from the old photos.
3. Seat the unit fully and secure the mounting hardware.
4. Reconnect all field wiring using the original labels and routing.
5. Check the self-list: [] settings match, [] wiring secured, [] unit seated, [] fasteners locked.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to confirm there are no shorts and that field voltages are correct.
2. Power up the controller and I/O system first, not the field devices.
3. Verify the unit status indicators if present.
4. Confirm the controller recognizes the remote I/O and all points map correctly.
5. Run a point-by-point functional test for both inputs and relay outputs.
6. ⚠️ Troubleshooting Note: If points do not appear, check addressing, connector seating, field voltage, and system compatibility before assuming the unit is defective.

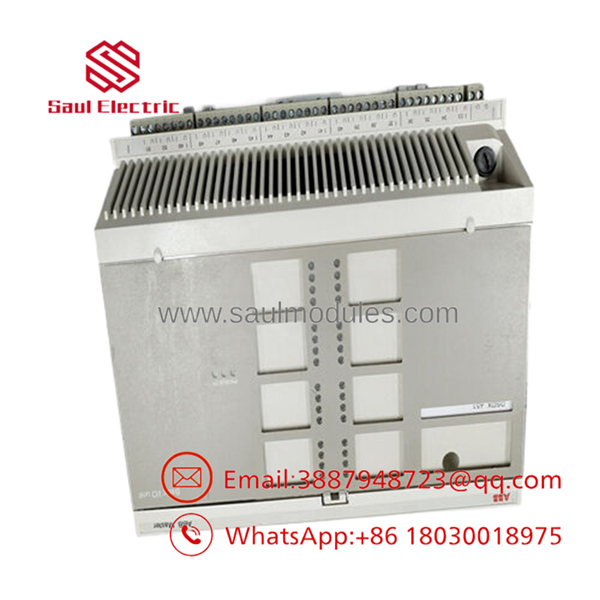

DSDX451

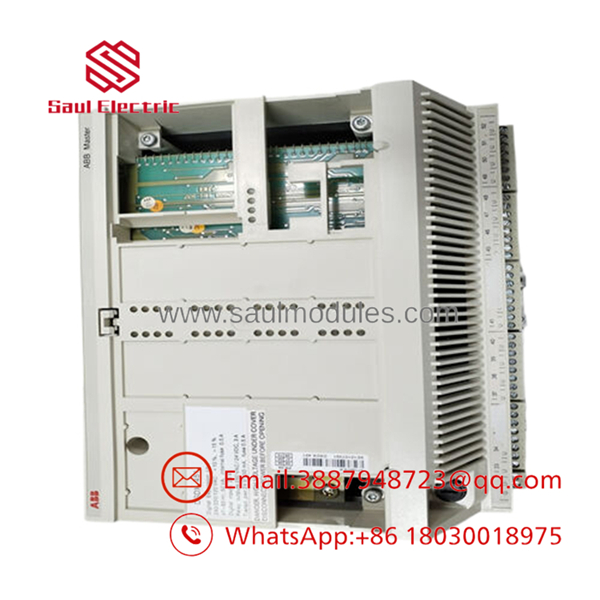

DSDX451

Frequently Asked Questions

Can this unit be hot-swapped under power?
No. Treat it as a powered-down replacement unless the exact ABB documentation says otherwise. On older remote I/O gear, live removal is how people create extra downtime.

Is the DSDX451 obsolete?
Yes, it is a legacy ABB spare with limited stock availability. In practice, that means surplus or refurbished units are the normal buying path.

What is the direct replacement if this unit is unavailable?
There is no safe generic substitute. The replacement has to match the same ABB Advant S400 architecture, I/O count, and wiring arrangement. Verify that before buying.

Will I lose my programming when I replace the unit?
Usually no, because this is a remote I/O expansion unit rather than the main controller. The real risk is mismatch in addressing or point mapping, so back up the system first.

Why is your price lower than ABB list price?
Because this part is usually sourced from surplus channels or refurbished inventory instead of fresh OEM production. That is normal for discontinued industrial hardware, but condition and warranty still matter.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the wiring and addressing photo step before removal. That one mistake can turn a quick swap into a long troubleshooting session.
