ABB DSPC174 3BSE005461R1 Processor Board Module

Description

Key Technical Specifications

Some electrical characteristics vary by system revision. Always verify compatibility with the installed controller before replacement.

Product Introduction & Supply Chain Strategy

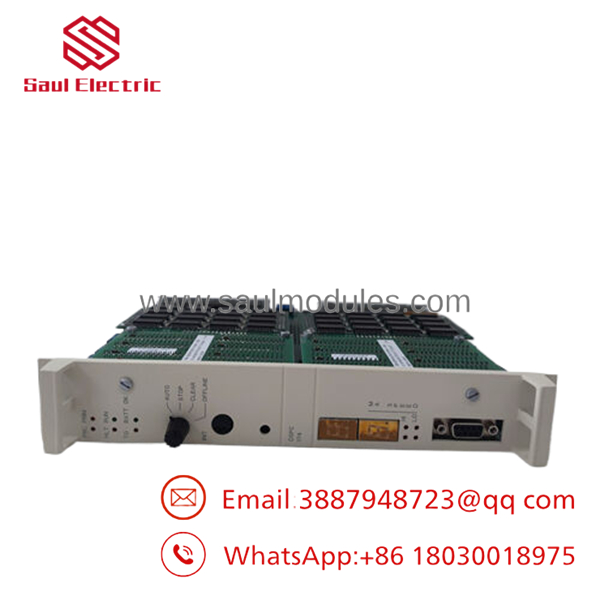

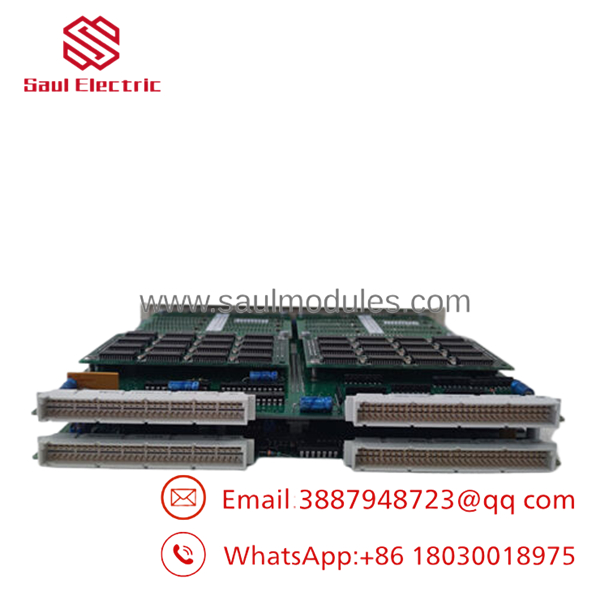

The ABB DSPC174 3BSE005461R1 is a processor board that serves as the central computing module within ABB industrial automation systems. It executes application logic, manages communication between I/O modules, and coordinates real-time control functions for continuous industrial processes.

Selecting a New Surplus DSPC174 provides genuine OEM hardware while avoiding the uncertainty associated with refurbished electronics. Because this processor belongs to a mature ABB platform, maintaining buffer stock, reducing lead time variability, implementing vendor consolidation, and planning a last-time-buy strategy can lower Total Cost of Ownership (TCO) while protecting production from unexpected processor failures.

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO).
2. Shut down the controller following ABB procedures.
3. Wear a grounded ESD wrist strap.
4. Record:
   • Processor firmware revision
   • Rack location
   • Communication settings
5. Photograph all cable and connector positions.

Stage 2 – Removal

1. Verify complete power isolation.
2. Disconnect communication cables.
3. Release retaining hardware.
4. Remove the processor evenly without twisting.
5. Inspect the backplane connectors for contamination or bent pins.

Stage 3 – Installation (Clone & Seat)

1. Confirm replacement part number 3BSE005461R1.
2. Install the module into the identical rack position.
3. Ensure full connector engagement.
4. Reconnect all communication cables.
5. Verify grounding before energizing.

Stage 4 – Power-On & Testing

1. Restore system power.
2. Confirm processor status LEDs indicate normal startup.
3. Verify controller communication.
4. Check all I/O modules are recognized.
5. Run application diagnostics before returning the process to production.

DSPC174 3BSE005461R1

DSPC174 3BSE005461R1

Firmware/Software Versions & Upgrade Notes

• Verify the replacement processor supports the existing ABB controller software revision.
• Back up controller configuration before replacement.
• Record firmware versions before removing the original CPU.
• Avoid upgrading firmware during processor replacement unless required by ABB documentation.
• Installing mismatched firmware revisions may result in communication faults or controller startup errors.
• After commissioning, verify network communication, I/O scanning, and application execution before releasing the system to operation.

Frequently Asked Questions (FAQ)

Q1. Is this processor board genuinely new?

Yes. This product is supplied as New Original / New Surplus. It is not used, not removed from a decommissioned plant, and not refurbished. Each module undergoes quality verification before shipment.

Q2. Why is New Surplus less expensive than purchasing directly from ABB?

New Surplus inventory comes from excess project stock and authorized surplus channels. It offers genuine OEM hardware at a lower acquisition cost while avoiding the reliability risks associated with refurbished products.

Q3. Is the DSPC174 considered obsolete?

The belongs to a mature ABB control platform. Since OEM production is limited, maintaining 1–2 processor modules as buffer stock and planning a last-time-buy are recommended for plants relying on these systems.

Q4. Can the processor be replaced while the controller is energized?

No. Processor modules should only be replaced after the control system has been shut down according to ABB maintenance procedures. Removing a CPU while energized can interrupt the entire control system and may damage hardware.

Q5. Will replacing the processor erase my application program?

Application storage depends on the specific ABB controller architecture. Before replacement, always back up the control program, hardware configuration, and firmware information to simplify commissioning.

Q6. What quality inspections are completed before shipment?

Every New Surplus module undergoes:

• OEM part number verification
• Serial number traceability
• Visual inspection
• Connector integrity inspection
• Electrical verification where applicable
• ESD-safe packaging
• Final QC approval documentation

Q7. What inventory strategy is recommended?

For mission-critical automation systems:

• Maintain as on-site buffer stock.
• Use vendor consolidation to reduce procurement complexity.
• Implement cross-site inventory sharing across multiple plants.
• Monitor lifecycle status and execute a last-time-buy before remaining inventory becomes difficult to source, reducing lead time variability and lowering long-term Total Cost of Ownership (TCO).
