ABB DSTXW110 Input Board

Description

Key Technical Specifications

• Product Type: Digital input board.
• ABB Type Designation: DSTXW110.
• Order Number: 57160001-AAP.
• Function: Digital input interfacing.
• Application: ABB industrial control systems.
• Form Factor: Board-level module.
• Availability: Limited, legacy spare.
• Condition: New surplus or refurbished tested, depending on inventory.

Product Introduction

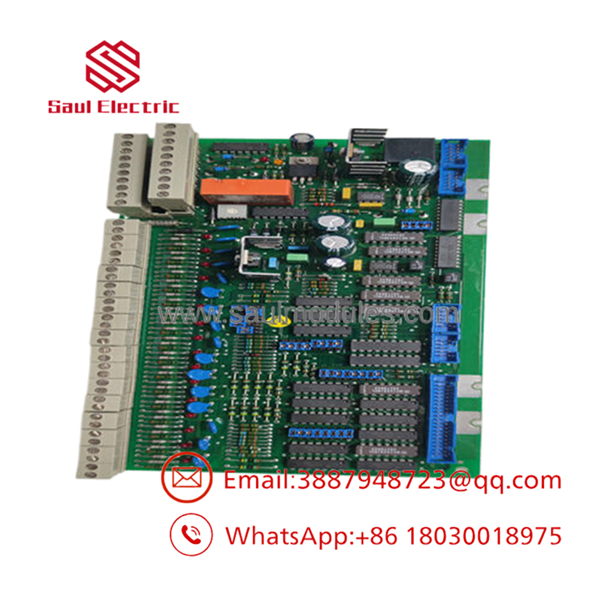

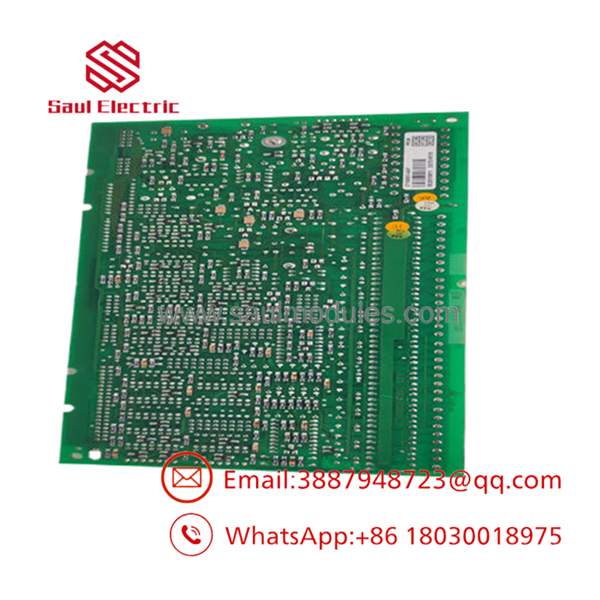

The ABB DSTXW110 is a digital input board identified with order number 57160001-AAP. Available source listings describe it as an ABB input module used in industrial automation and control systems.

This is a legacy ABB spare, so the main buying concern is fit and compatibility with the installed system rather than any modern feature set. Before installation, verify the exact board role, connector style, and system family so you do not mix up a similarly named part with a different function.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the control configuration, document all field wiring, and photograph any connectors, jumpers, or board labels.
4. Verify the replacement part is the exact DSTXW110 / 57160001-AAP version before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the access cover or panel.
2. Label and disconnect the wiring carefully; do not force connectors.
3. Release the board from its mounting position and pull it straight out.
4. Inspect the connectors, backplane, and board area for dust, corrosion, bent pins, or heat damage.
5. ⚠️ Note: Keep the old board until the replacement is fully commissioned.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model and order number match the removed unit.
2. Configuration clone is critical: copy the exact wiring layout, connector orientation, and any jumpers or hardware settings from the old photos.
3. Seat the board fully and secure it in place.
4. Reconnect all wiring using the original labels and routing.
5. Check the self-list: [] settings match, [] wiring secured, [] board seated, [] fasteners locked.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to confirm there are no shorts and that the supply is correct.
2. Power up the rack or cabinet first, not the field devices.
3. Verify any status indicators if present.
4. Confirm the system recognizes the board and the input states respond correctly.
5. Run a point-by-point functional test on the related input channels.
6. ⚠️ Troubleshooting Note: If inputs do not read correctly, check wiring, connector seating, board compatibility, and signal source first.

DSTXW110

DSTXW110

Frequently Asked Questions

Can this board be hot-swapped under power?
No. Treat it as a powered-down replacement unless the exact ABB documentation says otherwise. With older control boards, live removal is how you create avoidable downtime.

Is the DSTXW110 obsolete?
Yes, it is a legacy ABB spare with limited stock availability. In practice, that means surplus or refurbished units are the normal buying path.

What is the direct replacement if this board is unavailable?
There is no safe generic substitute. The replacement has to match the same ABB system family, board function, and connector arrangement. Verify that before buying.

Will I lose my programming when I replace the board?
Usually no, because this is an input board rather than the main controller. The real risk is a mismatch in wiring or board role, so back up the system first.

Why is your price lower than ABB list price?
Because this part is usually sourced from surplus channels or refurbished inventory instead of fresh OEM production. That is normal for discontinued industrial hardware, but condition and warranty still matter.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the wiring photo and connector check before removal. That small mistake can turn a quick swap into a long troubleshooting session.
