Product Introduction & Engineering Value
Medium-voltage drives rarely fail because an entire inverter suddenly stops working. More often, a single power cell develops communication or gate-drive faults that bring the complete drive offline. The controller inside that power cell becomes the first place experienced drive engineers investigate.
The ABB GDD471A001 (2UBA002322R0001) is the control board used within ABB ACS580MV medium-voltage drive power units. It receives optical PWM commands from the master controller, generates precise IGBT gate-drive signals, supervises power-cell operating conditions, and continuously monitors voltage, current, temperature, and protection status to ensure safe inverter operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | GDD471A001 |
| ABB Part Number | 2UBA002322R0001 |
| Product Type | Power Unit Control Board |
| Compatible Platform | ABB ACS580MV Medium Voltage Drives |
| Primary Function | Power cell control and IGBT gate drive management |
| Communication | Fiber-optic communication with master controller |
| Gate Drive | Multi-channel IGBT pulse outputs |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overtemperature, fiber-link monitoring |
| PCB Protection | Industrial conformal coating |
| Operating Temperature | -15°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Status Indicators | Multiple onboard diagnostic LEDs |
| Installation | Internal power-cell electronics assembly |
Field Application & The “Trench” Experience
A cement plant experienced repeated trips on a 6 kV raw mill drive. Event logs consistently pointed to a single inverter power cell, yet insulation testing, cooling fans, and the IGBT modules all passed inspection.
Maintenance engineers eventually traced the issue to intermittent fiber-optic communication within the power-cell controller. After replacing the GDD471A001, the power cell synchronized immediately with the master controller, all gate-drive diagnostics cleared, and the mill returned to continuous production during the same maintenance window.
Typical applications include:
- Medium-voltage mine conveyor drives
- Cement raw mill variable speed drives
- Steel rolling mill main motor drives
- High-power compressors in petrochemical plants
- Large boiler feed pump drive systems
Transparency SOP: QA & Testing
Before shipment, every GDD471A001 control board follows a documented inspection procedure.
- Verify the ABB model number and material number 2UBA002322R0001.
- Inspect the multilayer PCB for mechanical damage, contamination, and component integrity.
- Examine fiber-optic interfaces and edge connectors for wear or oxidation.
- Verify onboard diagnostic LEDs and controller initialization.
- Perform communication testing with compatible ABB drive hardware whenever available.
- Package the board in ESD-safe materials with industrial shock protection suitable for international shipment.

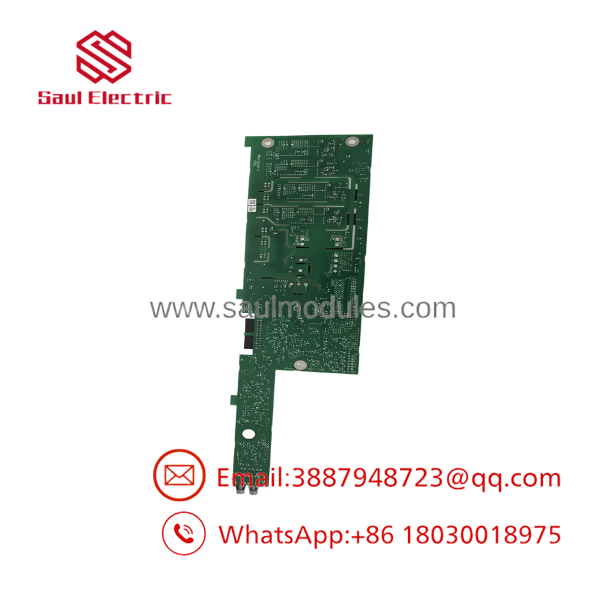

- GDD471A001

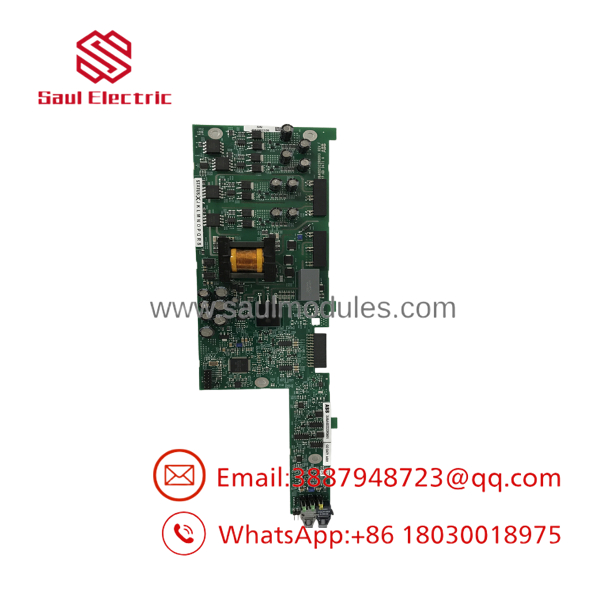

- GDD471A001
The Veteran’s Tech Trap Guide
⚠️ Don’t replace the IGBTs first.
Loss of gate-drive signals often appears identical to an IGBT failure. Always verify that the is transmitting proper drive pulses before replacing expensive power semiconductors.
⚠️ Inspect the fiber-optic network.
A damaged fiber connector or contaminated optical interface can generate communication alarms that resemble controller failures. Cleaning and testing the optical path may resolve the problem without replacing the board.
PRO TIP:
Always compare the complete ABB material number. Different control board revisions may appear physically identical while supporting different firmware or power-cell generations. Verify the drive serial number and spare-parts list before ordering.
⚠️ Check auxiliary power rails.
Unstable low-voltage supplies inside the power cell can trigger controller resets and false hardware fault indications even when the itself is fully functional.
Dynamic FAQ
Q1. What is the primary function of the ABB ?
The is a power unit control board used in ABB ACS580MV medium-voltage drives. It controls IGBT switching, monitors operating conditions, communicates with the master controller through fiber optics, and manages protection functions for an individual power cell.
Q2. Which ABB drive family uses this board?
The board is designed for ABB ACS580MV medium-voltage variable frequency drives and is installed inside individual inverter power cells. Compatibility should always be verified using the ABB material number 2UBA002322R0001.
Q3. What protection functions are integrated into the ?
The board supervises overcurrent, overvoltage, undervoltage, overtemperature, and fiber-optic communication while blocking gate-drive pulses if abnormal operating conditions are detected.
Q4. Are New Surplus boards genuine ABB products?
Yes. New Surplus inventory consists of unused original ABB hardware stored under controlled warehouse conditions. Every board is inspected for identification, connector condition, PCB integrity, and physical appearance before shipment.
Q5. Can the board be replaced without reprogramming the drive?
In many maintenance situations, yes. If the replacement board matches the original hardware revision and material number, the existing drive configuration is typically retained. Nevertheless, ABB recommends verifying communication, diagnostics, and power-cell status during commissioning.
Q6. Is warranty available?
Yes. Both New Surplus and professionally refurbished control boards are available with warranty coverage. Warranty duration depends on product condition and is confirmed with the sales quotation.
