ABB GRBTU 3BSE013175R1 S800 I/O Bus Termination Unit

Description

Product Introduction & Engineering Value

Unexplained communication timeouts on a remote S800 I/O drop usually trace back to signal reflections along an unterminated bus line. The ABB GRBTU (3BSE013175R1) is the official bus termination unit engineered to match impedance at the physical end of an S800 ModuleBus cluster.

By dampening signal reflections and high-frequency noise interference across the backplane line, the GRBTU stabilizes communication between the FCI (Fieldbus Communication Interface) and downstream S800 I/O modules. Installing or replacing a missing GRBTU guarantees clean packet transmission across high-speed controller networks.

Technical Specifications

• System Compatibility: ABB S800 I/O Communication drops (TB810, TB811, TB820 FCI drops)
• Function: Electrical bus impedance matching and termination resistor network
• Impedance Rating: Matched to standard ModuleBus characteristic impedance (75 Ω nominal)
• Power Requirements: Passive component (0 W external power consumption)
• Installation Location: Plugs directly into the last ModuleBus extension connector or TB805/TB806 cable end
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Enclosure Rating: IP20 compact industrial housing
• Weight: ~0.05 kg (0.11 lbs)

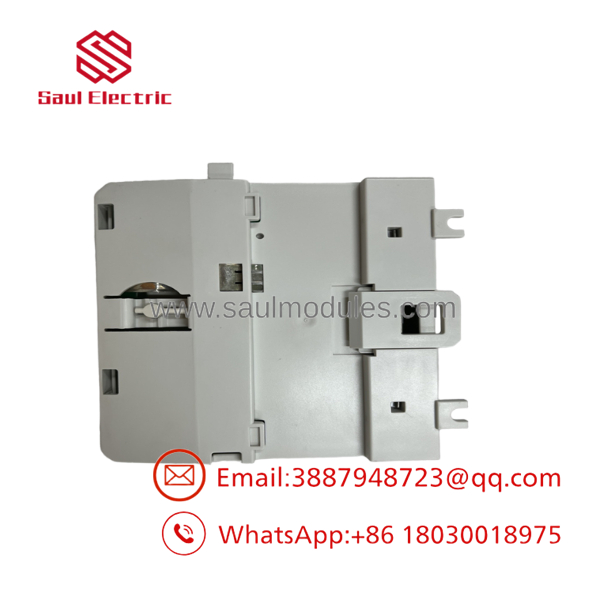

GRBTU 3BSE013175R1

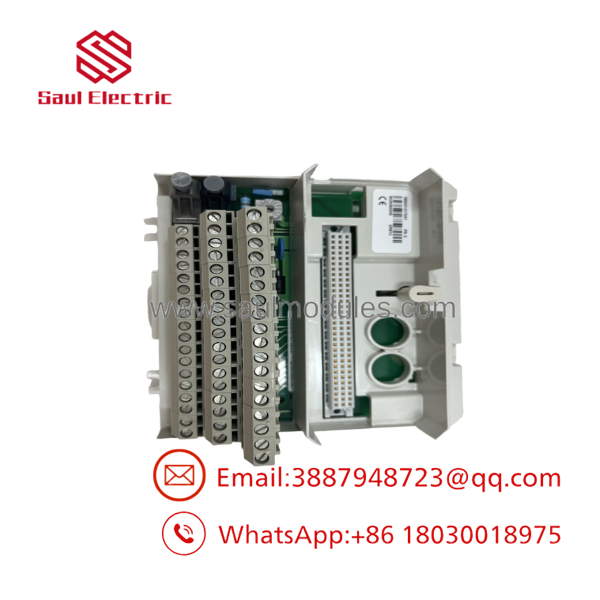

GRBTU 3BSE013175R1

Field Application & The “Trench” Experience

The Trench Story

A chemical processing plant added a second cluster of S800 I/O modules to an existing AC 800M controller rack during an expansion. After powering back up, the controller repeatedly logged intermittent “ModuleBus Communication Failure” errors, causing field output channels on the new rack to toggle into fail-safe mode.

The control technician verified that all ModuleBus extension cables were plugged in tight, but noticed the far end of the new expansion rail was left uncapped. The original GRBTU terminator plug had been lost during the retrofit. The technician snapped a spare GRBTU (3BSE013175R1) onto the final bus port, immediately suppressing signal ringing across the line. The FCI cleared all bus warnings, restoring 100% stable packet transfer across the expanded S800 drop.

Specific Niche Applications

• Petrochemical Batch Plant I/O Drops: Preventing high-frequency line noise and data packet corruption on extended ModuleBus runs.
• Power Station Turbine Control Systems: Ensuring reliable status feedback from distributed remote I/O clusters.
• Paper Mill Sectional PLC Racks: Stabilizing high-speed ModuleBus lines passing near high-power variable frequency drives.

Transparency SOP: QA & Testing

1. Visual & Structural Inspection: Check plastic latching tabs, guide pins, and internal gold-plated connector contacts under magnification for corrosion or mechanical distortion.
2. Impedance & Continuity Metering: Measure internal resistor bridge networks using a calibrated multi-meter to confirm resistance values sit within ±1% of factory tolerance.
3. Active ModuleBus Bench Test: Plug the GRBTU into the terminal end of an active test cluster (TB820 FCI with multiple I/O cards). Verify signal clean-up on a high-speed logic analyzer.
4. Vibration & Thermal Cycle Check: Expose the module to a thermal environment test (up to 55°C) to ensure internal passive components exhibit zero resistance drift under heat stress.

The Veteran’s Tech Trap Guide

• ⚠️ Never Leave the End of a ModuleBus Open: Running an extension cluster without a GRBTU terminator causes electrical signal reflections off the open wire ends. This leads to sporadic communication drops that look like faulty I/O cards or bad power supplies.
• PRO TIP: Do Not Force the Connector Latch. The GRBTU uses a keyed connector interface. If it does not slide easily onto the ModuleBus port, verify alignment—forcing it will bend or snap the internal backplane pins on your adjacent termination unit (TU8xx).
• ⚠️ Verify Cluster Length Limits: Adding a GRBTU ensures signal integrity, but it cannot overcome distance limitations. Ensure your total ModuleBus extension cable length remains strictly within ABB’s specified limits for your given FCI model.

Dynamic FAQ

Q: Does the GRBTU (3BSE013175R1) require any software configuration or address setting? A: No. The GRBTU is a passive physical terminator plug. It contains no software or address switches and works instantly upon being seated at the end of the ModuleBus.

Q: Can I use a third-party 75-ohm resistor instead of an original ABB GRBTU? A: It is strongly discouraged. The GRBTU features precise pin matching, shielding, and exact resistance networks designed to seat securely into mechanics without risking short circuits across logic lines.

Q: Where exactly is the GRBTU installed in an rack? A: It is installed in the expansion connector port of the very last ModuleBus termination unit (TU) or extension cable in an I/O cluster drop.

Q: Are these GRBTU units available as authentic original ABB parts? A: Yes. We stock genuine, fully inspected OEM ABB GRBTU (3BSE013175R1) units in both New Surplus and Certified Refurbished conditions, backed by a 1-year replacement warranty.
