ABB HIFG423365R0001 AGIE 625.351.2 PEP.05A Circuit Board Module

Description

Product Introduction

The ABB HIFG423365R0001 (AGIE part designation 625.351.2 PEP.05A) serves as a specialized power supply and signal conditioning circuit board module. Designed for high-precision industrial machinery and specialized power regulation racks, this board converts raw supply power into filtered DC voltages while isolating control bus logic from high-power field interference.

Unlike generic off-the-shelf power modules, the HIFG423365R0001 integrates onboard power filtering alongside high-speed optocoupler isolation. This hybrid design stops electrical noise generated by heavy discharge equipment or high-frequency switching from feeding back into sensitive central microprocessor racks. If your machine experiences erratic control faults, swapping out a degraded 625.351.2 board frequently cures the headache.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a legacy AGIE EDM or ABB specialty power rack drops offline, every hour spent troubleshooting costs thousands of dollars in ruined production schedules. A failing HIFG423365R0001 board rarely fails quietly. Usually, ripple voltage on the internal rails triggers mysterious CPU watchdog trips or random axis feedback dropouts that leave techs scratching their heads.

• Tool & Die Manufacturing – Precision EDM Discharge Control – Requires stable board-level DC rails to prevent pulse generator timing drift during long burn cycles.
• Specialized Power Distribution Racks – Sub-rack Power Regulation – Provides isolated auxiliary voltage to low-level processor logic surrounded by noisy thyristor drives.
• Metalworking & Machining Centers – Legacy Machine Tool Retrofits – Serves as a direct drop-in replacement card to restore original timing and voltage levels without rewiring the cabinet.

Field Case Study

A tool-and-die shop running an AGIE 625-series machine hit a hard stop during a critical tool steel job. The machine threw continuous logic-rail fault codes. The field tech spent four hours checking external power supplies before scoped measurements revealed a 1.2V AC ripple on the 5V DC control bus coming off the PEP.05A board. Dried-out electrolytic capacitors on the original 20-year-old HIFG423365R0001 board were ruining the DC line. Dropping in a fully tested surplus card cleared the voltage noise instantly, bringing the machine back online in under 30 minutes.

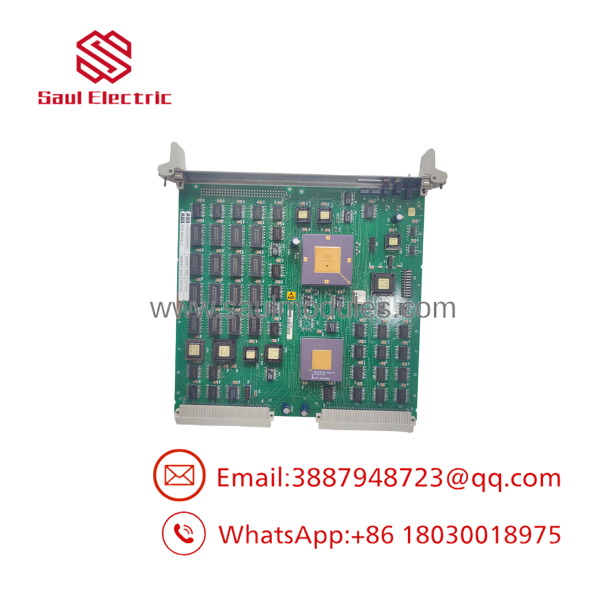

HIFG423365R0001 AGIE 625.351.2 PEP.05A

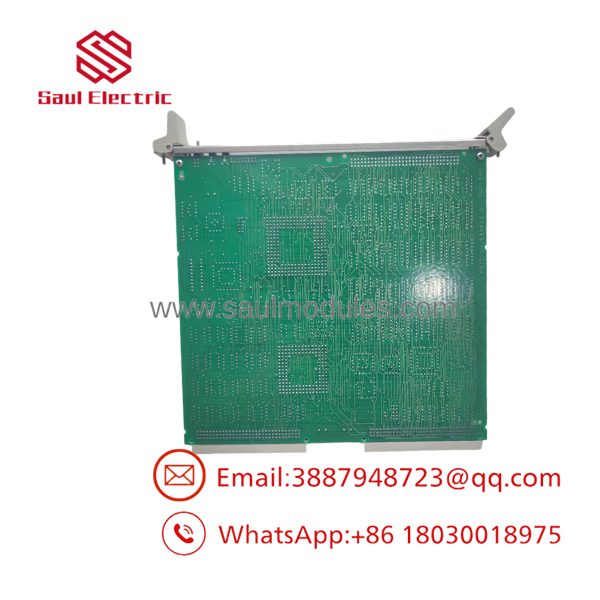

HIFG423365R0001 AGIE 625.351.2 PEP.05A

Transparency SOP: Quality Assurance & Testing

We do not pull a card out of storage and throw it directly into a shipping container. Every ABB passes a strict 5-stage bench validation process:

1. Inbound Visual Inspection: We verify OEM traces, check solder joints under magnification, inspect for blown tantalums, and confirm authentic component markings.
2. Power-On & Rail Verification: The board is mounted into a specialized test rack. We apply rated input voltages and measure all DC output rails under static and dynamic loads using calibrated multimeters.
3. Signal & Ripple Analysis: An oscilloscope checks output voltage ripple and confirms clean square-wave signal transmission across all optocoupler channels.
4. Thermal Stress Check: The board runs under 80% maximum rated load inside a thermal enclosure to verify thermal stability before final sign-off.
5. Anti-Static Packaging: Post-QC, the card is cleaned with isopropyl alcohol, dried, sealed in ESD shielding bags, and packed with high-density foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Watch out for worn backplane connectors! Before seating this replacement card, look inside the sub-rack card cage with a flashlight. Pushed-back or bent backplane pins will mangle the female gold fingers on your new card.
• ❗ Inspect adjacent power components first. If your original board suffered a catastrophic burn mark near the power traces, check the upstream power supply before plugging in the new module. A shorted main transformer rail will blow your replacement board the moment you flip the main disconnect.
• ⚠️ Do not adjust factory trim pots. You will notice blue or white potentiometer dials on the board surface. These are factory-calibrated for reference voltages. Turning them without an oscilloscope and official calibration chart will throw off the board’s voltage detection thresholds.
• ❗ Practice strict ESD safety. Modern replacement stock for this series is scarce. Handle the card strictly by the faceplate or plastic pull tabs. Never touch the exposed edge-connector gold fingers with bare hands.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the ABB hot-swappable?

A: No. Pulling this card while the sub-rack backplane is energized can arc the power pins and destroy sensitive ICs on the board. Always shut off main system power and discharge the DC bus before pulling or inserting the module.

Q: Why does the board carry both ABB and AGIE part numbers?

A: ABB manufactured specialized control sub-assemblies and boards directly for AGIE machine tool systems. The ABB part number matches the OEM manufacturing tracking number, while 625.351.2 and PEP.05A represent AGIE’s system assembly codes. They are completely identical in function.

Q: What condition are these modules in, given that they are discontinued?

A: We supply these cards primarily as tested New Surplus or certified Refurbished units. New Surplus items come from unused factory spares, while Refurbished units undergo full component-level reconditioning and bench testing before entering inventory.

Q: What warranty comes with this replacement card?

A: Every board comes with a full 12-month warranty. If the board fails under normal operating conditions within one year, we will replace it or issue a full refund.

Q: Can I replace a PEP.05 revision with a PEP.05A revision?

A: In most cases, yes. The “A” suffix indicates a minor hardware revision (often updated trace routing or upgraded capacitor ratings) that maintains 100% backward compatibility with earlier PEP.05 sub-racks.
