Description
Key Technical Specifications
| Parameter | Specification |
| Part Number | 3BHE021951R1024 (Interchanges with revision suffix 3BHE021951R0124) |
| Model Code | KVC758A124 (Also designated as KVC758A124-PLCMO) |
| System Compatibility | ABB ACS5000 Water-Cooled MV Drives, select ACS800/ACS880 configurations |
| Board Category | IPS DUAL Voltage Subprint / Analog I/O Control Module |
| Power Distribution | Interfaces with 24 V DC system controls and high-voltage excitation sub-circuits |
| Signaling Isolation | Integrated high-dielectric optical and galvanic isolation barriers |
| Communication Support | DriveBus, Modbus RTU, or Profibus via companion interface modules |
| Weight | Approximately 1.25 kg |
| Country of Origin | Switzerland / Sweden |
Product Introduction
The ABB KVC758A124 (part number 3BHE021951R1024 / 3BHE021951R0124) is a highly precise, rugged control board deployed predominantly within ABB’s high-power ACS5000 water-cooled medium voltage AC drives and heavy excitation setups. Serving primarily as an IPS Dual Voltage Subprint, this board regulates sub-plate voltage references and conditions critical analog/digital feedback signals. By processing drive telemetry at the hardware level, it facilitates precise speed, torque, and regenerative braking control for giant industrial motors driving large pumps, fans, and compressors.
To ensure safety in high-power environments, the KVC758A124 incorporates heavy galvanic isolation. This shielding separates high-power converter voltage states from low-voltage microprocessors (like the AC 800M or AC 800PEC controllers), preventing electrical noise, line surges, and harmonic fluctuations from disrupting control logic. Because the ACS5000 platform utilizes highly specialized, proprietary components that are no longer in mass production, maintaining verified KVC758A124 board replacements is key to preventing catastrophic downtime in power generation, chemical processing, and marine propulsion plants.

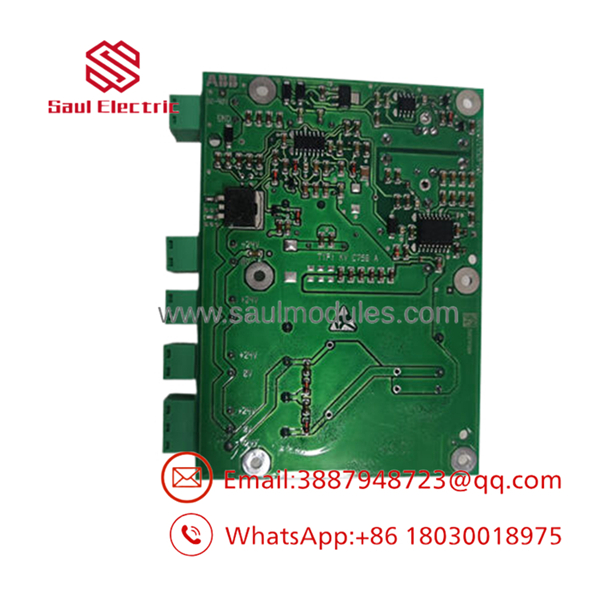

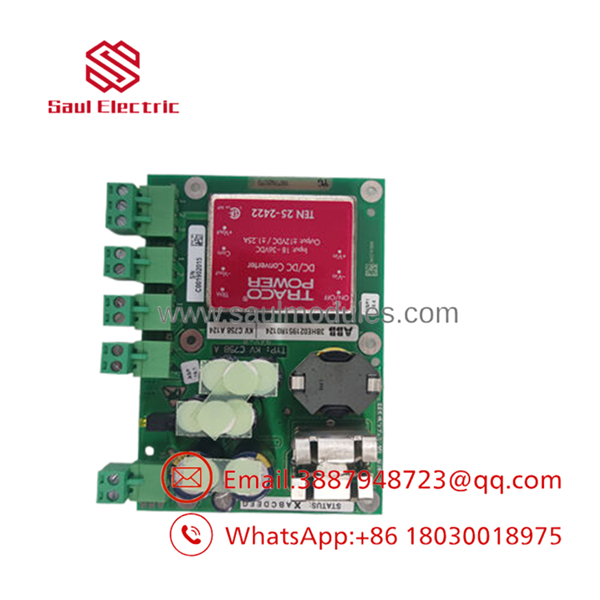

- KVC758A124 3BHE021951R1024
- 3BHE021951R1024
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| Inverter reports “Voltage Subprint Fault” or “IPS Error” | Component degradation on the voltage reference circuits | ✅ High | Inspect the onboard status LEDs. If the red fault LED is illuminated, measure the reference voltage levels on the board test pins. | If reference voltages deviate from the target values despite clean input power, the board must be replaced. |
| Erratic or missing speed/torque feedback measurements | Damaged optocouplers or fractured traces on the analog signal pathways | ✅ High | Verify incoming sensor signals at the board terminals. Check if the controller registers live value transitions or triggers intermittent open-circuit faults. | If field instruments are verified functional but the drive cannot read the input channels, the ‘s signal conditioning stage is damaged. Swap the card. |
| Complete drive network interface offline | Failed transceiver chips on the auxiliary communication card | ❌ Low | Test communication from the controller to adjacent drive units. Check the health of the primary DriveBus/Modbus interface modules. | The issue likely lies in the dedicated communication interface board or broken fiber-optic/copper cables. |
| Water-cooled drive triggers over-temperature or flow faults | Blocked internal piping or failed coolant pump auxiliary circuit | ❌ Low | Inspect the physical water-cooling manifold flow gauges and check the external heat exchanger loop pressure. | Do not pull the control card. Troubleshoot the mechanical cooling system or verify the external flow sensor loops. |
[!NOTE]
High-voltage drive diagnostics involve lethal voltage potentials. Discharge the DC bus capacitors completely and verify a zero-energy state using certified test instruments before opening panel doors or extracting the board.
Frequently Asked Questions (FAQ)
What is the difference between 3BHE021951R1024 and 3BHE021951R0124?
The part numbers represent identical functional boards. Suffix variations such as R1024 and R0124 denote minor production block changes, component sourcing updates, or country of origin manufacturing sweeps managed by ABB. They share identical mounting footprints, electrical ratings, and system configurations, making them completely interchangeable.
Is the hot-swappable while the drive cabinet is energized?
No. The acts as a critical signal conditioner and voltage subprint directly connected to the active converter control loops. Pulling this board while the system is live will drop voltage references, causing an immediate high-voltage DC bus imbalance, emergency shutdown faults, and potential damage to active switching semiconductors (such as IGCTs or thyristors). Always isolate all power before performing maintenance.
Does this control board require a firmware installation?
The functions primarily as a hardware-level voltage subprint and analog signal conditioning interface. It does not store complex, application-level user software. All control algorithms, firmware revisions, and parameter configurations are managed and pushed from the main AC 800PEC or drive control unit. When replaced, the card will automatically integrate into your existing control architecture.
Why is keeping a spare critical for water-cooled ACS5000 systems?
The water-cooled ACS5000 drive series operates in highly demanding, high-power environments (often exceeding several megawatts). Because these systems run continuously in critical roles—such as main propulsion on marine vessels or primary compressor drives in refineries—an outage is extremely costly. Because these legacy boards have long factory lead times, having a verified spare on-site is essential.
How do you verify the quality of your New Surplus and Refurbished boards?
Since these components belong to legacy-support categories, every incoming module is thoroughly inspected by our technical engineers. We check for physical damages, test trace integrity, inspect capacitor states for signs of thermal stress, and verify that the backplane pins are free of oxidation. Every unit is shipped in secure, anti-static protective packaging and is covered by our comprehensive 1-year replacement warranty.
