Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Synchronization Board |
| Function | Line voltage synchronization for drives |
| Application | Medium voltage drives (ACS2000 etc.) |
| Mounting | Internal to drive control section |
| Status Indicators | LEDs for sync status |
| Operating Temperature | 0 to +55 °C typical |
| Weight | Approx. 0.8 kg |
| Compatibility | Specific ABB drive families |
4. Product Introduction
The ABB LDSYN-101 3BHE005555R0101 is a synchronization board used in ABB medium voltage drive systems. It provides precise line voltage synchronization for controlled thyristor or converter firing.
This board ensures accurate phase angle detection and timing critical for soft starting and stable operation in high-power drive applications.
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Lock out drive power and verify zero voltage. Tools Required: ESD strap, screwdrivers, multimeter. Data Backup: Save drive parameters and note sync settings.
Stage 2: Removing the Old Board (10 minutes)
- Access the control compartment.
- Disconnect associated cables.
- Remove mounting screws.
- Extract the board carefully. ⚠️ Note: Document cable positions with photos.
Stage 3: Installing the New Board (10 minutes)
- Use ESD protection. Confirm exact part number.
- Install in the correct slot and secure.
- Reconnect all cables.
- Verify no bent pins. Self-Checklist: [ ] Secure mounting, [ ] All cables connected.
Stage 4: Power-On & Testing (15-20 minutes) Pre-Power Check: Verify supply voltages. Power-On Steps:
- Apply control power.
- Monitor sync status LEDs and drive diagnostics.
- Check phase synchronization readings.
- Perform drive start sequence test. ⚠️ Troubleshooting Note: Sync faults often result from wiring errors or input voltage issues. Verify signal quality.

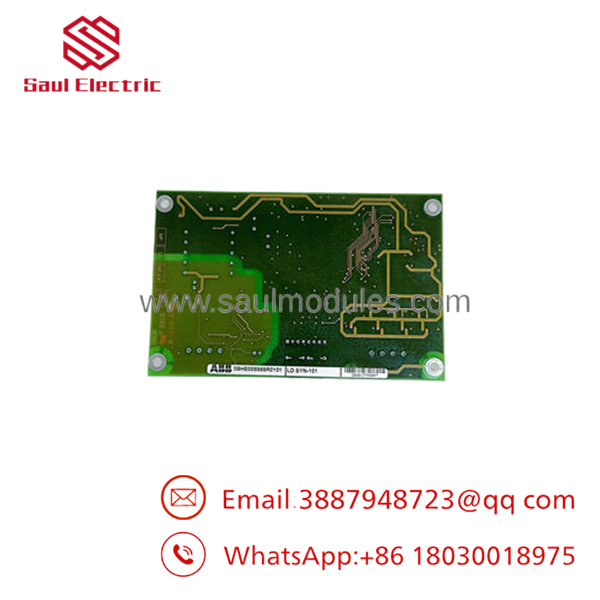

- LDSYN-101 3BHE005555R0101

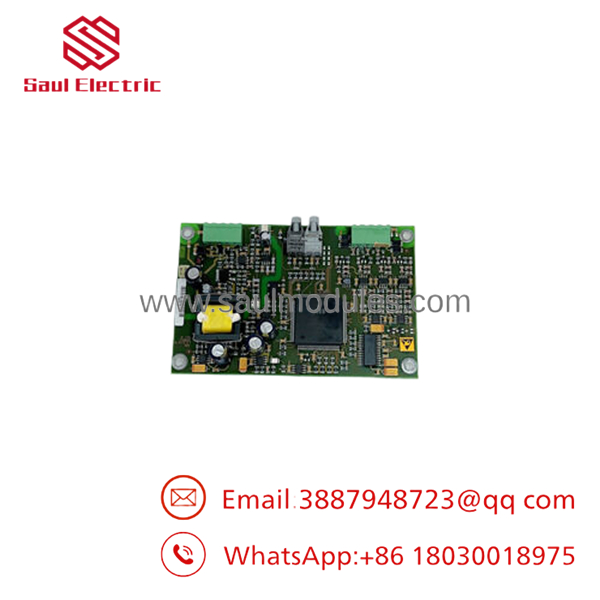

- LDSYN-101 3BHE005555R0101
6. Frequently Asked Questions (FAQ)
Can the sync board be hot-swapped? No. Power down the drive completely before replacement.
Is LDSYN-101 obsolete? It is a spare part for active medium voltage drive installations. New surplus provides continued support.
What is the primary role of this board? It detects line voltage zero crossings and phase information for proper converter timing and synchronization.
Will parameters need updating after replacement? Usually not, but confirm synchronization settings and perform a drive autotune if recommended by the manual.
Why is this board critical? Accurate synchronization prevents misfiring, reduces harmonics, and protects power semiconductors in high-power applications.
How do I verify correct operation? Monitor sync status, phase angles, and drive performance during commissioning. Test reports available upon request.
