ABB LT8978bV1 I/O Module

Description

3. Key Technical Specifications

• Part Number: LT8978bV1
• Type: Digital I/O Module
• Isolation: Port isolation up to 180 VDC (typical)
• Mounting: Rack or DIN compatible
• Weight: Approx. 2 kg
• Operating Environment: Industrial DCS conditions
• Applications: Distributed control systems, PLC signal handling
• Design: Modular for flexible configuration
• Reliability Features: High anti-interference capability

4. Product Introduction

The ABB LT8978bV1 is an I/O module for distributed control systems and programmable logic controllers. It handles digital input and output signals in process automation environments such as power, manufacturing, and infrastructure.

Plant teams use this module for reliable signal conversion, equipment control, and data acquisition. It supports various I/O configurations and integrates into ABB DCS architectures where channel density and isolation matter for stable operation.

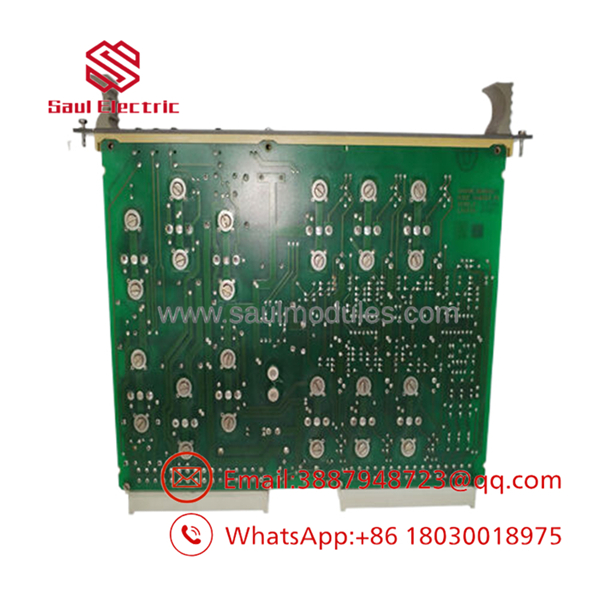

LT8978bV1

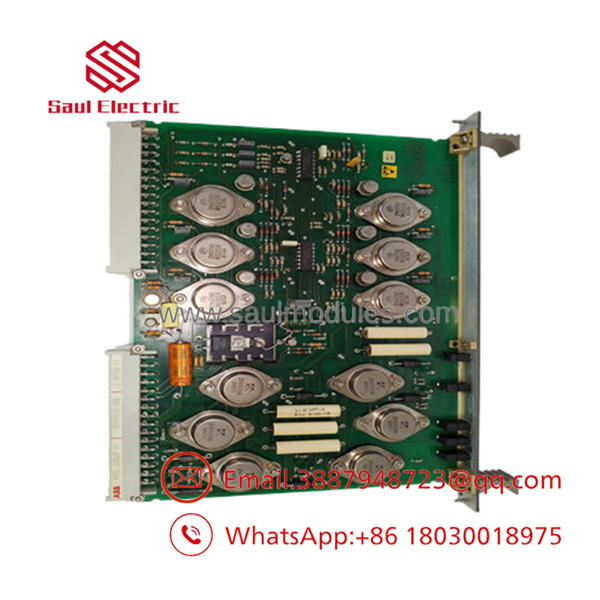

LT8978bV1

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10 minutes) ⚠️ Safety First: Inform operations, lock out/tagout, and wait for discharge. Tools Required: ESD strap, screwdriver, multimeter, labels, camera. Data Backup: Photograph wiring and settings, export I/O mappings.

Stage 2: Removing the Old Module

1. Remove front cover.
2. Label and disconnect field wiring.
3. Release latches and withdraw module.
4. Check rack for issues. ⚠️ Keep old module until new one is verified.

Stage 3: Installing the New Module (10 minutes)

1. Use ESD protection and verify part number.
2. Configuration Clone: Match any address or mode settings.
3. Insert and lock into position.
4. Reattach wiring. Self-Checklist: [ ] Settings match [ ] Wiring correct [ ] Secured

Stage 4: Power-On & Testing (10-15 minutes) Pre-Power Check: Test for shorts.

1. Power rack and watch LEDs.
2. Confirm module detection in controller.
3. Test I/O points with simulation.
4. Monitor for alarms. ⚠️ Troubleshooting Note: Channel faults usually tie to wiring or configuration mismatches.

6. Frequently Asked Questions (FAQ)

Can this module be hot-swapped under power? No. Shut down power to the rack to prevent damage to the backplane or I/O signals.

Is this model obsolete, and is it genuinely new? It remains a common spare for legacy and active DCS installations. Units are new original or surplus with testing documentation.

What is the direct replacement if this is out of stock? Refer to ABB cross-reference for equivalent I/O modules in your DCS rack. Matching form factor and channel type is essential.

Will I lose configuration when replacing? I/O mappings stay in the controller. Download backups and re-verify after swap.

Why is the price lower than OEM list price? Surplus stock with verified condition allows faster delivery and competitive pricing while maintaining full functionality under our warranty.
