Description
Key Technical Specifications
| Parameter | Value |
| Core Subsystem | ABB Modular Programmable Relay/Process Control Platform |
| Primary Host Interfaces | Advant Controller 410 (AC410) & Advant Controller 450 (AC450) |
| Communication Medium | Integrated direct onboard fiber optic transceiver ports |
| High-Speed Counter Inputs | 4 dedicated channels (16-bit register depth, 0 to 65535 capacity) |
| Input Frequency Threshold | Up to 100 Hz maximum sampling frequency |
| Digital Inputs (Logic 0) | Maximum +1 VDC threshold |
| Digital Inputs (Logic 1) | +3.5 VDC to +30 VDC working range (3K ohm input impedance) |
| Digital Outputs | 8 channels (Open-collector configuration, 30 VDC maximum rating) |
| Current Sinking Capability | Up to 375 mA maximum payload per individual output channel |
| Galvanic Isolation Rating | 3750 V optical isolation safety barrier |
| Card Physical Dimensions | 25 mm (W) x 130 mm (H) x 395 mm (D) |
| Net Component Weight | 0.38 kg (Approx. 0.84 lbs) |
Product Introduction
The ABB MPRC086444-005 is a high-performance Measurement Process Board (PWA) designed for legacy Advant OCS architectures, specifically matching the Advant Controller 410 (AC410) and Advant Controller 450 (AC450) central processing frameworks. Engineered to offload complex time-critical computational demands from the primary rack CPU, this processor card specializes in precision high-speed pulse counting and direct digital switching loops. It features four independent 16-bit counter channels capable of tracking fast-moving physical sensor metrics (such as turbine flow meters, pulse tachometers, or material line positioning indicators) with a high-degree of galvanic safety provided by an integrated 3750V optical isolation barrier.
A distinguishing feature of the MPRC086444-005 configuration is its native, direct onboard fiber optic interface. By routing telemetry and system data packets over non-conductive glass or plastic fiber media rather than traditional copper paths, the board completely eliminates ground loop noise and signal corruption caused by massive electromagnetic interference (EMI) typical in high-voltage industrial setups. The card also hosts eight built-in open-collector digital outputs rated up to 30V and 375mA per channel, enabling it to actuate fast-response solid-state interlocks and remote control relays locally without incurring the communication delays associated with routing signals across a crowded system bus.

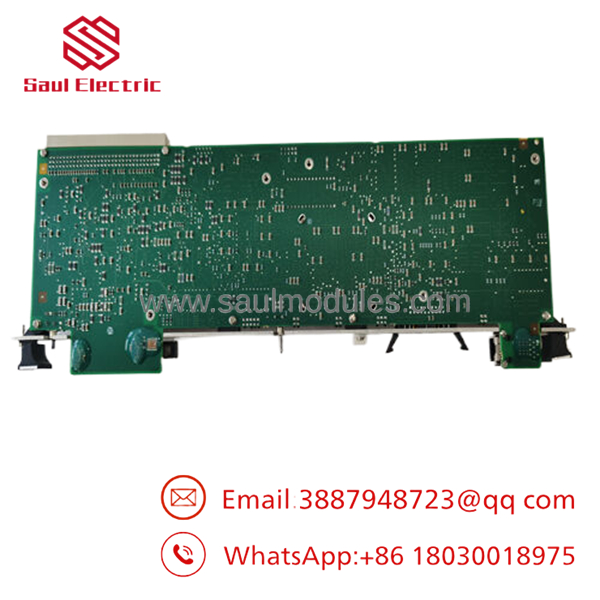

- MPRC086444-005

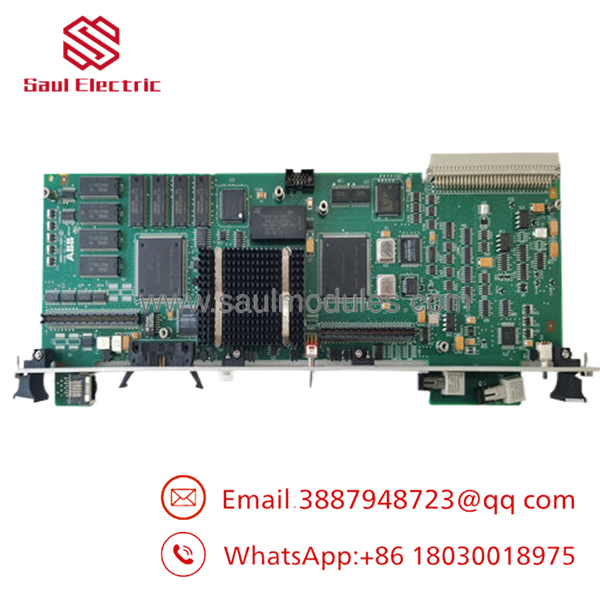

- MPRC086444-005
Technical Pitfall & Survival Guide
- The Memory Module Loss Lockout
❗ Risk: Assuming the MPRC086444-005 contains an onboard non-volatile memory block to retain its active logic parameters during a cold replacement swap. This card is physically delivered as a raw processor board without the matching auxiliary memory sub-module chip seated on its PCB. Sliding a unpopulated replacement card into the AC450 chassis will trigger a non-recoverable processor initialization fault on boot.
- Avoidance: Before inserting the New Surplus board into the active controller frame, carefully extract the original failed board. Locate the small daughter-card memory chip, ground yourself to prevent electrostatic discharge (ESD), snap the chip out of its retaining socket, and carefully seat it into the matching socket of the replacement board.
- Fiber Optic Bend Radius Cracking
❗ Risk: Kinking or tightly binding the fiber optic cables connected to the direct optical transceiver ports during cabinet routing or when closing the rack frame door. Forcing a tight bend angle introduces micro-cracks in the fiber core, leading to extreme light attenuation, intermittent data dropouts, and sudden system watchdog timeouts.
- Avoidance: Maintain a minimum bend radius of at least 30 mm (approx. 1.2 inches) for all fiber cables routing to the front face of the module. Secure the fiber lines using loose, hook-and-loop velcro straps rather than tight plastic zip-ties to avoid pinching the protective cladding.
- Open-Collector Common Ground Float
❗ Risk: Failing to reference the external auxiliary power supply ground to the module’s output reference rail when using the 8 onboard open-collector channels. Because open-collector outputs function strictly as floating electronic switches that pull down to a common path, an isolated external loop will fail to register a state change, rendering your interlocks non-operational.
- Avoidance: Always link the negative reference leg (0V DC) of your external field instrument supply directly to the assigned module ground return pin on the terminal interface block. This creates a solid reference potential for switching up to 30V/375mA loads safely.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| AC450 controller logs a “Module Missing” or hardware fault | Broken fiber link, unseated card connector, or a missing memory module chip. | ✅ High | Inspect the front of the board to confirm fiber connectors are locked. Check that the memory daughter-card is properly seated in its slot. | If the hardware is seated correctly but remains unmapped by the system bus, swap the card. Remember to migrate your original memory module chip to the replacement unit. |
| High-speed counters freeze or miss pulses during operation | Input logic voltage failing to drop below the maximum +1V threshold for Logic 0. | ✅ High | Measure the incoming pulse square wave using an oscilloscope or high-frequency meter across the signal and ground pins. | If the low-state voltage is floating above +1V due to line resistance or signal leakage, the counter will miss states. Install a pull-down resistor or check field sensor grounding. |
| Open-collector outputs fail to actuate downstream relays | Missing external auxiliary power loop reference or blown internal output transistor. | ✅ High | Check for the proper +10V to +30V DC bias voltage at the external load. Jump the output pin to ground manually to test the field circuit. | If the external circuit responds to a manual ground jump but the module fails to trigger it under active code conditions, the channel’s output transistor is blown. |
Frequently Asked Questions (FAQ)
Does the MPRC086444-005 come standard with a pre-installed memory module?
No. The is a measurement process card that handles high-speed processing logic, but it relies on an external memory sub-module chip for parameter storage. When replacing a damaged board, you must physically transfer the existing memory chip from the old unit to the replacement card before powering up the system.
What is the primary purpose of the direct fiber optic interface on this board?
The onboard fiber optic interface provides high-speed data transmission with absolute electrical isolation. It prevents ground loops and shields the process data from high-frequency electromagnetic interference (EMI) common in industrial environments, such as those with large motor drives, switchgear, or heavy machinery.
Can I utilize the 8 built-in digital outputs to drive standard AC inductive control valves?
No. The 8 digital outputs are low-voltage DC open-collector channels rated for a maximum of 30 VDC and 375mA per channel. Attempting to connect an inductive AC load directly to these pins will destroy the output transistors. Always route these channels through intermediate solid-state or electromagnetic isolation relays to safely handle higher AC/DC power requirements.
What software environments are used to configure the counter parameters on this board?
Because this module is an integrated component of the Advant Controller 410/450 family, all input ranges, scaling values, and counter presets are configured within ABB’s standard engineering toolsets (such as AMPL / Advant Station engineering tools) as part of your primary controller application architecture.
Why should our procurement team opt for a New Surplus unit over a factory retrofit project?
Upgrading a legacy Advant Controller system to a modern control platform can require significant capital expenditure, engineering hours, and long plant shutdowns to rewrite and validate code. Ordering a New Surplus board provides a direct, drop-in replacement that restores your high-speed measurement loops in minutes, avoiding extended downtime and high modernization costs.
