Product Introduction & Engineering Value
When an ACS600 inverter develops unexplained gate faults or inconsistent feedback signals, the issue is not always in the IGBTs or the control processor. In many cases, the interface board between them deserves closer attention.
The ABB NINT-68 serves as the main circuit interface board within selected ACS600 MultiDrive systems. It transfers control commands from the drive controller to the inverter power section while returning critical measurement signals used for regulation, protection, and diagnostics. Because it sits between the control electronics and the power hardware, its condition directly affects overall drive reliability.
Technical Specifications
Manufacturer: ABB
Model: NINT-68
Product Type: Main Circuit Interface Board
Drive Family: ACS600 MultiDrive
Compatible Frame Sizes: Primarily R10i–R11i phase modules
Primary Function: Interface between control electronics and inverter power modules
Signal Distribution: Provides control signals to NXPP distribution boards and associated gate driver boards
Measurement Functions: Returns power-stage feedback and measurement signals to the drive controller
Cooling Method: Passive cooling within the drive cabinet
Installation: Internal PCB mounted inside ACS600 inverter phase module
Associated Boards: NXPP, NGDR, NGPS, NPOW, NDCU/NAMC depending on drive configuration
Diagnostic Support: LED indicators assist in identifying the hottest phase module during troubleshooting of parallel-connected inverter sections.
Field Application & The “Trench” Experience
A paper mill reported intermittent overcurrent alarms on one inverter section of a large winder drive. Power semiconductors tested normally, insulation resistance was acceptable, and replacing the gate driver boards produced no improvement.
Further investigation showed inconsistent measurement feedback originating from the NINT-68 interface board. After installing a replacement board and verifying all ribbon cable connections, the inverter resumed stable operation without replacing the power module.
Typical applications include:
- High-power paper machine sectional drives
- Steel rolling mill main drive systems
- Mining conveyor variable-speed drives
- Marine propulsion ACS600 MultiDrive installations

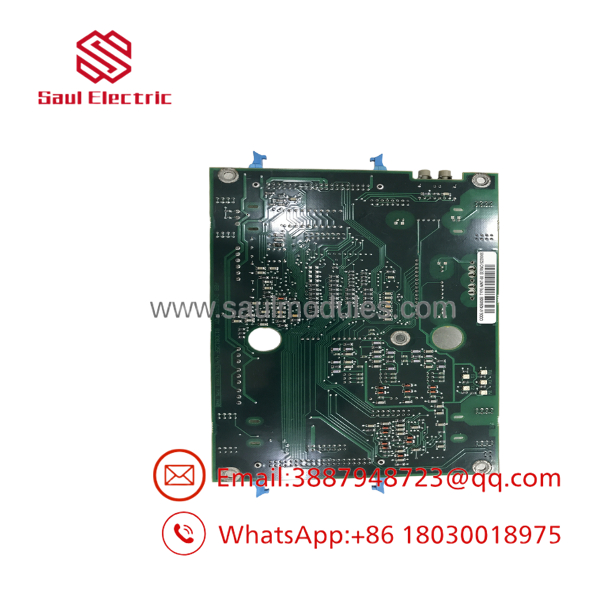

- NINT-68

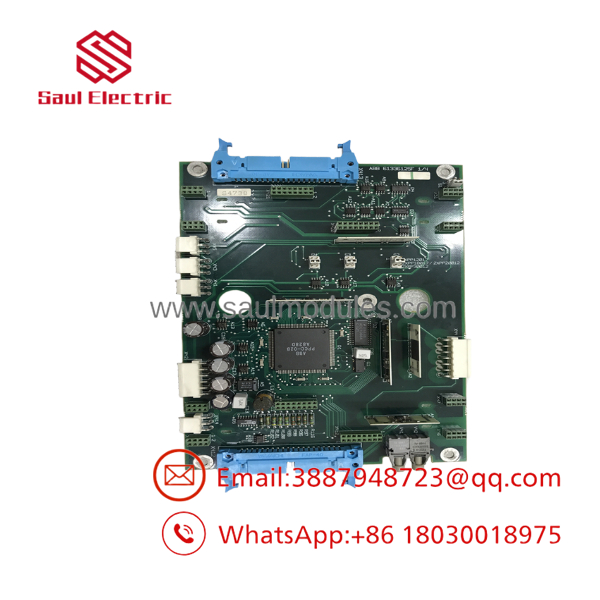

- NINT-68
Transparency SOP: QA & Testing
Every New Surplus or professionally Refurbished NINT-68 completes a documented inspection process before shipment.
- Verify ABB part number and hardware revision.
- Inspect PCB for damaged traces, overheated components, and connector integrity.
- Check ribbon cable connectors and pin alignment.
- Perform continuity and insulation verification.
- Install the board in a compatible ACS600 test platform to verify interface communication.
- Confirm diagnostic LED operation where applicable.
- Package using ESD-safe materials with traceable inventory documentation.
The Veteran’s Tech Trap Guide
⚠️ Don’t replace only the NINT board after a major power-stage failure. An IGBT explosion can also damage ribbon cables, NXPP boards, or gate driver circuits. Inspect the complete signal path before energizing the drive.
⚠️ Verify jumper settings before installation. Current adjustment jumpers and associated configuration settings must match the installed power plate rating. Incorrect settings can produce inaccurate measurements or improper drive operation.
PRO TIP: If one phase repeatedly operates hotter than the others, examine the NINT board LED indications before replacing expensive power modules. The onboard indicators are intended to assist with phase-level diagnostics in parallel inverter configurations.
PRO TIP: During installation, inspect every flat cable for damage and confirm that each locking mechanism is fully engaged. Poor cable seating frequently causes intermittent faults that resemble board failures.
Dynamic FAQ
Q1. What is the function of the ABB ?
The is the main circuit interface board used in ABB MultiDrive systems. It transfers control commands to the inverter power stage while returning measurement and diagnostic signals to the drive controller.
Q2. Which ABB drives use the ?
The board is primarily associated with MultiDrive systems, particularly inverter frame sizes R10i and R11i. Compatibility should always be verified using the drive type code and spare parts documentation.
Q3. Can the be replaced without changing drive parameters?
Generally, yes. Since the functions as a hardware interface board rather than the primary controller, application parameters typically remain unchanged. However, jumper settings and hardware compatibility must be confirmed before commissioning.
Q4. What symptoms indicate a faulty ?
Possible symptoms include inconsistent phase measurements, gate control faults, unexplained inverter trips, abnormal diagnostic LED behavior, or communication issues between the controller and the power section. These symptoms should be confirmed through systematic troubleshooting because cable or gate driver failures can produce similar behavior.
Q5. How do you verify New Surplus authenticity?
Each board undergoes model identification, hardware revision verification, visual inspection, electrical continuity checks, functional interface testing, and ESD-safe packaging before shipment.
Q6. What warranty is typically provided?
Warranty terms vary by supplier. Most professional industrial automation distributors offer a functional warranty for New Surplus and professionally refurbished boards following documented inspection and operational testing.
