Description
Key Technical Specifications
- Manufacturer: ABB
- Model: NPBU-42C
- Product ID: 64011821
- Type Designation: PPCS BRANCHING UN NPBU-42C
- Series: ABB PPCS / ACS600 MultiDrive
- Function: Branching unit for PPCS signal distribution
- Channel Count: 4-channel branching unit
- Mounting: DIN rail / cabinet installation
- Protection Rating: IP20 for enclosure installation
- Weight: 0.97 kg
- Dimensions: 5.1 cm x 27.9 cm x 10.2 cm
- Condition: New or refurbished depending on source
- Warranty: Commonly 30 days to 1 year from reseller
- Compatibility: Verify exact ACS600 / ACS800 application before ordering
Product Introduction
ABB NPBU-42C is a PPCS branching unit used in ABB drive systems, especially ACS600 MultiDrive applications. It distributes control signals across multiple channels inside the drive cabinet and is typically sourced as a spare for service and replacement work.
This is an obsolete spare in many channels, so part-number match matters more than generic description. Check the full label, suffix, and target drive family before ordering, because the wrong branching unit can waste hours in the cabinet.

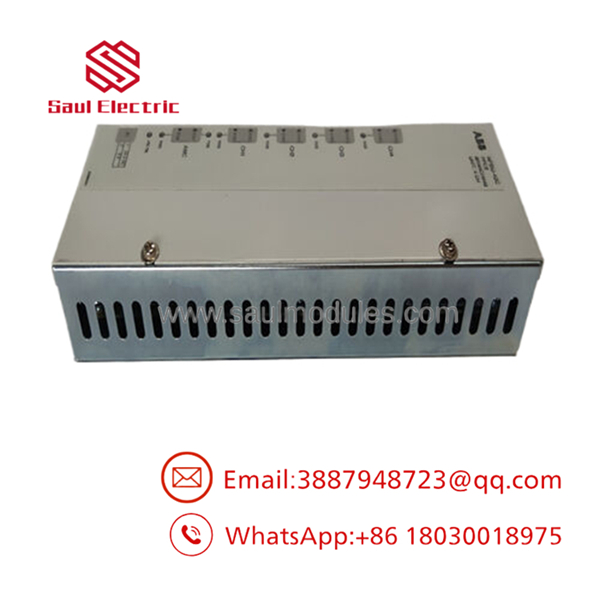

- NPBU-42C
- NPBU-42C
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| One drive module in the stack does not communicate | Faulty branching path or loose fiber/cable | ✅ High | Inspect fiber routing, connectors, and continuity from the control side | Reseat connectors and verify the full channel path before replacing the unit |
| Multiple modules drop out together | Branching unit failure | ✅ High | Check whether all affected channels fail at the same time | If the same branch fails across several modules, the NPBU is a strong suspect |
| Intermittent drive faults in cabinet | Connector contamination or poor seating | ✅ Medium | Inspect optical connectors and cabinet vibration points | Clean and reseat first; replace only if the fault follows the unit |
| No status on one branch | Open channel or damaged port | ✅ High | Compare branch status against a known-good channel | Swap channels if possible to isolate a dead port |
| Drive trips after cabinet maintenance | Miswired or reversed channel connection | ✅ Medium | Trace each fiber/cable against the cabinet drawing | Recheck the route carefully; do not trust memory |
| Unit appears dead | Upstream control issue, not the branching unit | ❌ Low | Verify the master/control source and power to the system | Confirm upstream supply and controller health before replacing this part |
| Random comms loss after warm-up | Heat, contamination, or aged connector | ✅ Medium | Run the system under load and watch channel stability | Inspect the enclosure cooling and connector condition |
If you are stuck, send photos of the label, the cabinet layout, and the fault log to technical support before ordering a replacement.
Frequently Asked Questions
Is NPBU-42C the same as 64011821?
Yes, 64011821 appears as the product ID for in market listings. I would still verify the label on the removed unit before buying, because suffix and packaging variants do show up.
What does this part do?
It is a PPCS branching unit. In plain terms, it splits ABB control signaling for the drive system so multiple modules can be coordinated in the cabinet.
Is this used in ACS600 systems?
Yes, the strongest references tie it to ABB ACS600 MultiDrive applications, and some listings also mention ACS800 hardware manuals. Confirm your exact platform before installation.
Can I hot-swap it?
No. Treat it as a cabinet control component, not a live-swappable item. Power down, follow lockout/tagout, and verify discharge before touching it.
Why is it often sold as surplus or refurbished?
Because this is an older ABB spare that circulates through reseller inventory rather than current factory stock. That usually lowers price, but it also means condition and revision control matter a lot.
What should I check before ordering?
Match the exact model, product ID, target drive family, and mounting style. If your cabinet uses fiber routing tied to the original unit, photograph the existing layout before removal.
Does it come with a warranty?
That depends on the seller. Market listings show anything from 30 days to 1 year, so confirm warranty terms before purchase.
