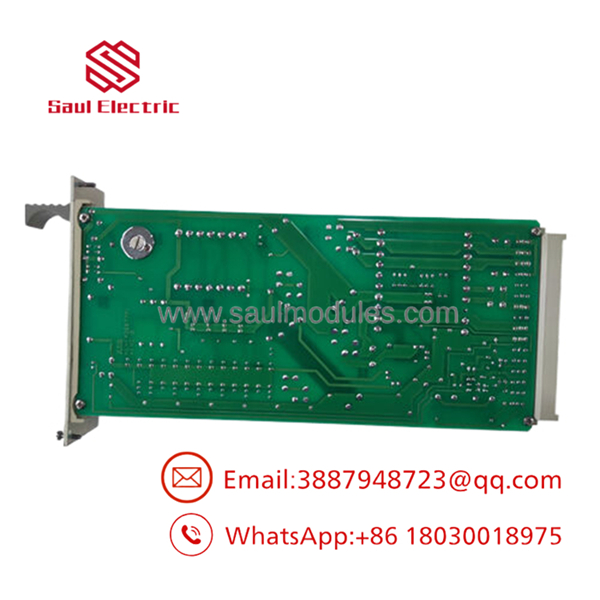

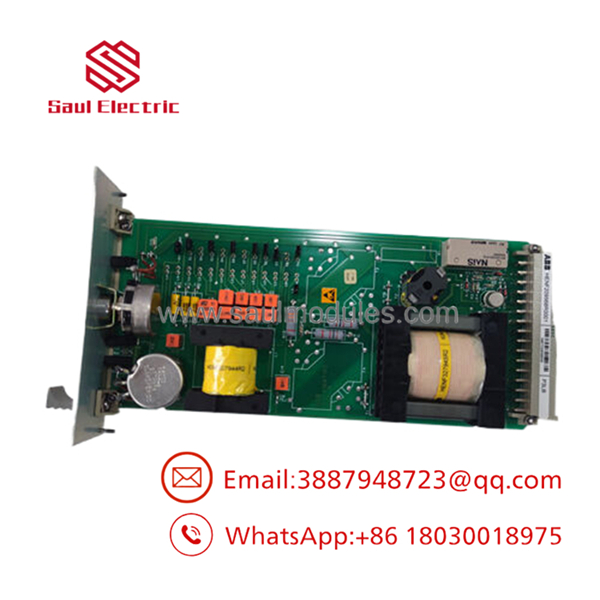

ABB P3LB HENF209568R0001 Control Board

Description

Key Technical Specifications

The exact communication interface and supported functions depend on the host ABB control platform in which the board is installed.

Product Introduction & Supply Chain Strategy

The ABB P3LB HENF209568R0001 is an industrial control board used within ABB automation systems to perform control processing, system communication, and coordination between hardware components. It is designed for continuous industrial operation where dependable control performance and system stability are required.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. Maintaining New Surplus inventory reduces Total Cost of Ownership (TCO), minimizes downtime caused by obsolete hardware, and eliminates many of the reliability risks associated with refurbished electronic boards.

P3LB HENF209568R0001

P3LB HENF209568R0001

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Apply lock-out/tag-out procedures.
2. Disconnect all AC and control power.
3. Wear a grounded ESD wrist strap.
4. Record the existing firmware revision.
5. Photograph all connectors, jumpers, DIP switches, and cable routing.
6. Back up controller parameters before replacement.

Stage 2 – Removal

1. Disconnect ribbon cables and terminal connectors carefully.
2. Remove mounting hardware.
3. Extract the control board evenly without flexing the PCB.
4. Inspect the backplane connectors for bent pins or contamination.

Stage 3 – Installation (Clone & Seat)

1. Verify the replacement part number is HENF209568R0001.
2. Duplicate all jumper and DIP switch settings exactly.
3. Install the board securely into the mating connector.
4. Reconnect all cables according to the original documentation.
5. Inspect all connectors before restoring power.

Stage 4 – Power-On & Testing

1. Verify the 24 V DC control supply.
2. Restore system power.
3. Confirm normal diagnostic LEDs.
4. Verify communication with the controller and connected I/O.
5. Perform a complete functional test before returning the equipment to production.

Firmware/Software Versions & Upgrade Notes

• Record the firmware revision of the original controller before replacement.
• Use a replacement board with a compatible hardware revision whenever possible.
• Restore controller parameters after installation if required.
• Avoid upgrading firmware during emergency maintenance unless compatibility requires it.
• Confirm communication with all connected modules before returning the system to service.
• Differences between hardware revisions may affect communication timing or parameter compatibility; verify compatibility before commissioning.

Frequently Asked Questions (FAQ)

Q1. Is this a genuine new ABB board?

Yes. This is a New Original / New Surplus ABB module. It has never been installed in production equipment and is not refurbished.

Q2. Why is New Surplus priced differently from OEM factory supply?

New Surplus inventory consists of genuine unused OEM components sourced through authorized surplus channels. It generally costs less than factory-direct procurement while providing substantially greater reliability than refurbished alternatives.

Q3. Is the P3LB HENF209568R0001 still available from ABB?

The P3LB is primarily found in legacy ABB automation systems, and availability may be limited. Many users adopt a last-time-buy strategy and maintain on-site buffer stock to reduce the risk of extended lead times.

Q4. Can this board be hot-swapped?

No. Unless the specific ABB system documentation explicitly supports online replacement, always remove system power before replacing the board to prevent equipment damage or communication faults.

Q5. Will replacing the board erase the application program?

The application program is typically stored within the controller architecture rather than the board itself. However, always back up firmware, parameters, and configuration files before maintenance.

Q6. What quality checks are performed before shipment?

Each New Surplus board undergoes serial number verification, visual inspection, ESD-controlled handling, connector inspection, electrical verification, and final quality inspection before shipment.

Q7. What inventory strategy is recommended?

For production-critical ABB automation systems, maintain 1–2 HENF209568R0001 boards as buffer stock. This strategy reduces lead time variability, supports vendor consolidation, lowers Total Cost of Ownership (TCO), and helps prevent costly unplanned production downtime.
