ABB P4LR 1KHL015107R0001 Industrial Communication Module

Description

Key Technical Specifications

Note: Public ABB documentation for the P4LR is limited. Some third-party sources list additional hardware specifications, but these are not consistently documented by ABB and should be verified against the installed system before procurement.

Product Introduction & Supply Chain Strategy

The ABB P4LR 1KHL015107R0001 is an industrial communication module used within ABB distributed control systems to facilitate reliable data exchange between controllers, field devices, and supervisory networks. It serves as a communication interface that supports stable operation in process automation environments.

Purchasing this module as New Surplus provides genuine OEM hardware while avoiding the uncertainty associated with refurbished electronics. Since communication modules are often critical to plant availability, maintaining buffer stock, minimizing lead time variability, implementing vendor consolidation, and planning a last-time-buy strategy can significantly reduce Total Cost of Ownership (TCO) and prevent costly production interruptions.

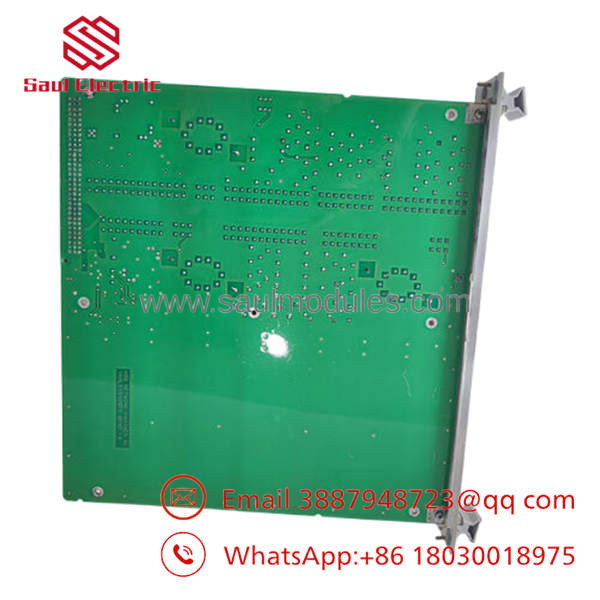

P4LR 1KHL015107R0001

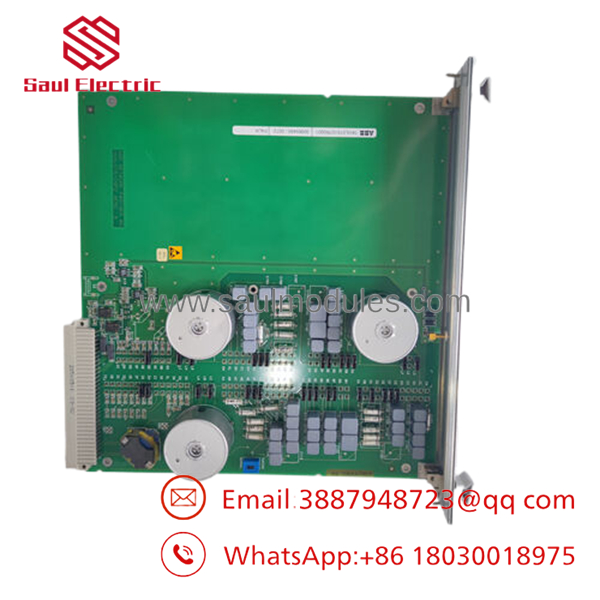

P4LR 1KHL015107R0001

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO).
2. Shut down the affected controller or communication rack.
3. Wear a grounded ESD wrist strap.
4. Record:
   • Network configuration
   • Node addresses
   • Communication parameters
5. Photograph all cable connections before removal.

Stage 2 – Removal

1. Verify complete power isolation.
2. Disconnect all communication cables.
3. Release retaining hardware.
4. Remove the module evenly to protect the backplane connector.
5. Inspect connectors for bent pins, corrosion, or contamination.

Stage 3 – Installation (Clone & Seat)

1. Verify the replacement part number is 1KHL015107R0001.
2. Install the module into the original rack position.
3. Ensure complete connector engagement.
4. Restore all communication cables.
5. Confirm proper grounding and cable shielding.

Stage 4 – Power-On & Testing

1. Restore system power.
2. Verify normal module LED indications.
3. Confirm communication with connected controllers and field devices.
4. Review controller diagnostics for communication errors.
5. Verify stable data exchange before returning the process to production.

Firmware/Software Versions & Upgrade Notes

• Verify compatibility with the installed ABB DCS software revision before replacement.
• Back up controller and network configuration before removing the original module.
• Record firmware and communication settings for rollback if necessary.
• Avoid performing firmware upgrades during hardware replacement unless required by ABB documentation.
• After installation, verify network integrity, communication diagnostics, and controller synchronization before placing the system back into service.

Frequently Asked Questions (FAQ)

Q1. Is this module genuinely new?

Yes. This product is supplied as New Original / New Surplus. It is not used, not repaired, and not refurbished. Every module undergoes quality verification before shipment.

Q2. Why is New Surplus priced below OEM list price?

New Surplus inventory originates from excess project inventory and authorized surplus channels. It provides genuine OEM hardware while avoiding the reliability risks commonly associated with refurbished equipment.

Q3. What is the primary function of the P4LR?

The serves as an industrial communication module, enabling reliable data exchange between controllers and networked devices within ABB automation systems. It supports dependable communication for mission-critical process control applications.

Q4. Can the module be replaced while the control system is energized?

Unless the specific ABB system architecture explicitly supports online replacement, power should be isolated before replacing the communication module to prevent network interruptions or hardware damage.

Q5. Will replacing the module affect my control application?

The control application typically remains stored in the controller. However, communication parameters, network addressing, and hardware configuration should be verified after installation to ensure proper system operation.

Q6. What quality inspections are completed before shipment?

Each New Surplus module undergoes:

• OEM part number verification
• Serial number traceability
• Visual inspection
• Connector integrity inspection
• Functional verification where applicable
• ESD-safe packaging
• Final QC approval documentation

Q7. What inventory strategy is recommended?

For mission-critical ABB automation systems:

• Maintain as on-site buffer stock.
• Use vendor consolidation to streamline spare parts procurement.
• Implement cross-site inventory sharing where multiple facilities use compatible ABB platforms.
• Monitor lifecycle status and execute a last-time-buy before availability declines, reducing lead time variability and lowering long-term Total Cost of Ownership (TCO).
