ABB PCD231B101 3BHE025541R0101 Exciter Control Module

Description

3. Key Technical Specifications

4. Product Introduction

The ABB PCD231B101 3BHE025541R0101 is an exciter control module designed for generator excitation systems. It regulates field current to maintain stable generator voltage and reactive power output.

This module leverages the AC 800PEC platform for advanced control algorithms, making it suitable for power generation applications requiring high reliability and precise response.

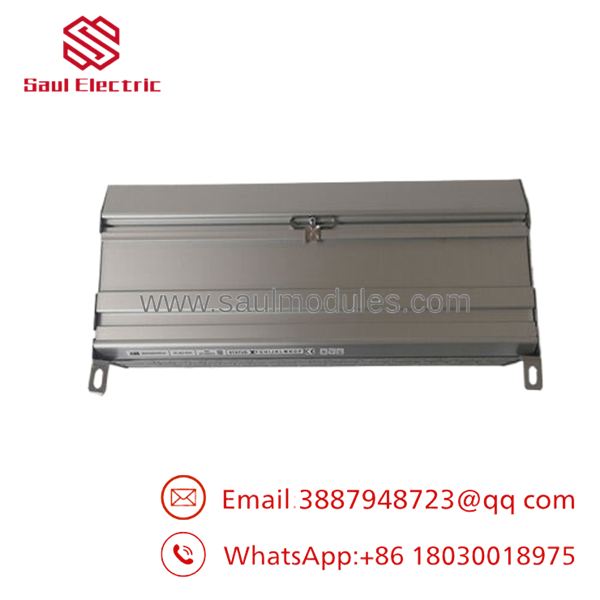

PCD231B101 3BHE025541R0101

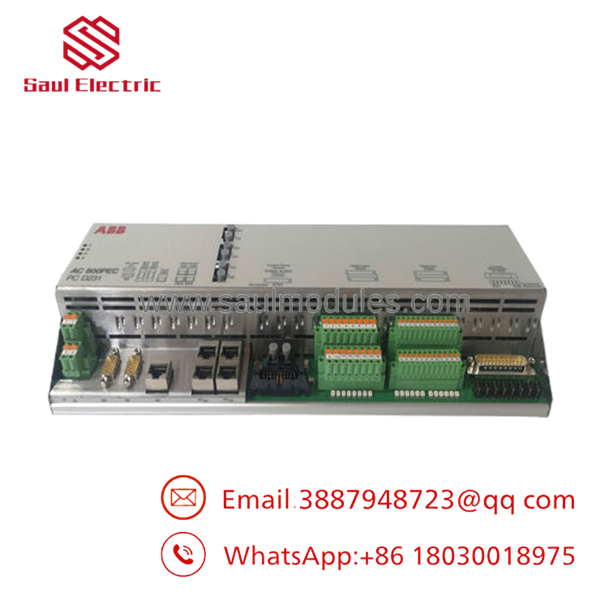

PCD231B101 3BHE025541R0101

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (15 minutes) ⚠️ Safety First: Lock out generator and excitation power. Tools Required: ESD strap, tools for control cabinet. Data Backup: Export excitation parameters and settings.

Stage 2: Removing the Old Module (10 minutes)

1. Power down control circuits.
2. Disconnect cables.
3. Remove from rack or slot.

Stage 3: Installing the New Module (10-15 minutes)

1. ESD protection. Verify part number.
2. Insert and secure.
3. Reconnect all wiring.

Stage 4: Power-On & Testing (20-30 minutes)

1. Apply control power.
2. Check status and diagnostics.
3. Perform no-load excitation tests.
4. Verify voltage regulation.

6. Frequently Asked Questions (FAQ)

Can it be replaced with the generator online? No. Follow full lockout procedures for safety.

Is this module obsolete? Spare for operational excitation systems.

What generators use it? Synchronous generators in power plants with ABB excitation systems.

Parameter transfer? Upload settings before removal and reload after.

Why this specific module? Exact match ensures seamless integration and performance in legacy excitation controls.
