Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PCD231B101 |
| Part Number | 3BHE025541R0101 |
| Product Type | Excitation Control Processor Module |
| Platform | ABB AC 800PEC / UNITROL Excitation System |
| Primary Function | Generator Automatic Voltage Regulator (AVR) Control |
| Application | Static excitation systems for synchronous generators |
| Control Features | Excitation regulation, voltage control, reactive power control |
| Communication | Industrial communication interfaces for system integration |
| Installation | Rack-mounted OEM control module |
| Product Status | Legacy Industrial Spare Part |
| Recommended Service | Installation by qualified power generation engineers |
Product Introduction
The ABB PCD231B101 (3BHE025541R0101) is an OEM excitation control processor designed for ABB AC 800PEC and UNITROL static excitation systems. It performs the real-time control algorithms required for automatic voltage regulation (AVR), excitation current management, and generator stability in power generation applications.
Installed in hydroelectric, thermal, and industrial power plants, this processor coordinates excitation control, system protection, and communication with the plant automation system. Because it is used in mission-critical generator control, many utilities maintain spare modules to minimize outage duration following a controller failure.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| AVR unavailable | Processor module fault | ✅ High | Review excitation controller diagnostics | Verify processor before replacing I/O modules |
| Generator voltage unstable | Excitation regulation fault | ✅ High | Compare AVR reference and measured voltage | Check controller parameters and feedback signals |
| Communication loss | Network or processor issue | ⚠️ Medium | Verify Ethernet/fiber communication status | Inspect communication hardware before replacing the module |
| Excitation system trips during startup | Invalid control initialization | ✅ High | Review startup event log | Verify firmware and configuration |
| Excitation current cannot increase | External thyristor bridge or feedback fault | ❌ Low | Measure field current and firing signals | Check power stage before replacing the processor |
| Processor watchdog alarm | Internal hardware fault | ✅ High | Read diagnostic buffer and status LEDs | Replace the processor if hardware failure is confirmed |
Service Note
Processor modules are often replaced after power system trips when the root cause actually lies elsewhere.
Before replacing the PCD231B101:
- Verify the 24 V DC control power supply.
- Download and save the existing parameter set.
- Record the firmware revision.
- Check all fiber-optic and communication connections.
- Verify voltage and current feedback signals from the excitation system.
❗ Veteran Tip: Never replace an excitation processor before backing up its configuration. I’ve seen replacement hardware installed correctly, only to spend an entire shift restoring plant-specific AVR tuning because nobody saved the original settings.

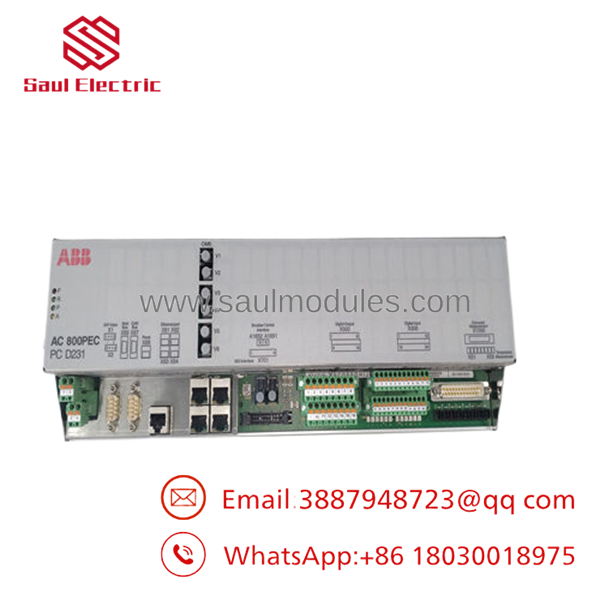

- PCD231B101

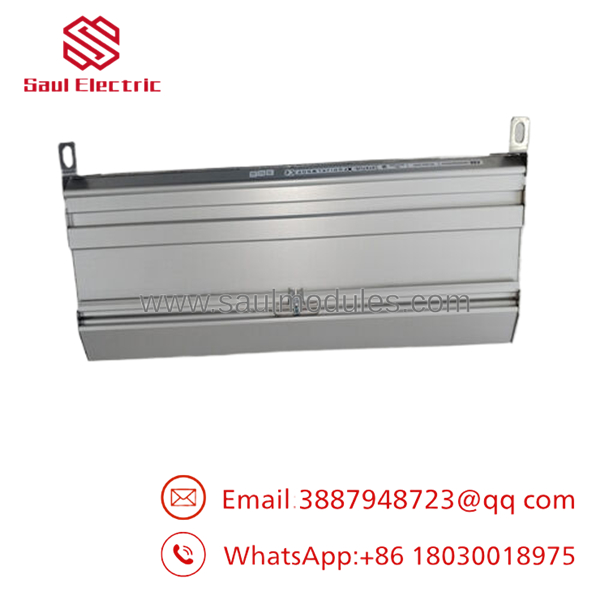

- PCD231B101
Frequently Asked Questions (FAQ)
Q1. What is the ABB PCD231B101 used for?
The (3BHE025541R0101) is an excitation control processor used in ABB static excitation systems. It regulates generator field current to maintain terminal voltage, reactive power, and overall power system stability.
Q2. Which systems use this module?
It is commonly found in ABB AC 800PEC and UNITROL-based excitation systems used for synchronous generators in hydroelectric plants, thermal power stations, and other industrial power generation facilities.
Q3. Does replacing the module require configuration?
Yes.
A replacement processor should be loaded with the correct firmware and plant-specific parameter files before commissioning. Installing a blank module without restoring the original configuration can prevent the excitation system from operating correctly.
Q4. Can I hot-swap this module?
No.
Excitation control processors should only be replaced following ABB’s maintenance procedures. Isolate the excitation system, remove control power, and verify safe conditions before servicing.
Q5. Why do power plants keep spare modules?
Generator excitation systems are essential for maintaining grid stability. A failed controller can force a generator offline, so many facilities keep spare processor modules available to reduce outage time.
Q6. Why is New Surplus inventory a common choice?
New Surplus modules are genuine ABB components that have never been commissioned but originate from excess inventory rather than current production. They provide OEM hardware for maintaining legacy excitation systems while often reducing procurement lead times.
Q7. What should I verify before ordering?
Confirm the following information:
- Model:
- Part Number: 3BHE025541R0101
- Control Platform: ABB AC 800PEC / UNITROL
- Existing firmware revision
- Hardware revision
- System configuration and compatibility
Matching both the hardware revision and firmware version helps ensure a straightforward replacement and minimizes commissioning time.
