Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PFSK152
- Part Number: 3BSE018877R1
- Alternate Revision: 3BSE018877R2 appears in ABB listings
- Function: Signal concentrator board
- Application: ABB industrial drive systems
- Interface: DDCS fiber signaling
- Supply Voltage: 24 V DC
- Mounting: Drive or cabinet-mounted, depending on system
- Compatibility: Confirm the exact revision before replacement
- Weight: About 0.5 kg in market listings
- Origin: Sweden
Product Introduction

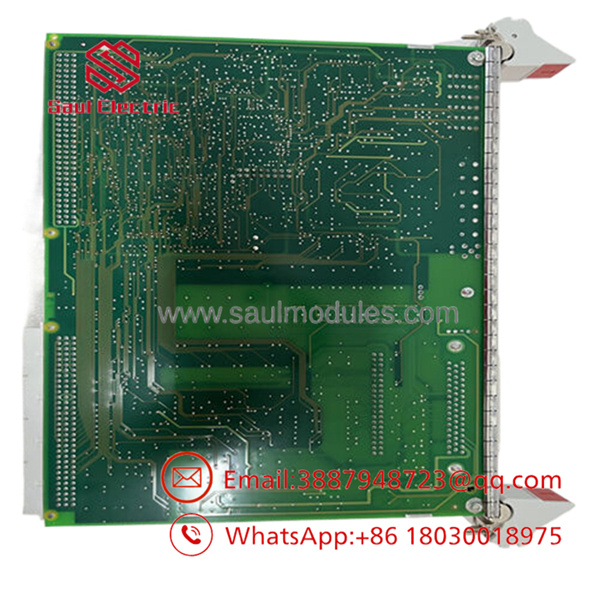

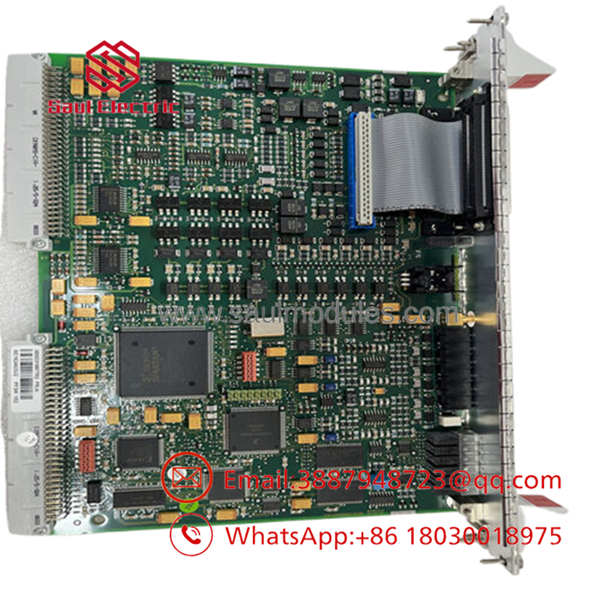

ABB PFSK152 3BSE018877R1 is a signal concentrator board used in ABB drive and control systems. ABB’s product reference ties PFSK 152 to the DDCS connection path, so this is a system interface board rather than a generic I/O card.
In the field, the big risk is revision mismatch. The R1 and R2 identifiers both show up in listings, so confirm the exact label on the removed board before you order a replacement.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| DDCS communication drops out | Failed signal board or fiber issue | ✅ High | Inspect fiber connectors and confirm link status | Reseat and clean fibers before replacing the board |
| Drive module not recognized | Wrong board revision or bad concentrator path | ✅ High | Compare the installed label with the replacement part number | Match R1 to R1, R2 to R2 whenever possible |
| Intermittent control faults | Loose connection or contaminated optical path | ✅ High | Check connector seating and cabinet vibration points | Clean and retest the optical path |
| One drive branch fails | Local signal concentration fault | ✅ High | Compare the failed branch against a known-good branch | If the fault follows the board, replacement is likely |
| No response after swap | Compatibility or wiring mismatch | ✅ Medium | Verify supply voltage and physical orientation | Recheck the installation against the original board photo |
| Fault appears after warm-up | Aging electronics or thermal issue | ✅ Medium | Run the system and watch fault timing | Inspect enclosure cooling and board condition |
| LEDs active but comms dead | Link layer failure or upstream issue | ✅ Medium | Check upstream DDCS source and status LEDs | Confirm the upstream device before replacing hardware |
If you get stuck, send photos of the label, the fiber routing, and the fault log to technical support before ordering a replacement.
- PFSK152
- PFSK152
Frequently Asked Questions
What is ABB PFSK152?
It is an ABB signal concentrator board used in drive control systems, with ABB’s own reference showing it as part of the DDCS connection path.
Is 3BSE018877R1 the same as PFSK152?
Yes, 3BSE018877R1 is the common order number tied to . A later revision, 3BSE018877R2, also appears in market and ABB references.
What does it connect to?
ABB’s product note says PFSK 152 connects DSP-UP, which points to a drive-system interface role rather than a standalone PLC function.
Can I use the R2 version instead of R1?
Maybe, but I would not assume it. Revision changes can affect fit, firmware expectations, and board behavior, so confirm compatibility before swapping.
Is it hot-swappable?
No. Treat it as a live drive control board, shut the system down, and verify safe voltage before removal or installation.
Why is it usually sold as surplus?
Because this is a legacy ABB drive board with limited active distribution, so most market stock comes from surplus or resale inventory.
What should I check before buying?
Match the exact suffix, revision, fiber interface, and installed board label. For ABB control hardware, that is the difference between a clean swap and a wasted shutdown window.
