ABB PFTL101BE 2.0KN 3BSE004214R1 PillowBlock Load Cell

Description

3. Key Technical Specifications

4. Product Introduction

The ABB PFTL101BE 2.0KN 3BSE004214R1 is a Pressductor PillowBlock load cell for accurate web tension measurement. The “E” variant offers enhanced performance for demanding applications involving low tension levels and high speeds.

It converts mechanical force into a reliable electrical signal using ABB’s Pressductor technology, ideal for integration into tension control systems in paper, foil, and metal processing lines.

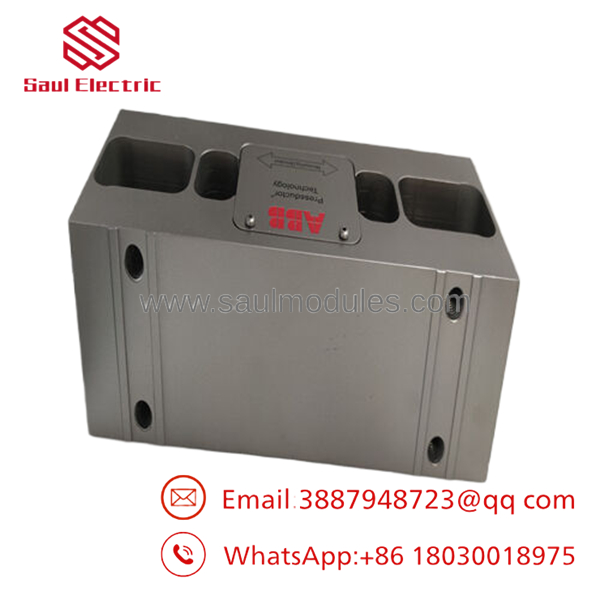

PFTL101BE 2.0KN 3BSE004214R1

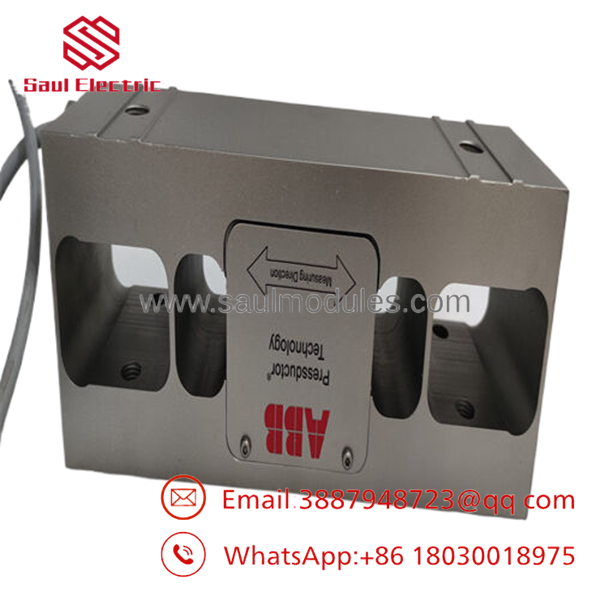

PFTL101BE 2.0KN 3BSE004214R1

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (15 minutes) ⚠️ Safety First: Lock out line and support rolls. Tools Required: Precision alignment tools, torque wrench. Data Backup: Record existing calibration values.

Stage 2: Removing the Old Cell (10-15 minutes)

1. Relieve tension on the web.
2. Disconnect signal and any auxiliary cables.
3. Loosen and remove mounting hardware.

Stage 3: Installing the New Cell (15-20 minutes)

1. Position with proper alignment.
2. Secure with correct torque.
3. Reconnect all wiring.

Stage 4: Power-On & Testing (20-30 minutes)

1. Power up the tension system.
2. Perform zero adjustment.
3. Apply known tension for span calibration.
4. Verify readings across operating range.

6. Frequently Asked Questions (FAQ)

Is this load cell hot-swappable? No. Mechanical replacement requires line stoppage.

What does the “E” designation indicate? Enhanced version of the PFTL101B series with improved characteristics for specific tension applications.

Mounting requirements? Horizontal pillow block installation with precise shaft alignment.

Calibration process? Standard zero and span procedure using the connected tension controller.

Why choose this capacity? 2.0 kN rating suits medium tension ranges in web handling systems while providing good resolution and overload margin.
