Description
Product Introduction

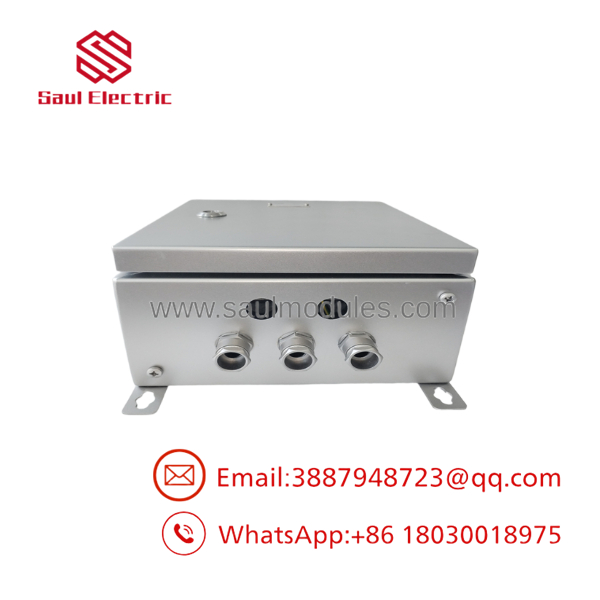

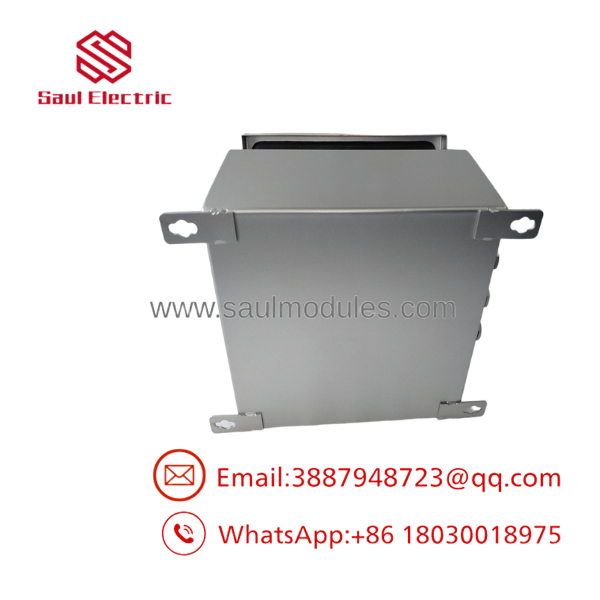

The ABB PFVO142 (3BSE023732R1) is a specialized matching unit engineered for high-capacity rolling mill force measurement systems. Installed between massive mill roll transducers (specifically heavy-load Pressductor sensors like the PFVL 141V, PFVL 141C, and PFVL 141R >8 MN series) and the main processing electronics cabinet, the PFVO142 provides the exact reactive tuning required to drive primary excitation coils at high power levels.
In extreme mill environments, driving Pressductor magneto-elastic sensors requires precise 1638 Hz AC excitation currents up to 25A. The PFVO142 acts as a tuned interface box that balances cable capacitance and sensor inductance. Housed in a rugged, corrosion-resistant stainless steel enclosure, it ensures clean, drift-free signal transmission across long cable runs from the mill stand back to the operator control room.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer Part Number | PFVO142 / 3BSE023732R1 |
| Excitation Current | 25 A |
| Operating Frequency | 1638 Hz |
| Compatible Sensors | ABB Pressductor PFVL 141V, PFVL 141C, PFVL 141R (>8 MN capacity) |
| Housing Material | Corrosion-resistant stainless steel enclosure |
| Enclosure Protection | Heavy-duty industrial sealed construction (IP65 rated equivalent) |
| Gross Weight | ~7.0 kg (15.4 lbs) |
| Country of Origin | Sweden |
| Primary System Use | Hot Rolling Mills, Cold Rolling Mills, Strip Processing Lines |
Application Scenarios & The “Trench” Experience
It is 1:00 AM on a hot strip mill line. The main roll stand’s force measurement suddenly drops offline, locking out automatic gauge control (AGC) and threatening a total mill stall. The instrument technician traces the issue to a burned-out matching network inside a junction box caused by years of intense thermal cycling and high-frequency power spikes. Swapping out the failed unit with a pre-tuned ABB PFVO142 matching unit restores the 1638 Hz excitation loop instantly, locking the 25A current back into resonance and bringing the mill back to full production without needing a full system recalibration.
- Hot Rolling Steel Mills – High-Tonnage Roll Force Sensing – Matches high-amperage excitation lines to >8 MN PFVL 141 load cells mounted inside mill housing windows.
- Cold Rolling Mills – Precision Strip Thickness Control – Maintains stable AC excitation signals to eliminate amplitude drift in gauge feedback loops.
- Aluminum Foil & Sheet Processing – Heavy Duty Mill Stand Retrofits – Filters line harmonics and cable reactance in long runs between the mill stand and electrical rooms.
- PFVO142
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them against original factory excitation specifications.
- Inbound Mechanical Audit: Microscopic inspection of stainless steel housing welds, gland seals, cover gaskets, and terminal block thread integrity.
- Inductance & Capacitance Resonance Test: Internal tuning components (coils, matching transformers, and capacitors) checked with precision LCR meters to confirm frequency response at 1638 Hz.
- High-Current Drive Load Bench Test: Tested under live 25A excitation currents to verify thermal stability and zero signal distortion.
- Insulation Breakdown Test (Megger Check): Megger-tested at 500 VDC to verify isolation between primary power terminals and the stainless steel chassis ground (≥ 100 MΩ).
- ESD & Heavy Freight Packaging: Cleaned, sealed in heavy protective barrier wrap, and shipped in high-density shock-absorbing wooden or foam crates.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do Not Bypass or Modify Matching Impedance!
The contains specific reactive components tuned to 1638 Hz at 25A. Replacing internal components with off-the-shelf capacitors or transformers will detune the resonant circuit, causing overheating in the excitation amplifier or distorted force readings.
- ❗ Inspect Cable Glands and Seal Integrity
Because roll force matching units are mounted near mill stands where coolant spray, scale, and high moisture are constant, ensure all cable entry glands are torqued down and the stainless steel cover gasket is completely seated. Water intrusion across the high-current terminals will cause immediate tracking arc faults.
- ⚠️ Verify Load Cell Compatibility Before Installation
The 25A model is designed specifically for large-capacity roll force sensors (like the PFVL 141 series >8 MN). Pairing this matching unit with lower-capacity Pressductor sensors (which require lower excitation currents) can overload the smaller sensor windings.
- ❗ Never Disconnect Terminals Under Live Power
Carrying up to 25A at 1638 Hz, opening an excitation terminal connection while powered can induce severe inductive voltage spikes across the terminals, damaging adjacent mill electronics or causing dangerous arcing. Always lock out the Pressductor amplifier before opening the box.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 3BSE023732R1 a standalone amplifier?
A: No. The is a matching/excitation unit. It works in conjunction with a main Pressductor control electronics cabinet (such as a PFEA or Millmate series controller) and the physical PFVL 141 roll force load cell.
Q: Can I use the with web tension load cells like the PFTL101 or PFCL201?
A: No. Web tension load cells (PFTL/PFCL series) typically operate on different excitation levels and connect directly to tension electronics (e.g., PFEA111/PFEA112/PFEA113). The is specifically tuned for high-tonnage roll force application load cells (PFVL 141 series).
Q: Are these units original ABB manufacture?
A: Yes. We supply factory-sealed New Surplus as well as fully bench-tested, refurbished original ABB units manufactured in Sweden.
Q: What warranty is included with this unit?
A: Every ABB matching unit comes with a full 12-month replacement warranty. If the unit exhibits component breakdown or performance deviation within one year of installation, we provide an immediate replacement from stock.
