3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Processor Module |
| Memory | 16 MB |
| Application | Advant Controller 450 |
| Power Consumption | Approx. 10 W |
| Communication | RS-232, RS-485, Ethernet interfaces |
| Operating Temperature | Industrial range |
| Mounting | Controller rack |
4. Product Introduction
The ABB PM511V16 3BSE011181R1 is a processor module for the Advant Controller 450 series. It serves as the central processing unit handling control logic, I/O processing, and communication in automation systems.
This module provides reliable performance for mid to large-scale applications in process industries where the Advant platform is deployed.
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Notify operations and lock out controller power. Tools Required: ESD strap, screwdriver. Data Backup: Full controller database and application.
Stage 2: Removing the Old Module (5-10 minutes)
- Power down.
- Release latches.
- Disconnect front cables if present.
- Pull module straight out.
Stage 3: Installing the New Module (10 minutes)
- ESD protection.
- Align and insert firmly.
- Reconnect cables.
Stage 4: Power-On & Testing (15-25 minutes)
- Apply power.
- Monitor boot and status.
- Download configuration.
- Verify I/O and logic execution.

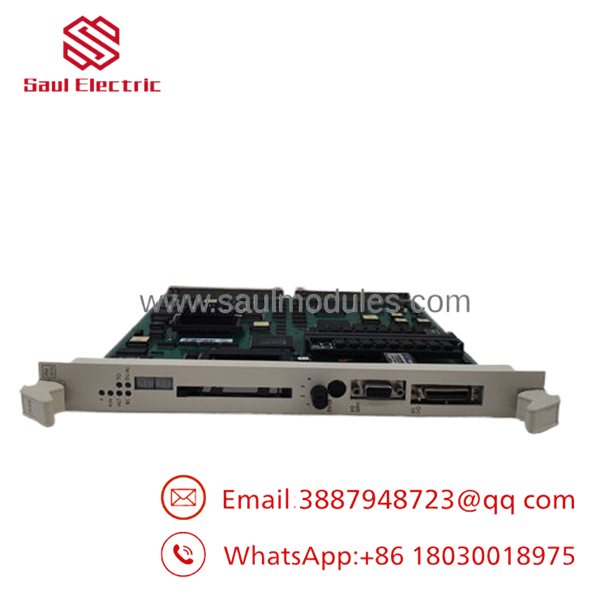

- PM511V16 3BSE011181R1

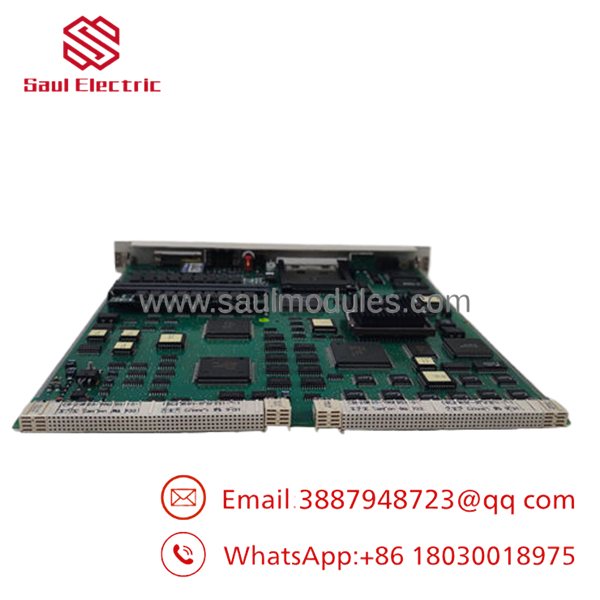

- PM511V16 3BSE011181R1
6. Frequently Asked Questions (FAQ)
Can the processor be hot-swapped? No. Full power cycle is required.
Is PM511V16 obsolete? Legacy spare for Advant Controller 450 systems.
Memory size? 16 MB for application and data.
Will my program transfer? Yes, with compatible firmware. Backup and restore the database.
Why this processor? Direct replacement maintains existing control performance without system migration.
