Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | AC 800M Processor Unit |
| Clock Frequency | High-performance processor |
| Memory | 32 MB |
| Redundancy | Supported |
| Communication | Dual Ethernet ports, serial |
| Power Supply | 24 V DC |
| Operating Temperature | 0 to +55 °C |
| Mounting | DIN rail with TP830 base |
4. Product Introduction
The ABB PM862K01 is a processor unit for the AC 800M controller family. It provides high-performance processing for complex control applications with support for redundancy and extensive communication options.
This module is widely used in 800xA systems for reliable, scalable automation in process industries.

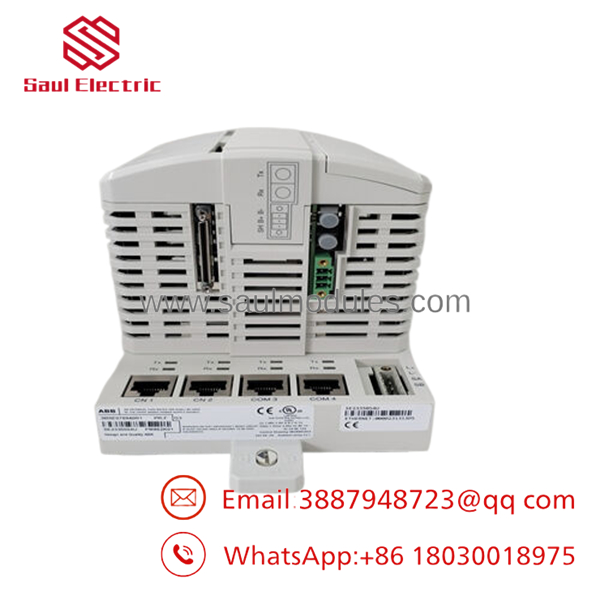

- PM862K01

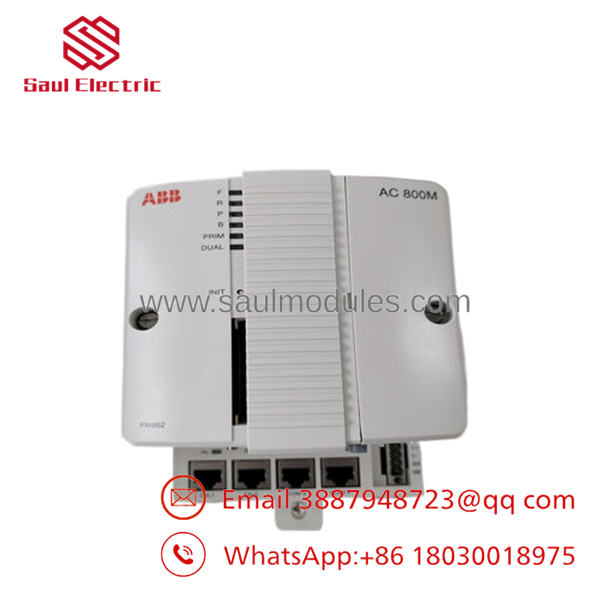

- PM862K01
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Lock out controller power. Tools Required: ESD strap, screwdriver. Data Backup: Full application and configuration.
Stage 2: Removing the Old Unit (10 minutes)
- Power down.
- Disconnect cables.
- Release from base plate.
Stage 3: Installing the New Unit (10 minutes)
- ESD protection.
- Align and seat on TP830 base.
- Reconnect cables.
Stage 4: Power-On & Testing (15-25 minutes)
- Apply power.
- Observe LEDs and boot.
- Download configuration.
- Test I/O and redundancy if applicable.
6. Frequently Asked Questions (FAQ)
Can it support redundancy? Yes, PM862K01 is designed for redundant configurations.
Is it obsolete? Active in AC 800M systems with ongoing support.
Memory available? 32 MB for application use.
Firmware compatibility? Verify with your system version before installation.
Why this processor? Balances performance and cost for many AC 800M applications.
