Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PM864A |
| Order Code | 3BSE018162R1 |
| Product Type | Processor unit / CPU module |
| Platform | AC 800M |
| CPU Architecture | PowerPC-based processor |
| Ethernet Interfaces | 2 Ethernet ports (CN1, CN2) |
| Serial Interfaces | 2 serial ports (COM3, COM4) |
| Memory | 32 MB RAM listed by vendor source |
| I/O Expansion | Up to 8 clusters, 96 units max |
| Mounting | Rack or DIN-rail style AC 800M installation |
| Protection | IP20 per vendor listing |
Product Introduction & Supply Chain Strategy
ABB PM864A 3BSE018162R1 is a processor unit for the AC 800M control platform, used as the main controller in industrial automation systems. It manages logic execution, communications, and coordinated I/O handling for process and machine control applications.
Buying this as New Surplus makes sense when you need buffer stock for an installed base, but want to avoid the TCO penalty of overbuying. For critical assets, a controlled last-time-buy strategy protects against lead time variability, EOL surprises, and the hidden failure risk that comes with questionable parts sourcing.
Installation & Configuration Guide
Stage 1: Pre-Installation
Lock out and tag out the panel before touching the rack. Use an ESD wrist strap, insulated hand tools, and a camera phone to record DIP switch positions, wiring, and module labels. Verify the exact slot assignment, adjacent module IDs, and any network address settings before removal.
Stage 2: Removal
Power down the system per site procedure unless your architecture explicitly supports hot swap. Release the module with even pressure and pull it straight out to avoid bending backplane pins or stressing the connector. Do not twist the card during extraction.
Stage 3: Installation
Mirror the old configuration exactly, including any address or hardware settings tied to the station. Seat the module fully and evenly until it locks into place. Recheck cable orientation, connector torque, and any field wiring that may have been disturbed during transfer.
Stage 4: Power-On & Testing
Restore power and confirm the 24 V rails are within tolerance before full startup. Watch the status LEDs for RUN and ERR behavior, then verify controller communication with the engineering workstation. Download the application only after hardware identity, node address, and network configuration match the original setup.

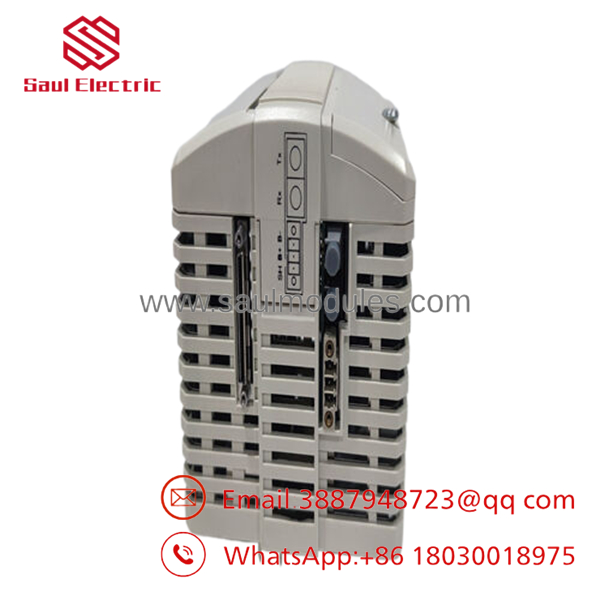

- PM864A 3BSE018162R1

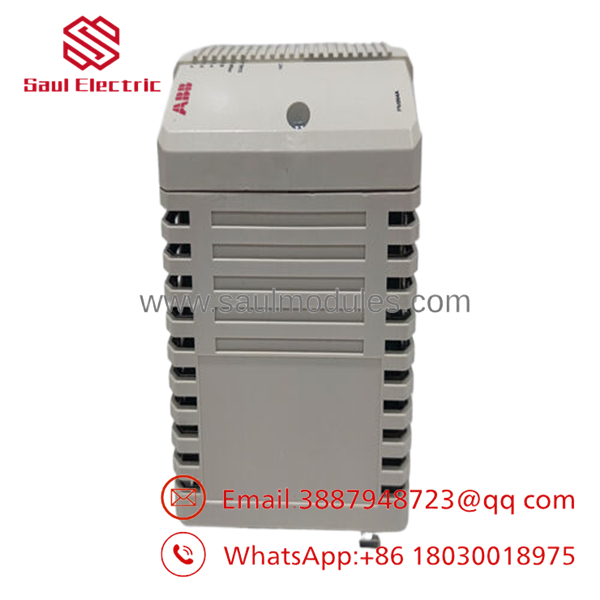

- PM864A 3BSE018162R1
Firmware/Software Versions & Upgrade Notes
ABB public product pages for PM864A list the platform and hardware family, but not a single universal recommended firmware revision in the sources reviewed. The safe rule is to clone the existing firmware and controller image before replacement, then keep the same major revision during swap whenever possible.
Avoid mixing older project images with newer controller firmware unless ABB compatibility documentation for your exact AC 800M software stack confirms it. A firmware jump can break communications, change diagnostics behavior, or force program recompilation, while downgrading can be even riskier if the loaded project expects newer runtime features.
Frequently Asked Questions
Is this really new?
Yes, the correct procurement position is New Surplus / Original New, not refurbished. That means it should come from genuine OEM inventory channels with traceable packaging and QC verification.
Why is it cheaper than OEM new but higher than refurb?
Because New Surplus usually comes from excess OEM inventory or controlled release stock. It avoids the full OEM list price, but it still carries better traceability and lower risk than a refurb lot.
Is PM864A an obsolete part?
Treat it as lifecycle-sensitive and verify against the installed base before you standardize on it. For inventory planning, assume EOL risk until your site confirms long-term support and replacement availability.
Can I hot-swap it?
Only if your system design, redundancy setup, and site procedure explicitly allow it. For a non-redundant swap, plan a controlled outage so you do not corrupt the process image or damage backplane pins.
Will my program stay in the controller?
Do not assume retention across a swap. Always archive the project, firmware version, and hardware configuration before removal, then verify the restored image after commissioning.
What warranty should I expect?
For New Surplus control hardware, warranty terms depend on the supplier and test record. A serious supplier should provide traceable QC documentation and a written warranty period tied to the shipment.
