Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PM866 |
| Order Code | 3BSE050200R1 |
| Product Type | Processor unit / CPU module |
| Platform | AC 800M |
| Control System | Advant 800xA / AC 800M family |
| CPU Board Contents | Microprocessor, RAM, real-time clock, LEDs, INIT button, CompactFlash interface |
| Ethernet Ports | 2 RJ45 ports, CN1 and CN2 |
| Serial Ports | 2 RJ45 serial ports, COM3 and COM4 |
| Redundancy | CPU redundancy supported |
| Supply Voltage | 24 VDC platform |
| Physical Mounting | DIN rail slide-and-lock base plate style |
Product Introduction & Supply Chain Strategy
ABB PM866 3BSE050200R1 is the CPU module for the AC 800M control platform, used to execute control logic, manage communications, and coordinate process automation tasks. It fits plants that need deterministic control, modular expansion, and high availability in DCS or PLC-style architectures.
Buying this as New Surplus is the right TCO move when installed-base continuity matters more than chasing OEM list price. It reduces stock-out risk, supports buffer stock planning for EOL-sensitive assets, and avoids the hidden failure exposure that often comes with poor-quality replacement inventory.

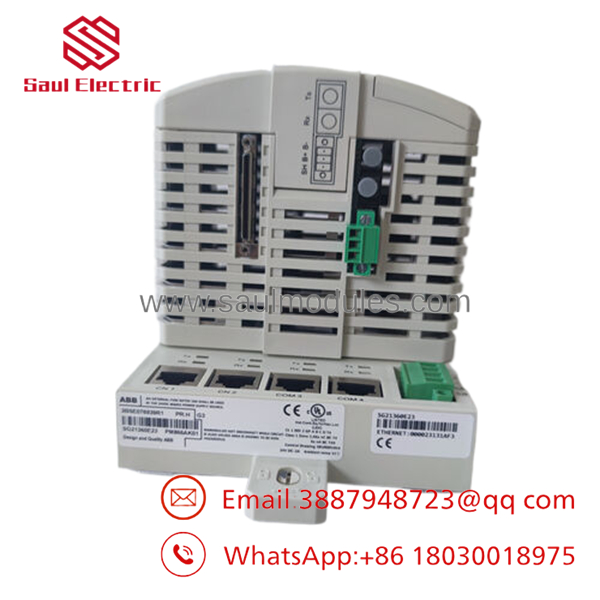

- PM866 3BSE050200R1

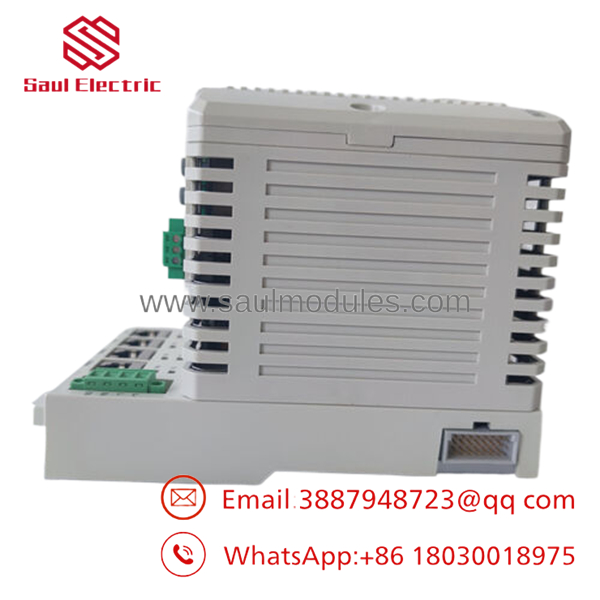

- PM866 3BSE050200R1
Installation & Configuration Guide
Stage 1: Pre-Installation
Lock out and tag out the panel before any work begins. Use an ESD wrist strap, insulated tools, and a camera to record DIP switch settings, wiring terminations, node labels, and adjacent module positions. Confirm the exact slot, base plate, and network identity before removal.
Stage 2: Removal
Power down the system unless your redundancy architecture and site procedure explicitly support live replacement. Release the module evenly and pull it straight out to avoid bending backplane pins or stressing the connector. Never pry from one side or twist the card during extraction.
Stage 3: Installation
Copy the original configuration exactly, including any address, jumper, or station settings. Seat the module squarely until it locks into place on the base plate. Reconnect all cabling only after verifying polarity, connector type, and terminal mapping.
Stage 4: Power-On & Testing
Restore power and verify the 24 V rails for shorts or undervoltage before startup. Confirm status LEDs, especially RUN and ERR behavior, then check controller communication from the engineering workstation. Load the stored project only after hardware identity and network settings match the original controller.
Firmware/Software Versions & Upgrade Notes
ABB’s public product and controller-hardware documentation confirms the PM866 platform and AC 800M family, but the exact recommended firmware revision depends on the site’s Control Builder / 800xA stack. The safest practice is to match the replacement unit to the firmware and application image already running in the plant.
Do not assume a newer firmware revision will be drop-in compatible with an older project, or that downgrading is harmless. Firmware mismatch can trigger communication faults, diagnostics changes, or application reload issues during a hardware swap.
Frequently Asked Questions
Is this really new?
Yes, the correct procurement position is New Surplus / Original New, not refurbished. That means traceable OEM inventory, intact packaging, and QC verification before shipment.
Why is it cheaper than OEM new but higher than refurb?
New Surplus usually comes from excess OEM inventory or controlled release stock. It avoids OEM list pricing, but it still carries far less risk than low-cost refurbished inventory.
Is PM866 obsolete?
Treat it as lifecycle-sensitive and verify against your installed base before standardizing on it. If your plant still runs AC 800M, a last-time-buy plan is worth considering.
Can I hot-swap it?
Only if your system architecture and site procedure explicitly allow it. For a non-redundant controller swap, plan a controlled outage to avoid corruption, pin damage, or unexpected process interruptions.
Will my program stay in the controller?
Do not rely on retention alone. Archive the application, firmware level, and hardware configuration before removal, then verify the restored image after commissioning.
What warranty should I expect?
Warranty terms depend on the supplier and the QC package. For New Surplus controls hardware, ask for serial traceability, test records, and a written warranty period tied to shipment.
