Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PM891K01
- Ordering Information: 3BSE053241R1
- Series: AC 800M
- Function: Processor unit for ABB control systems
- Processor: MPC8270, 450 MHz
- Memory: 256 MB RAM
- Application Memory: About 208.985 MB
- Power Supply: 24 V DC, 19.2 to 30 V DC
- Power Consumption: 15.8 W typical, 18 W maximum
- Redundancy: Supported
- Ethernet Ports: 2 x RJ45
- Serial Ports: 1 x isolated RJ45 service port
- Control Cycle: Down to 1 ms
- I/O Capacity: Up to 7 S800 I/O clusters, up to 84 modules
- Operating Temperature: 0 to +60 C
- Protection: IP20
- Compatibility: Requires correct base plate and AC 800M system version; ABB states compatibility from 800xA 6.0.2 onward for this controller family
Product Introduction
ABB PM891K01 3BSE053241R1 is an AC 800M processor unit kit used in ABB industrial automation systems. It combines the processor, memory, Ethernet, serial service access, and control execution functions in one controller package.
This controller is a high-availability spare for ABB 800xA and AC 800M sites where exact part matching matters. It supports redundancy, uses 24 V DC input, and includes the PM891 CPU module plus termination accessories in the kit, so confirm the site revision and base plate before buying.

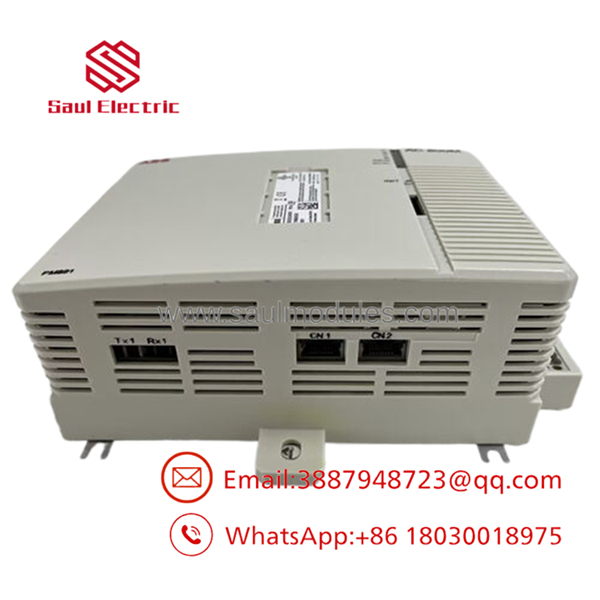

- PM891K01 3BSE053241R1

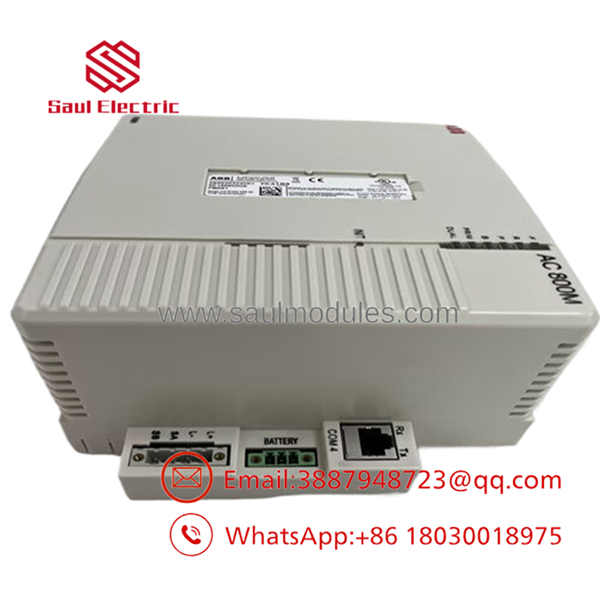

- PM891K01 3BSE053241R1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| CPU does not boot | Missing 24 V DC or failed processor unit | ✅ High | Measure 24 V DC at the controller supply terminals | If power is present and LEDs stay dark, suspect the module |
| Controller not visible on network | Ethernet cabling or processor fault | ✅ High | Check both RJ45 Ethernet ports and link LEDs | Verify cabling before replacing hardware |
| Redundancy does not transfer | Partner mismatch or controller issue | ✅ High | Check primary/backup status in diagnostics | Confirm redundancy pairing and controller version first |
| INIT or fault LED stays on | Internal error or bad configuration | ✅ High | Read the diagnostic buffer in Control Builder or 800xA | If the fault repeats after restore, replace the unit |
| Serial port communication fails | Cable or isolated port mismatch | ✅ Medium | Test the service port separately with the correct cable | Recheck COM4 usage and pinout before blaming the CPU |
| Random resets | Power instability or aging hardware | ✅ Medium | Monitor supply voltage under load | Fix the supply problem before replacing the module |
| Program will not load | Memory or configuration problem | ✅ Medium | Verify backup media and restore image | Check the load file and CompactFlash or SD path first |
| I/O clusters offline | CEX-Bus or Modulebus issue | ✅ Medium | Inspect CEX and Modulebus termination hardware | Confirm the associated bus terminators are installed correctly |
If you get stuck, send photos of the nameplate, base plate, and diagnostic log to technical support before ordering a replacement.
Frequently Asked Questions
What is ABB PM891K01?
It is an ABB AC 800M processor unit kit used in industrial automation systems. ABB describes the PM891 processor as a monolithic unit with CPU, memory, Ethernet ports, and an isolated serial service port.
Is 3BSE053241R1 the same as PM891K01?
Yes, 3BSE053241R1 is the order code tied to . Always verify the label on the installed unit before buying a replacement.
Does it support redundancy?
Yes. ABB states that PM891 supports CPU redundancy, including the controller, CEX-Bus, communication interfaces, and S800 I/O.
Can I use it without the proper base plate and terminators?
No. The kit includes the CPU module and termination hardware, and the controller family depends on proper base plate and bus termination.
Is it hot-swappable?
No. Power down the cabinet, verify discharge, and follow lockout/tagout before removal or installation.
Why do sellers list it as new surplus or refurbished?
Because this is a current or near-current ABB platform part, but a lot of market stock still comes from unused inventory, excess spares, or tested refurb units.
What should I check before ordering?
Match the full part number, the base plate, the controller family, and the site software version. ABB’s hardware selector notes compatibility for the PM891 family with 800xA 6.0.2 and onward, so software version matters too.
