Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PP846A
- Ordering Information: 3BSE042238R2
- Series: Panel 800
- Display Size: 10.4 in
- Product Type: Operator panel / HMI
- Power Supply: 24 V DC
- Application: Industrial automation monitoring and control
- Compatibility: Verify exact Panel 800 version and software match before installation
- Condition: New surplus or used depending on source
Product Introduction
ABB PP846A 3BSE042238R2 is a Panel 800 operator panel used for industrial monitoring and control. It is a larger HMI in the Panel 800 family, with market references pointing to a 10.4-inch display and 24 V DC supply.
This panel is typically sourced as a replacement spare for ABB automation cabinets where exact model matching matters. Confirm the cutout, version, and application software before ordering, because Panel 800 units may look similar while still being incompatible.

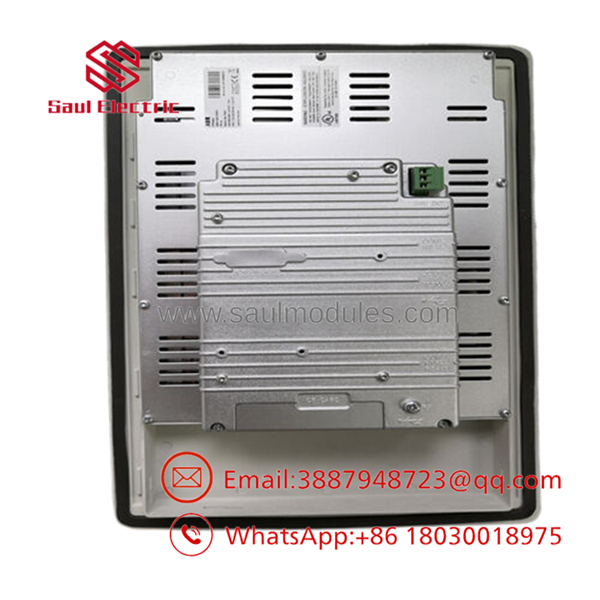

- PP846A

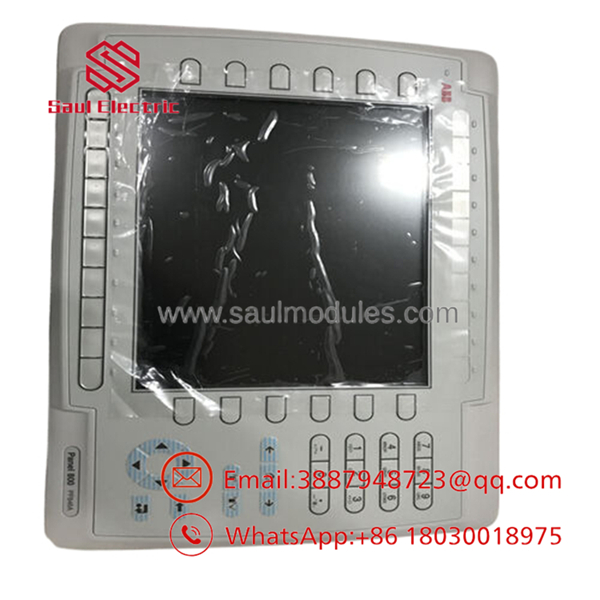

- PP846A
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Panel will not power up | Missing 24 V DC supply or internal power fault | ✅ High | Measure 24 V DC at the terminals and check the fuse | Verify supply first, then replace the panel if power is present |
| Screen stays blank | Backlight or display failure | ✅ High | Check for faint image under a flashlight | If power is present and no image appears, suspect the panel |
| Touch input does not respond | Touch layer wear or calibration issue | ✅ High | Test touch across multiple screen areas | Recalibrate first, then consider replacement |
| HMI cannot communicate with PLC | Cable, protocol, or port mismatch | ✅ High | Check Ethernet or serial link status and node settings | Recheck cabling and communication parameters before replacement |
| Random reboots | Power instability or aging hardware | ✅ Medium | Monitor the 24 V DC source under load | Fix the supply issue before replacing the unit |
| Display flickers or dims | Backlight aging | ✅ Medium | Observe brightness over time | Replace if the backlight is clearly degraded |
| Alarm screens freeze | Firmware or application issue | ✅ Medium | Compare behavior after reloading the project | Restore the application before blaming hardware |
If you get stuck, send photos of the label, cutout, cable connections, and alarm log to technical support before ordering a replacement.
Frequently Asked Questions
What is ABB PP846A?
It is an ABB Panel 800 operator panel used for HMI-based monitoring and control. ABB references identify it as part of the Panel 800 family, and market listings show it as a 10.4-inch panel.
Is 3BSE042238R2 the same as PP846A?
Yes, 3BSE042238R2 is the ordering information tied to . Match the exact label on the installed unit before buying a replacement.
What voltage does it use?
Market references show 24 V DC. Confirm the cabinet supply and terminal wiring before installation.
Can I swap it with another Panel 800 model?
Not without checking the cutout, version, and software compatibility. The family is close enough to cause trouble if you rely on appearance alone.
Is it hot-swappable?
No. Shut down the panel power circuit before removal or installation, then verify safe voltage.
Why is it sold as surplus or used?
Because this is a legacy ABB HMI platform part, and market supply often comes from excess inventory, pulled units, or refurbished stock rather than active production.
What should I check before ordering?
Match the full model, ordering code, display size, cutout, and communication setup. That is the fastest way to avoid a no-fit or no-comm installation failure.
