Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PP865 |
| Order Number | 3BSE042236R1 |
| Product Family | Panel 800 |
| Product Type | Touch Operator Panel / HMI |
| Display Size | 15 inch TFT-LCD |
| Display Resolution | 1024 × 768 pixels |
| Display Colors | 64K colors |
| Touch Interface | Resistive touch screen |
| Backlight Type | CCFL |
| Backlight Lifetime | >35,000 hours at 25 °C |
| CPU | 416 MHz RISC CPU (Intel XScale) |
| Flash Memory | 32 MB |
| RAM Memory | 64 MB |
| Application Memory | 4 MB expandable |
| Power Supply | +24 V DC (20–30 V DC) |
| Ethernet Interface | 10/100 Mbit/s RJ45 |
| Serial Interfaces | RS422/RS485 and RS232C |
| USB Interface | USB Host Type A / Device Type B |
| Front Protection | IP66 |
| Rear Protection | IP20 |
| Mounting | Panel Mount |
| Front Panel Dimensions | 398 × 304 × 6 mm |
| Cut-out Size | 356 × 279 mm |
| Mounting Depth | 60 mm |
| Weight | Approx. 3.7 kg |
| Operating Temperature | 0 to +50 °C |
Product Introduction & Supply Chain Strategy

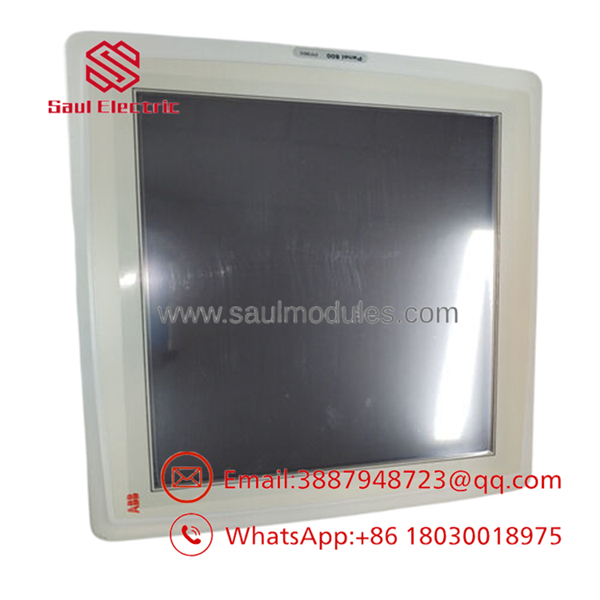

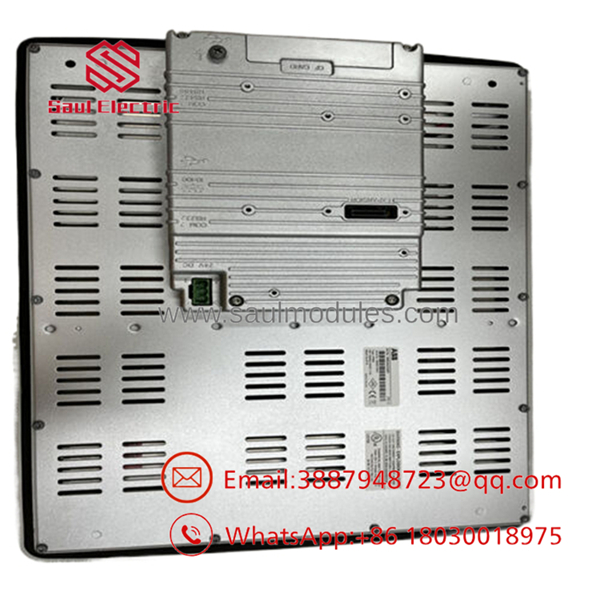

The ABB PP865 3BSE042236R1 is a Panel 800 industrial HMI terminal designed for operator interaction with automation systems. It provides process graphics, alarm handling, trend display, recipe management, and communication with PLC, DCS, and drive systems through Ethernet and serial interfaces.
Maintaining PP865 units as New Original / New Surplus inventory supports long-term operation of existing ABB automation installations. For plants relying on legacy HMI stations, keeping one spare unit as buffer stock reduces lead time variability, avoids emergency sourcing, and lowers Total Cost of Ownership (TCO) compared with downtime caused by unavailable operator interfaces.
Installation & Configuration Guide
Stage 1 – Pre-Installation (Prep & Safety)
- Apply Lock-Out/Tag-Out procedures before accessing the HMI cabinet.
- Confirm replacement model: ABB PP865 3BSE042236R1.
- Wear a grounded ESD wrist strap.
- Back up the existing Panel Builder 800 project.
- Record:
- HMI IP address
- PLC/DCS communication driver
- Application version
- Alarm configuration
- Trend and recipe settings
- Photograph:
- Power wiring
- Ethernet connection
- Serial communication wiring
- Mounting arrangement
Stage 2 – Removal
- Switch off the 24 V DC supply.
- Verify voltage is removed from the terminal block.
- Disconnect Ethernet, serial, and USB connections.
- Remove rear mounting brackets carefully.
- Extract the PP865 from the panel opening.
- Inspect cables and connectors for damage.
Stage 3 – Installation (Clone & Seat)
- Verify the replacement label matches PP865 3BSE042236R1.
- Install the unit into the existing panel cut-out.
- Secure mounting clips evenly.
- Reconnect:
- 24 V DC power
- Ethernet cable
- RS232/RS422/RS485 connections
- Restore network settings.
- Download the approved HMI application.
Stage 4 – Power-On & Testing
- Confirm correct 24 V DC polarity.
- Power on the HMI.
- Check startup diagnostics.
- Verify PLC/DCS communication.
- Test:
- Operator commands
- Alarm pages
- Process graphics
- Trend screens
- Recipe functions
- Confirm stable operation before returning the system to production.
Firmware/Software Versions & Upgrade Notes
- Engineering Software: ABB Panel Builder 800.
- Application Transfer: HMI projects are created on engineering computers and transferred to the panel memory.
- Firmware Compatibility: Match panel firmware with the installed Panel Builder 800 version.
Compatibility Notes:
- Verify the existing HMI project version before downloading.
- Confirm communication drivers match the connected PLC/DCS controller.
- Maintain a backup copy of the original project file.
Upgrade Risks:
- New Panel Builder versions may require project conversion.
- Communication drivers may change behavior after software updates.
- Firmware upgrades during emergency replacement can increase commissioning time.
Frequently Asked Questions (FAQ)
1. Is ABB supplied as a genuine new product?
Yes. This unit is supplied as New Original / New Surplus. It is not refurbished, repaired, or removed from a running production system.
2. Why is New Surplus priced higher than refurbished panels?
New Surplus provides unused OEM manufacturing condition and predictable service life. Refurbished panels may have unknown operating hours, aging backlights, or touchscreen wear.
3. Is ABB an obsolete HMI?
belongs to the Panel 800 product family. Plants operating existing ABB HMI installations should evaluate lifecycle status and consider Last-time-buy planning for critical operator stations.
4. Can be replaced while equipment is running?
No. Disconnecting an active HMI can interrupt operator visibility and control functions. Follow approved shutdown procedures before replacement.
5. Will replacing delete the HMI application?
The replacement panel requires the correct Panel Builder 800 project to be loaded. Always maintain an updated backup of the HMI application.
6. What inspection process is completed before shipment?
New Original / New Surplus units are checked through:
- OEM part number verification
- Serial label inspection
- Touchscreen and display inspection
- Connector verification
- Power-up testing where applicable
- ESD-safe packaging
7. What warranty is recommended for ABB ?
A 12-month warranty is commonly recommended for industrial HMI spare parts. Maintaining spare availability helps reduce downtime risk for production systems.
