Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PP877K
- Ordering Information: 3BSE069274R1
- Series: Panel 800 Version 6
- Display Size: 10.4 in
- Product Type: Operator panel / HMI
- Application: Industrial monitoring and control
- Compatibility: Verify exact Panel 800 Version 6 software and cutout before installation
- Condition: New surplus or used depending on source
Product Introduction
ABB PP877K 3BSE069274R1 is a Panel 800 Version 6 operator panel used for industrial HMI monitoring and control. Market listings identify it as a 10.4-inch ABB HMI, so it fits the larger Panel 800 operator-panel class rather than a compact text terminal.
This part is typically bought as a replacement for ABB automation cabinets where screen size, cutout, and software version must line up. Confirm the exact label and Panel 800 Version 6 compatibility before ordering, because similar ABB panels are not always interchangeable.

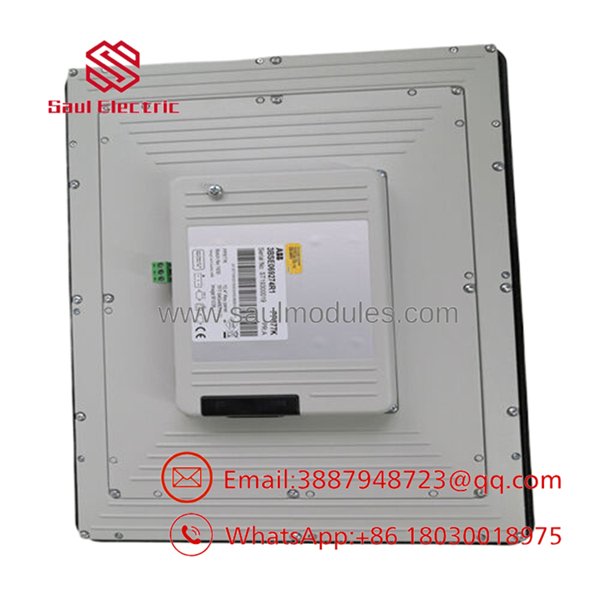

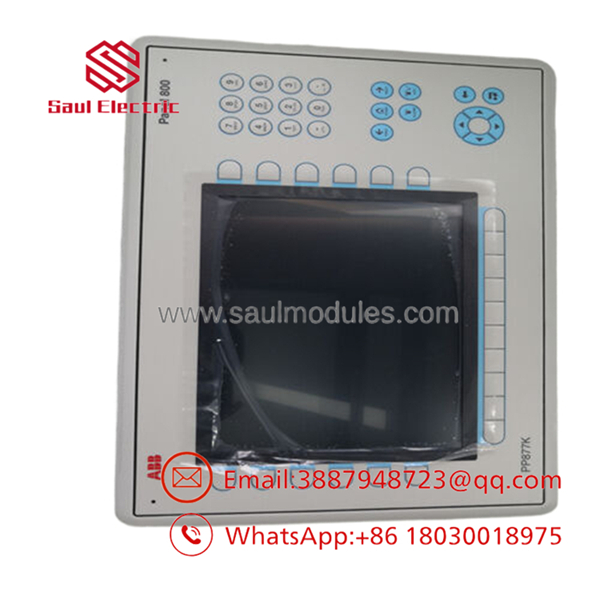

- PP877K 3BSE069274R1
- PP877K 3BSE069274R1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Panel will not power up | Missing supply or internal power fault | ✅ High | Measure cabinet supply at the panel terminals | Verify power first, then replace the panel if voltage is present |
| Screen stays blank | Backlight or display failure | ✅ High | Check for faint image with a flashlight | If power is present and no image appears, the panel is likely faulty |
| Touch input does not respond | Touch layer wear or calibration issue | ✅ High | Test touch across several screen areas | Recalibrate first, then replace if the issue remains |
| HMI cannot communicate with PLC | Cable, protocol, or port mismatch | ✅ High | Check Ethernet or serial link status and node settings | Recheck communication settings before blaming the panel |
| Random reboots | Power instability or aging hardware | ✅ Medium | Monitor supply voltage under load | Fix the supply issue before replacement |
| Display flickers or dims | Backlight aging | ✅ Medium | Observe brightness over time | Replace if the backlight is clearly degrading |
| Project will not load | Firmware or application mismatch | ✅ Medium | Compare behavior after reloading the project | Restore the application and verify the software version |
If you get stuck, send photos of the label, cutout, cable connections, and alarm log to technical support before ordering a replacement.
Frequently Asked Questions
What is ABB PP877K?
It is an ABB Panel 800 Version 6 operator panel used for HMI-based monitoring and control. ABB hardware documentation identifies the PP877K family as part of the Panel 800 Version 6 lineup.
Is 3BSE069274R1 the same as ?
Yes, that is the ordering information tied to the listing. Match the installed label before buying a replacement.
What size is the screen?
Market listings identify it as a 10.4-inch HMI panel.
Can I use another Panel 800 version instead?
Not without checking cutout, software version, and exact model compatibility. A close-looking panel can still fail on fit or project load.
Is it hot-swappable?
No. Power down the panel circuit and verify safe voltage before removal or installation.
Why is it sold as surplus or used?
Because this is a legacy ABB operator panel and most market supply comes from unused inventory, pulled equipment, or reseller stock rather than current factory production.
What should I check before ordering?
Match the full part number, display size, Panel 800 Version 6 compatibility, and the cabinet cutout. That saves the most time on a panel swap.
