ABB RDCU-02C Industrial Drive Controller

Description

Key Technical Specifications

The RDCU-02C contains the RMIO motor control and I/O board and supports optional communication and I/O expansion modules. It communicates with inverter modules through optical fiber.

Product Introduction & Supply Chain Strategy

The ABB RDCU-02C is the dedicated drive control unit used in ABB ACS800 high-power AC drive systems. It houses the RMIO control board, manages motor control functions, supervises drive operation, processes I/O signals, and communicates with inverter modules through fiber optic interfaces.

Because the RDCU-02C is the primary controller of the drive system, its failure can stop an entire production line. Maintaining New Original / New Surplus inventory reduces lead time variability, minimizes emergency procurement costs, and improves Total Cost of Ownership (TCO). For plants operating legacy ACS800 drives, keeping one or two spare units on-site is a recommended lifecycle strategy.

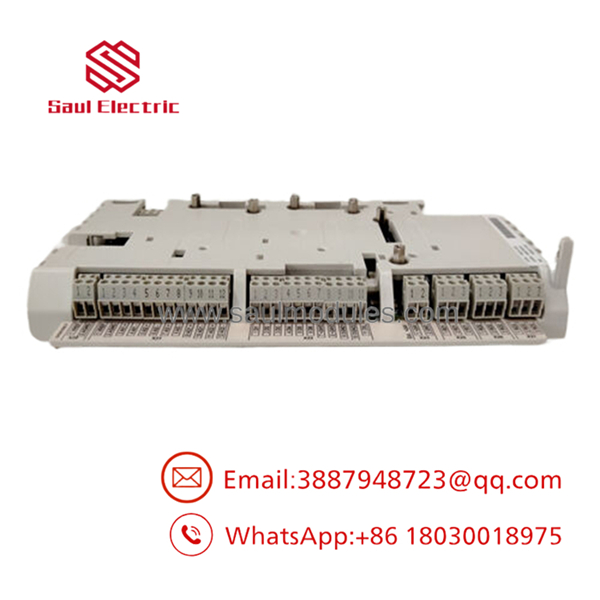

RDCU-02C

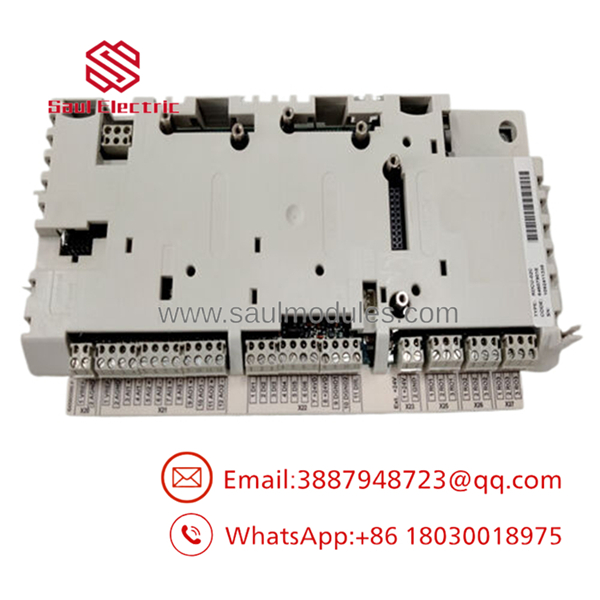

RDCU-02C

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Apply Lock-Out/Tag-Out procedures.
2. Disconnect the incoming drive power.
3. Wait at least 5 minutes for the DC bus capacitors to discharge.
4. Wear a grounded ESD wrist strap.
5. Record:
   • Drive firmware version
   • Parameter backup
   • Optional communication modules
   • Fiber optic routing
6. Photograph all wiring and connector locations before removal.

Stage 2 – Removal

1. Verify zero voltage before touching the control cabinet.
2. Disconnect the 24 V DC supply.
3. Remove fiber optic communication cables carefully.
4. Disconnect removable I/O terminal blocks.
5. Remove optional communication modules if installed.
6. Release the DIN rail latch and remove the .

Stage 3 – Installation (Clone & Seat)

1. Verify the replacement hardware revision and programmed version.
2. Mount the securely on the DIN rail.
3. Reinstall all optional modules.
4. Restore fiber optic connections exactly as recorded.
5. Reconnect removable I/O terminals.
6. Confirm all connectors are fully seated.

Stage 4 – Power-On & Testing

1. Restore the 24 V DC control supply.
2. Energize the drive.
3. Verify RUN and status LEDs.
4. Confirm communication with the inverter module.
5. Download or verify drive parameters if required.
6. Test motor operation at low speed before returning the equipment to production.

Firmware/Software Versions & Upgrade Notes

• The is available in multiple programmed hardware and firmware revisions. Always verify the installed firmware before replacement.
• Back up all drive parameters before replacing the control unit.
• Match firmware with the existing ACS800 application software.
• Avoid firmware upgrades during emergency maintenance unless required by ABB documentation.
• Confirm compatibility of installed option boards (such as RDCO communication modules and fieldbus adapters) after replacement.

Frequently Asked Questions (FAQ)

1. Is this a genuine ABB product?

Yes. This unit is supplied as New Original / New Surplus. It is not refurbished, repaired, or removed from a decommissioned drive.

2. Why is New Surplus priced higher than refurbished units?

New Surplus offers unused OEM quality, original component life expectancy, and greater reliability. Refurbished control units may contain aged electronic components that increase the risk of unexpected drive failures.

3. Which ABB drives use the ?

The is widely used in ABB ACS800 high-power drive systems where it functions as the main drive control unit containing the RMIO control board.

4. Can the be replaced while the drive is energized?

No. Always isolate the drive from power and allow the DC bus capacitors to discharge before servicing the control unit.

5. Will replacing the erase drive parameters?

Depending on the application, parameters may need to be restored after replacement. Always create a complete parameter backup before removing the original control unit.

6. What quality inspections are completed before shipment?

Each New Original / New Surplus typically undergoes:

• OEM part number verification
• Serial number inspection
• PCB visual inspection
• Connector integrity inspection
• ESD-safe packaging
• Functional verification where applicable

7. What warranty is typically provided?

A 12-month warranty is commonly offered for New Original / New Surplus ABB drive control units, providing dependable coverage for critical industrial maintenance applications.
