Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SAFT183VMC |
| Product Type | AC drive control board / servo drive module |
| Primary Function | Converts control commands into motor-drive actions |
| Control Modes | Torque, speed, and position modes |
| Power Level | Three-phase 380 to 480 V AC, 15 kW continuous output listed by vendor source |
| Feedback Support | Sine/cosine encoder, incremental, and absolute digital encoder |
| Communications | EtherCAT, PROFINET, Modbus TCP, CANopen |
| Safety Functions | STO, SS1, SBC |
| Mounting | DIN rail, optional flange installation |
| Protection | IP20 standard, optional IP65 cover |
| Environmental | CE, UL, cULus, IEC 61800-5-1 listed by vendor source |
Product Introduction & Supply Chain Strategy

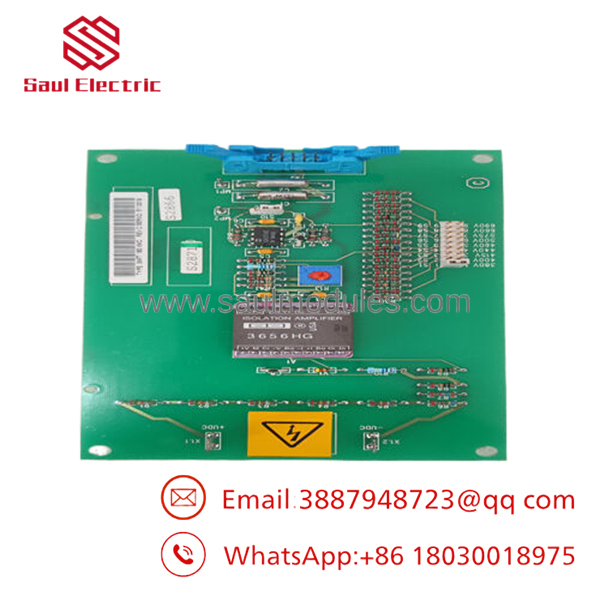

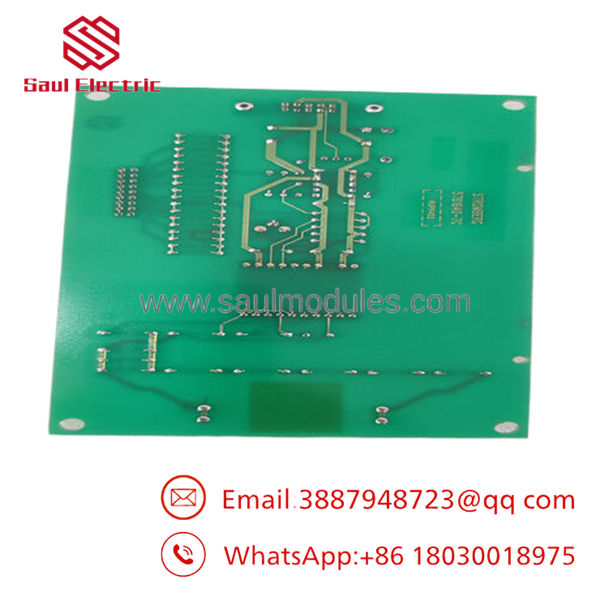

ABB SAFT183VMC is a drive control board used in industrial motion and servo applications. Vendor material describes it as a module that interfaces control systems with servo motors and supports precise motion control in single-axis and multi-axis systems.
From a supply-chain standpoint, this is a typical New Surplus candidate when the installed drive family is still in service. Hold buffer stock only if the control platform is still active, because the real risk is not just price; it is lead time variability and the downtime cost of a mismatched replacement.
Installation & Configuration Guide
Stage 1: Pre-Installation
Lock out and tag out the drive cabinet before any work begins. Use an ESD wrist strap, insulated tools, and a camera to record wiring, connector positions, and any switch or jumper settings. Confirm the exact drive model, feedback device, and control interface before removal.
Stage 2: Removal
Power down the drive unless your site procedure explicitly allows live service. Release the board evenly and pull it straight out to avoid stressing connectors or adjacent hardware. Do not twist the assembly or force it past retained cabling.
Stage 3: Installation
Replicate the original settings exactly, including feedback type, drive address, and any option-board configuration. Seat the module fully and evenly, then secure it according to the cabinet hardware sequence. Reconnect motor, feedback, and communication wiring only after verifying the terminal map.
Stage 4: Power-On & Testing
Restore power and verify the 24 V control rails and main drive supply before start-up. Check status LEDs, fault codes, and communication links, then perform a low-risk test run if permitted by the process. Confirm motor direction, feedback polarity, and safety chain status before returning to operation.
- SAFT183VMC
- SAFT183VMC
Firmware/Software Versions & Upgrade Notes
The available vendor content identifies the board as an ABB drive control module, but it does not give a single authoritative firmware revision for all SAFT183VMC variants. The safest replacement path is a like-for-like swap that preserves the original drive software baseline and parameter set.
Avoid upgrading or downgrading firmware during the swap unless the exact drive family documentation confirms compatibility. Version drift can cause parameter mismatch, communication faults, or safety-chain issues, which can be expensive to diagnose on a production machine.
Frequently Asked Questions
Is this really new?
Yes, the correct procurement position is New Surplus / Original New, not refurbished. That means traceable OEM inventory, intact packaging, and QC verification before shipment.
Why is it cheaper than OEM new but higher than refurb?
New Surplus usually comes from excess OEM inventory or controlled release stock. It prices below OEM list, but above lower-traceability inventory because it carries better risk control.
Is SAFT183VMC obsolete?
Treat it as lifecycle-sensitive until your installed drive base is confirmed. If the machine line still depends on it, strategic stocking is justified.
Can I hot-swap it?
Only if your drive cabinet and site procedure explicitly allow it. For most servo-drive boards, plan a controlled outage to avoid electrical damage or unstable startup behavior.
Will my settings stay intact?
Do not assume retention without verification. Back up the drive parameters, feedback configuration, and safety settings before removal, then confirm them after installation.
What warranty should I expect?
Warranty terms depend on the supplier and QC package. For New Surplus drive hardware, ask for serial traceability, test records, and a written warranty period tied to shipment.
