Description
Key Technical Specifications
- Product ID: 58063282A / 3AFE58063282
- Type Designation: SCYC55830
- Catalog Description: TACHO TERM.BOARD
- Country of Origin: Finland / Sweden
- Gross Weight: 0.3 kg
- Function: Tachometer signal conditioning and interface
- Compatibility: ABB ACS 5000 drives and related systems
- Connection: Supports Grey encoder LD GRB-01 and AMC-3
- Design: Terminal board for precise speed and direction monitoring
- Mounting: Backplane / rack compatible in ABB drive systems
- Signal Type: Digital / pulse input from tachogenerators
- Application: Motor control and speed feedback in industrial drives
Product Introduction & Supply Chain Strategy

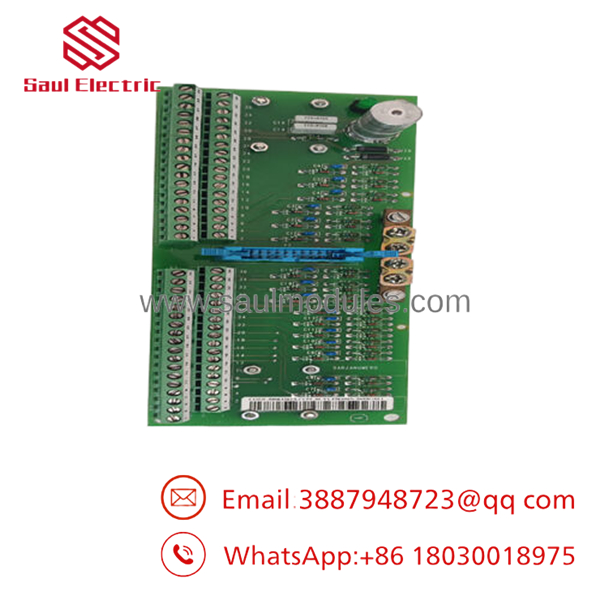

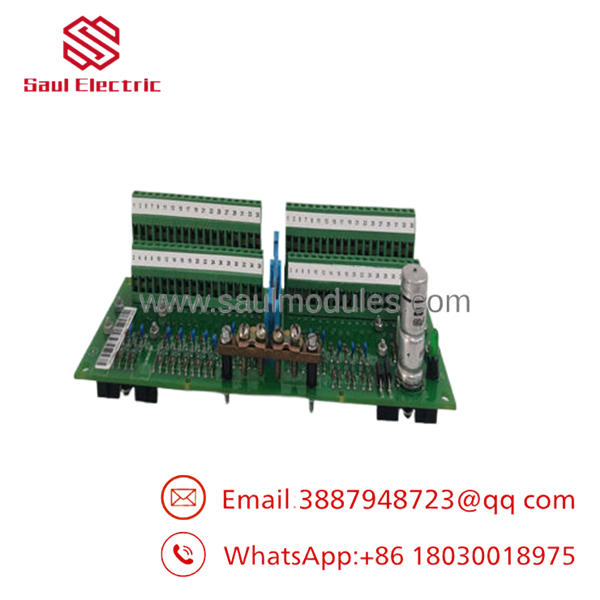

The ABB SCYC55830 58063282A is a tacho terminal board that provides the interface for connecting tachogenerators or pulse encoders to ABB drive systems. It conditions incoming speed feedback signals for accurate motor control in high-power applications such as ACS 5000 series drives used in heavy industry, pumps, fans, and conveyors.
Buying this as New Surplus delivers strong total cost of ownership benefits for plants facing EOL risks on legacy ABB drive components. It avoids the hidden failure modes common in refurbished boards, such as degraded connections or signal integrity issues that lead to unplanned downtime. Strategic stocking of 1-2 units as buffer stock protects against long lead times and vendor consolidation challenges while keeping carrying costs low compared to full OEM new pricing.
- SCYC55830 58063282A
- SCYC55830 58063282A
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out and tag-out the drive system. Gather tools including a grounded ESD wrist strap, screwdriver set, and camera. Take clear photos of the existing module’s wiring, terminal connections, and any DIP switch or jumper settings. Verify the 24V supply has adequate buffer capacity.
Stage 2: Removal Power down the system completely. Carefully extract the old board using proper handles or extraction tools to prevent bending backplane pins. Note the orientation and labeling of all connected cables.
Stage 3: Installation (Clone & Seat) Replicate the exact terminal wiring from your photos. Seat the new SCYC55830 58063282A firmly into the slot until it clicks securely. Confirm all connections match the original configuration.
Stage 4: Power-On & Testing Restore power and check 24V rails for shorts. Monitor LEDs for normal operation (RUN status). Verify tachometer signal feedback through the drive diagnostics. Download or confirm logic parameters if required by the system.
Firmware/Software Versions & Upgrade Notes This tacho terminal board does not contain user-upgradable firmware but relies on the host drive controller firmware for signal processing. Use the firmware version currently running on your ABB ACS 5000 or compatible drive controller.
V3.x series firmware maintains compatibility with this terminal board; avoid mixing with very legacy versions that lack support for modern encoder interfaces. Document your current firmware before any hardware swap. Upgrading the drive firmware after board replacement can improve signal handling but requires full system testing to prevent speed feedback timeouts. Downgrading carries higher risks of incompatibility.
Frequently Asked Questions (FAQ)
Is this SCYC55830 58063282A really new? Yes. This is genuine New Surplus stock — original ABB manufacturing, never installed or used in a plant, and verified through our QC process. It ships in original anti-static packaging.
Why is the price higher than refurbished options but lower than OEM new? Our pricing covers global sourcing of authentic unused inventory while eliminating the risks of refurbished parts. You get full expected service life and a 1 year warranty versus short-term refurbished coverage.
What if this part is obsolete for my ACS 5000 system? It is an EOL item for many legacy setups. We recommend keeping 1-2 units on-site as insurance. Our last-time-buy approach helps you avoid future stock-outs when ABB discontinues support.
Can I hot-swap this terminal board? Generally not recommended. Perform the replacement with the drive powered down to protect backplane pins and ensure signal integrity. Follow lock-out/tag-out procedures.
Does it come with a warranty? Yes. We provide a solid 1-2 year warranty on this New Surplus unit, backed by our functional test reports and serial number traceability.
Will this board work with my existing tachometer setup? It supports standard ABB tachogenerator and pulse encoder connections like the Grey encoder LD GRB-01. Confirm your drive configuration matches the requirements before ordering.
How do you ensure quality on these boards? Each unit undergoes inbound serial verification, live functional testing in a simulated rack environment, electrical checks, and final ESD-safe packaging with inspector sign-off.
